FAQ
Aide pour les caméras IP (modèles G2 à partir de 09/2023)

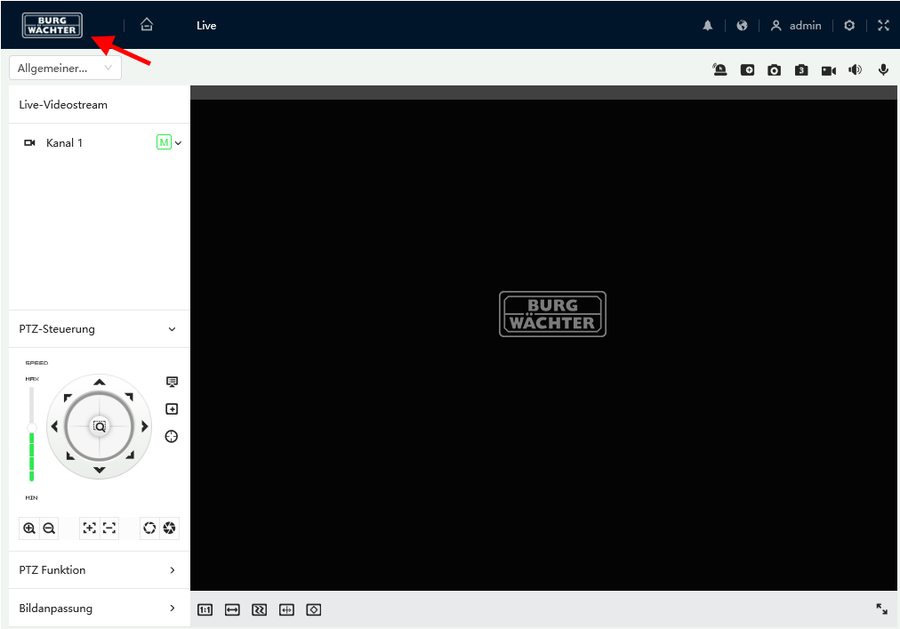

Um schnell auf die wichtigsten Funktionen des Gerätes
zuzugreifen klicken Sie auf das BURG-WÄCHTER Logo oben links. In diesem Menü
finden Sie die wichtigsten Netzwerk-, P2P-, Stream-, Bild- und
Zeiteinstellungen.
Aide pour les caméras IP (anciens modèles)
Video
Einbindung in andere Gewerke
Syntax
rtsp://<username>:<password>@<ip>:<port>/cam/realmonitor?channel=<ChannelNo>&subtype=<typeNo>
Description
Get real-time media stream.
Example
We request the extra stream 1 of channel 1, the URL is:
rtsp://admin:password@192.168.0.100:554/cam/realmonitor?channel=1&subtype=1
Success Return
media stream data
Comment
<username>: a valid user’s username.
<password>: user’s password.
< ip>: the IP address of the video product.
<port >: the default port is 554. It can be omitted.
<ChannelNo>: integer, the video channel index which starts from 1.
<typeNo>: the stream type. The <typeNo> of main stream is 0, extra stream 1 is 1, extra stream 2 is 2. The extra stream counts can be obtained in GetMaxExtraStreamCounts. If the stream does not exist or not enabled, response will be error.
The IP Camera supports both TCP and UDP transmission forms.
It also supplies basic authentication and digest authentication ways. The authentication process is similar with Authentication. Please check the cameras security settings.
Syntax
http://<ip>:<port>/cgi-bin/mjpg/video.cgi?subtype=<typeNo>
Description
Get MJPEG media stream.
Example
We request the extra stream 1, the URL is:
http://192.168.178.126/cgi-bin/mjpg/video.cgi?subtype=1
We request the main stream, the URL is:
http://192.168.178.126/cgi-bin/mjpg/video.cgi
NOTE: CHECK IF YOUR CAMERA SUPPORTS MJPEG ON THE REQUESTED STREAM BEFORE
Success Return
media stream data
Comment
< ip>: the IP address of the video product.
<port >: the default port is 554. It can be omitted.
<typeNo>: the stream type. The <typeNo> of main stream is 0, extra stream 1 is 1, extra stream 2 is 2. The extra stream counts can be obtained in GetMaxExtraStreamCounts. If the stream does not exist or not enabled, response will be error.
Syntax
http://<ip>:<port>/cgi-bin/snapshot.cgi?channel=1
Description
Get Snapshot
Comment
< ip>: the IP address of the video product.
<port >: the default port is 554. It can be omitted.
Weitere Fragen
Beispielkonfiguration der IVA "Zonenüberwachung"und "Stolperdraht"
Video:
Intelligente Videoanalyse
Beispielkonfiguration der IVA "Zonenüberwachung"und "Stolperdraht"
Port forwarding am Beispiel einer Fritz-Box
Nous décrivons ici comment, par exemple, une caméra CVI ou une caméra analogique connectée à un enregistreur SPVR peut être intégrée à un enregistreur réseau via un flux RTSP.
Instructions :
Intégrer des flux RTSPdans un enregistreur
Hier wird gezeigt, wie Sie eine SANTEC IP Kamera via SMB und NFS Protokoll in einen NAS einbinden.
Les modèles d'autres fabricants ne peuvent être intégrés aux enregistreurs Uniview que par le biais du protocole ONVIF.
Nous montrons ici ce à quoi il faut faire attention avec les appareils Axis.
Vidéo de présentation :
Intégration d'appareils Axis avec UNV
Le SNVR Rekoder est en mesure de désentraver (égaliser) un flux d'une caméra fisheye à la fois. Si l'on souhaite représenter plusieurs caméras fisheye en même temps, ce flux doit déjà être fourni par la caméra (Frontend Dewarping). Nous expliquons dans cette vidéo comment régler correctement ce paramètre et ce à quoi il faut faire attention. Nous montrons également la représentation dans l'application BurgCam.
Vidéo de présentation :
Plusieurs caméras fisheye sur l'enregistreur SNVR
Voici de brèves instructions sur la manière de réinitialiser le SNC-431FEIF aux réglages d'usine.
Instructions :
Reset SNC-431FEIF
Speichern via FTP auf der Fritzbox
Video:
Fritzbox als FTP Server
Assurez-vous que les étapes suivantes ont été effectuées après la mise à jour de l'appareil :
1)
L'appareil a été réinitialisé aux paramètres d'usine.
2)
L'assistant de configuration sur le moniteur (HDMI/VGA) a été exécuté.
3)
Les notifications push dans les smartphones ont été désactivées une fois puis réactivées
pour que les smartphones se connectent à nouveau au NVR
et s'abonnent aux messages d'événements.
