Network Cameras-IP Thermal Cameras | BWWC-242REIF

BWWC-242REIF

Discount group: X SKU: 4056843043236

Version:

Version
Material number
504323
Packaging units
1
Type
IP-Wärmebildkamera
Max. Image resolution [pixels]
2336 × 1752 (4MP)
Edge recording
Ja
Imaging sensor
4MP
Light sensitivity [lux]
0,05lx (Farbe) 0,005lx (S/W), 0lx (IR)
Aperture
F1.8
Video codec
H.265(H)/H.264(B,M,H)/MJPEG
Viewing angle vertical
37,8° (Thermal)
Viewing angle (horizontal)
50.6° (Thermal)
Image sensor (real image)
progressive scan CMOS
Low Light Sensor
Yes
Shutter
1/1 - 1/30.000
IR cut filter
Yes
Aperture control
fix
Max. Frame rate
25
Bit rates control
CBRVBR
Title overlay
Ja
Image mirroring vertical
Yes
Image mirroring horizontal
Yes
Zoom (optical / digital)
1x / 16x
Lens type
Fixed focal length
Lens Focal length
3,5mm (Thermal) / 4mm (Real)
D-O-R-I max.
146m - 38m -19m (Thermal)
Minimum object distance
0,7m
I/O switching contacts
1/1
Audio inputs/outputs
1 / 1
Integrated loudspeaker
Yes
Ethernet standards
10Base-TX/100Base-TX
PoE (Power over Ethernet)
IEEE802.3af
Max. Power consumption (watts)
12
Control interface
RJ-45
Spotlight range [m]
35
LED wavelength
850 nm
Headlight range
35
Headlight dimming
Yes
Day/night changeover
Yes
Noise reduction
2DNR3DNR
Translation missing: en.technical_info_table.products.verstärkungsregelung
Yes
Private zones
Ja, 4 Zonen
Region of Interest (ROI)
4 Zonen
Backlight compensation
BLCHLCSSAWDR
Translation missing: en.technical_info_table.products.autotracking
No
Safety functions
HTTPS, SSL, IP Filter, Funktionsbeschränkungen
Alarm management
HTTP, FTP, SMTP, ONVIF
Translation missing: en.technical_info_table.products.unterstützebrowser
Internet Explorer 11, EDGE und weitere
Bewegungserkenunng
Yes
Motion detection
Yes
Audio detection (IVA)
Yes
Video analysis (IVA)
diverse
Tripwire (IVA)
Yes
Zone monitoring (IVA)
Yes
People counting (IVA)
Yes
Persons in the area (census) (IVA)
Yes
Temperature measurement
No
Temp sensitivity
< 50 mK (@f/1.0, 25Hz, 300K) (NETD)
Thermal image resolution
256 × 192 (Sensor)
Image Fusion
Yes
Fire detection
Yes
Smoker detection (person/cigarette)
Yes
autom. calibration
Ja
Supported software
BURGvms und weitere
Supported protocols
HTTP,TCP,NTP,IPv4,IPv6,DHCP,TELNET, ONVIF, FTP
Supported software
ONVIF, PSIA, CGI
P2P support
Yes, BURGcloud
smartphone app
BURGcam PRO
Cloud service
Yes
Mounting type
Wand-, Decken- und Mastmontage
Protection classes
IP 67
Operating voltage
=12 Vdc, PoE (.af)
Operating temperature
-30°C - 60°C
Housing type
Metall
Manual language
DE, EN
SD card slot
Ja, max. 256GB (optional)
Packaging units
1
Active image elements
2336 × 1752
White balance
ATW
Housing colour
Weiß
Housing design
Metall / Kunststoff
Plug type
5.5mm Hohlstecker (Spannung DC); RJ-45 (Netzwerk)
Weight
1,4Kg
Relative humidity
Bis 95, nicht kondensierend
Lieferumfang
Kurzanleitung
Special features
Hybrid Wärmebild + Realbild Sensor
Note
Eine SD-Karte ist nicht im Lieferumfang enthalten. Die Reichweite der IR- Strahler ist stark abhängig vom Einsatzort und von der Umgebung. Stark absorbierende Flächen, wie z.B. dunkle raue Strukturen (Boden, Rasen, Asphalt) können zu einer deutlichen Verringerung der maximalen Reichweite führen.
Marking
CE

Properties | Recommendations for use

pictogram-1 pictogram-2 pictogram-3 pictogram-4 pictogram-5 pictogram-6 pictogram-7 pictogram-8 pictogram-9 pictogram-10 pictogram-11 pictogram-12

Accessories and spare parts

4056843810012
SNPS-12D2
40568438205544056843820554
SNCA-PM-4661
4056843810265
BWps-DC12V2A-UP

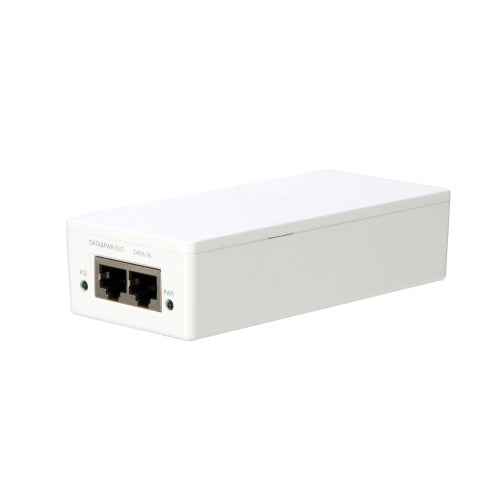

4056843810234
