Tresore-Möbeltresore-MTD Diplomat
MTD 740 E FP

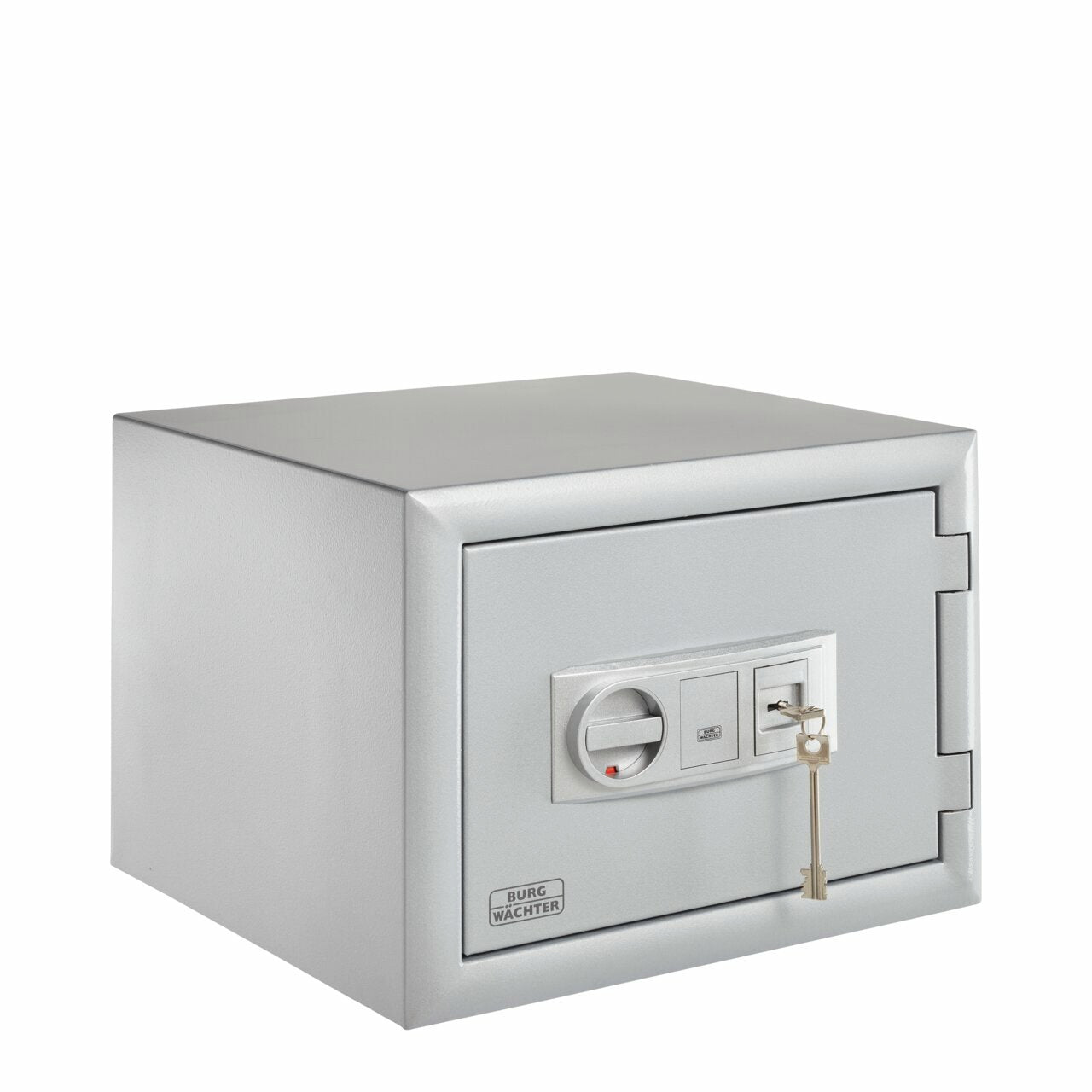

MTD 740 K
MTD 750 E FP
MTD 750 K
MTD 760 E FP
MTD 760 K
MTD 780 E FP
MTD 780 K
MTD 740 E FP
Discount group: SKU: 4003482414408
Locking system:
Locking system
Volume:
Volume
Quantity:
pc
Value protection cabinet Diplomat MTD for high demands
Protection against theft combined with protection against fire and heat. The safes of the Diplomat series from BURG-WÄCHTER provide double protection. This makes them the ideal place for your valuables! Because the Diplomat valuables safe with resistance grade I is type-tested, monitored by the ECB-S/VdS and burglary protection certified according to EN 1143-1.Fire protection for at least one hour
Your documents are protected from fire and heat in the Diplomat for at least one hour. This is exactly what the certified fire protection according to EN 15659 guarantees. For this purpose, our developers have provided the wall with a reinforced special fire insulation. Furthermore, a special thermal insulation is installed so that the temperature inside only rises slowly in the event of a fire.The Diplomat - For your safety
- Resistance grade I
- Certified burglary protection according to EN 1143-1
- Certified fire protection according to EN 15659 (as of 2009)
- Fire resistance LFS 60 P: 60 minutes fire protection for paper
Diplomat security cabinet: Highest quality with resistance grade I

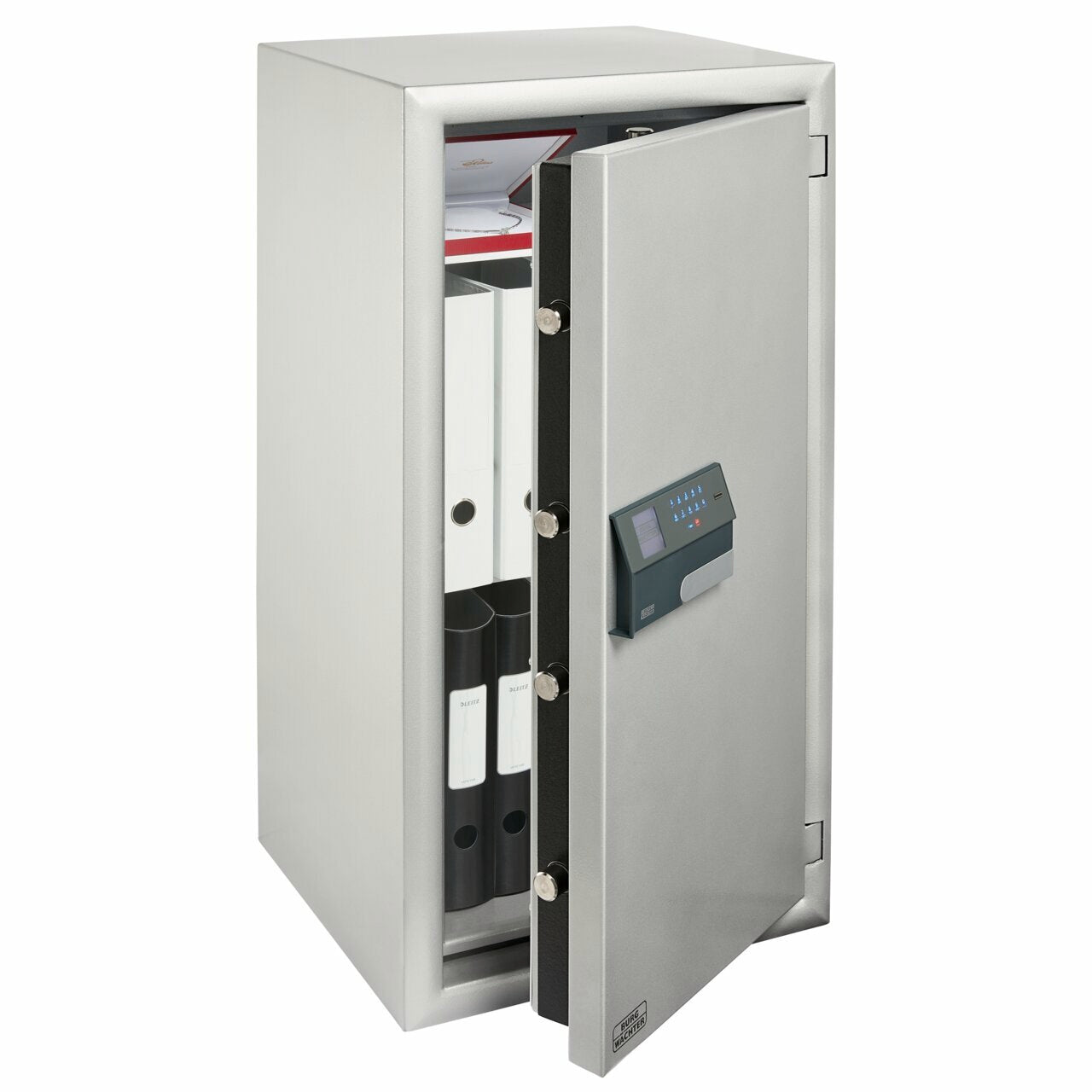

The Diplomat safe owes its enormous resistance to a three-walled corpus. Furthermore, the safe door scores with a four-walled construction. The four-sided locking with extra strong round bolts ensures a high level of burglary protection. Another plus are the emergency locks with two non-resettable systems. All components add up to an ideal complete security package!MTD Diplomat safe in four sizes and two locking systems

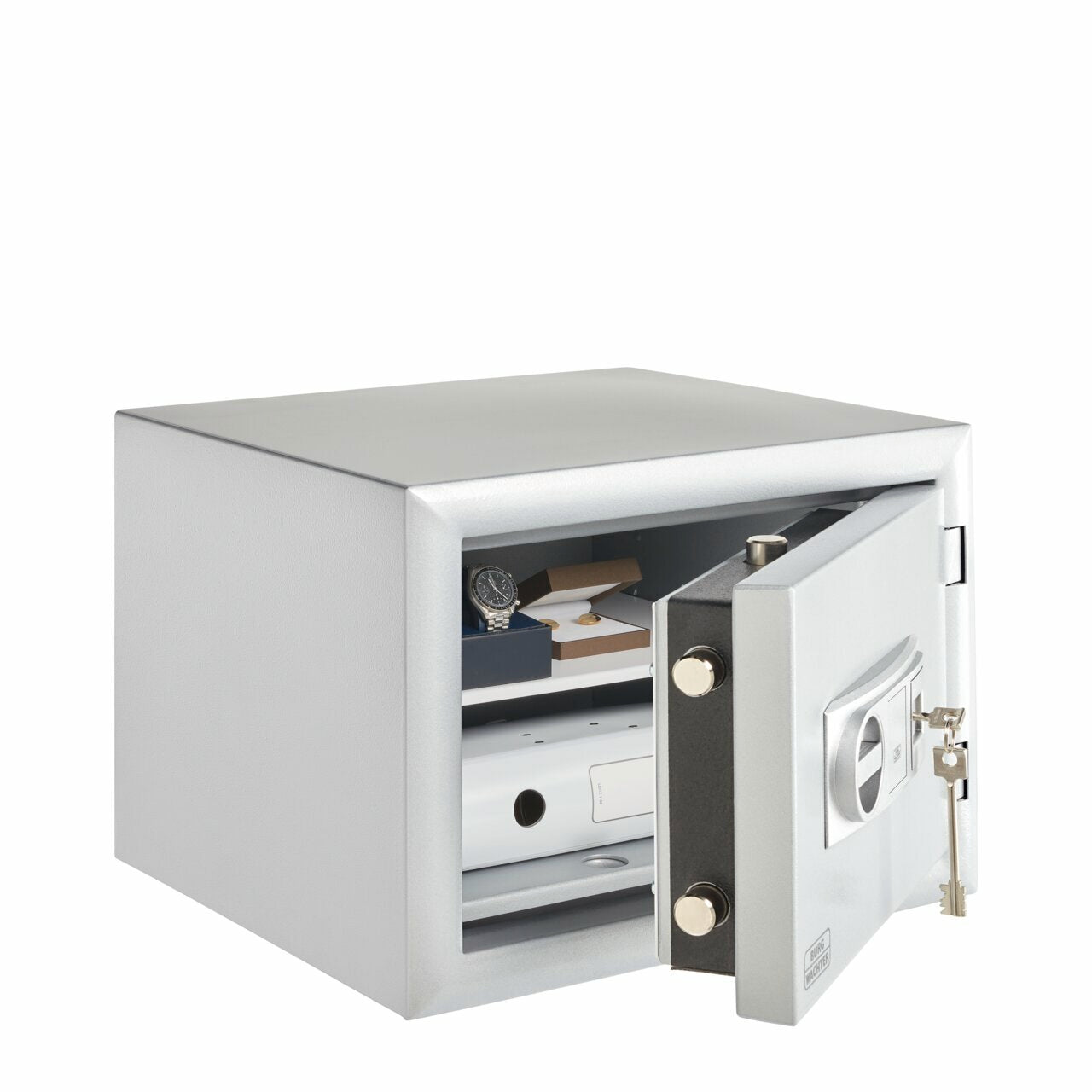

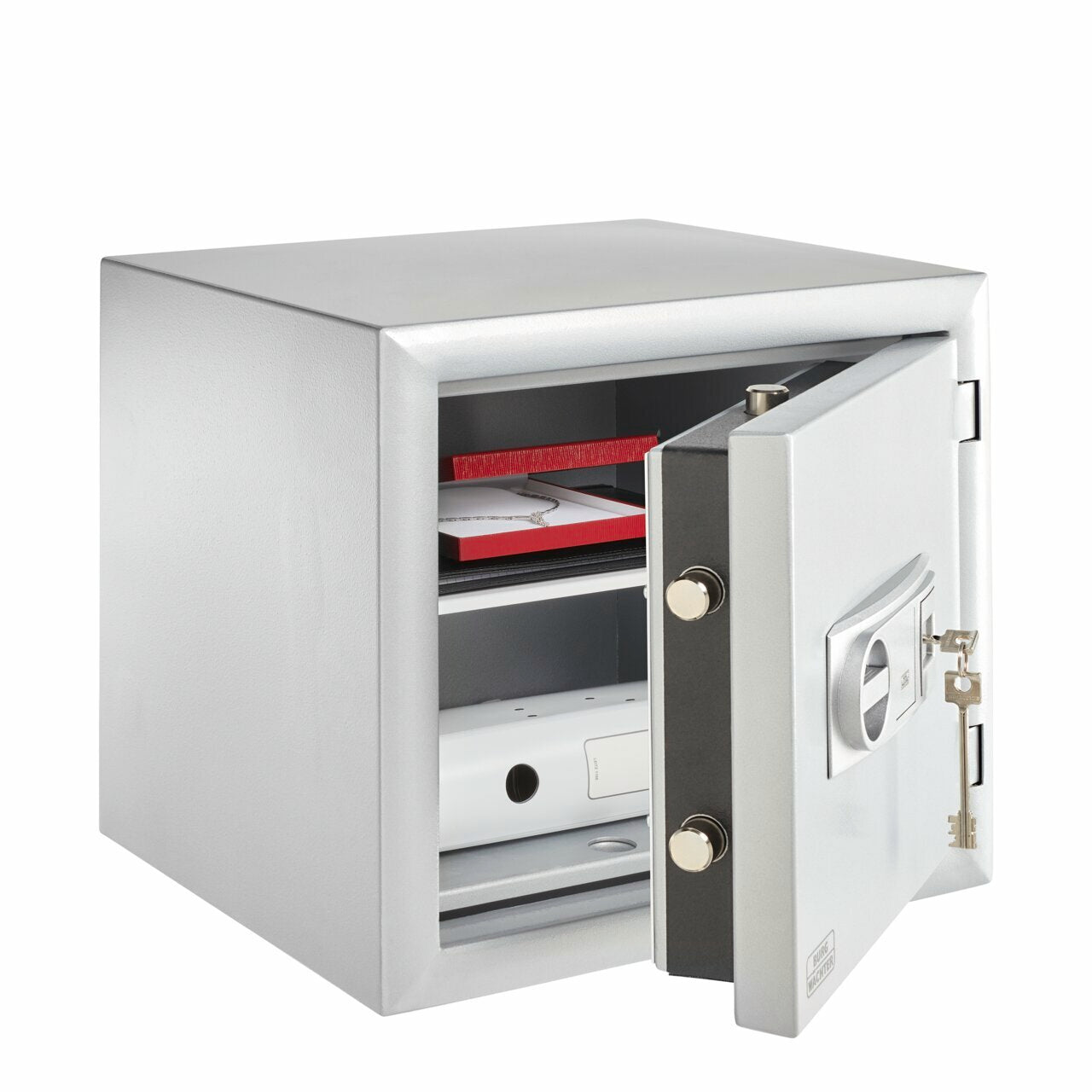

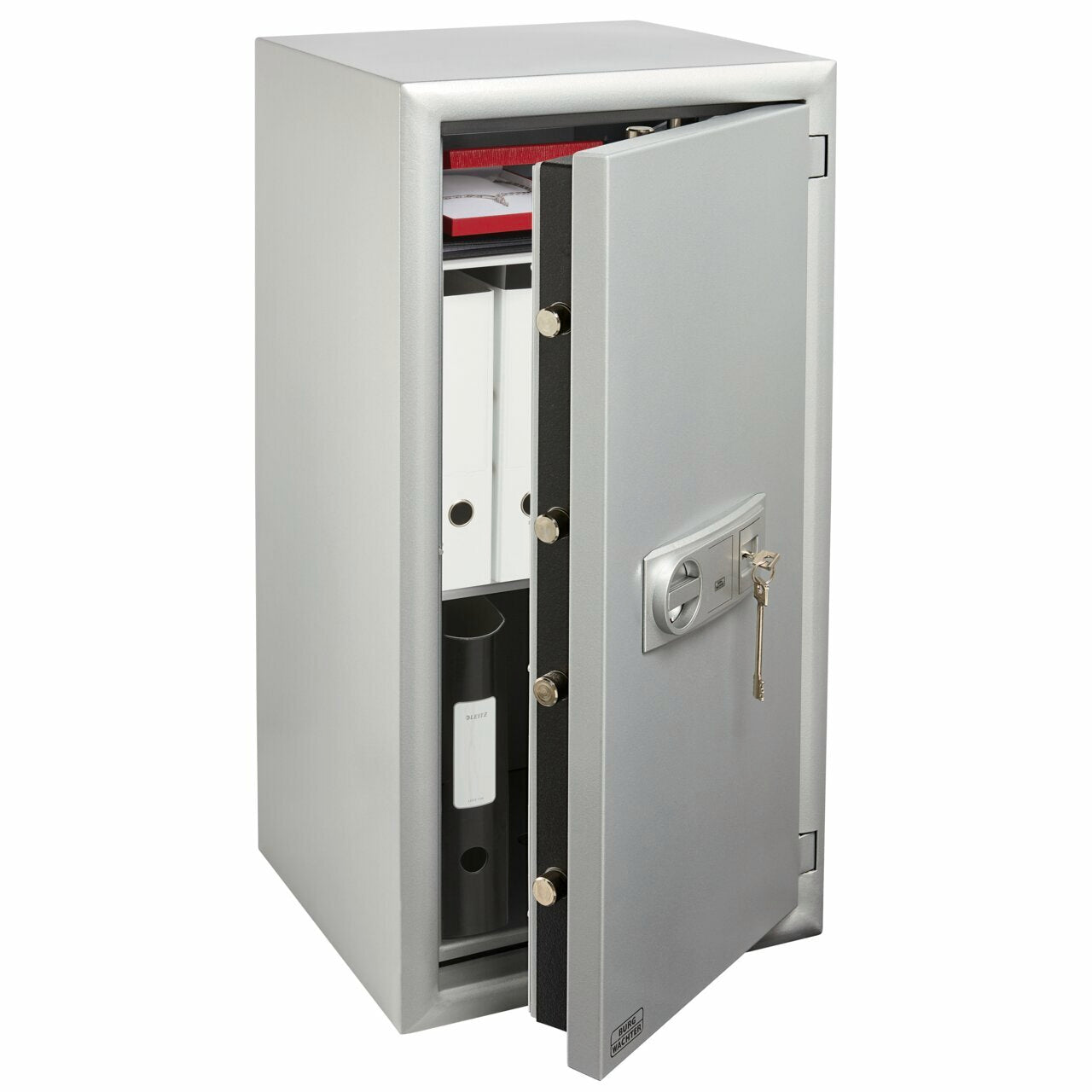

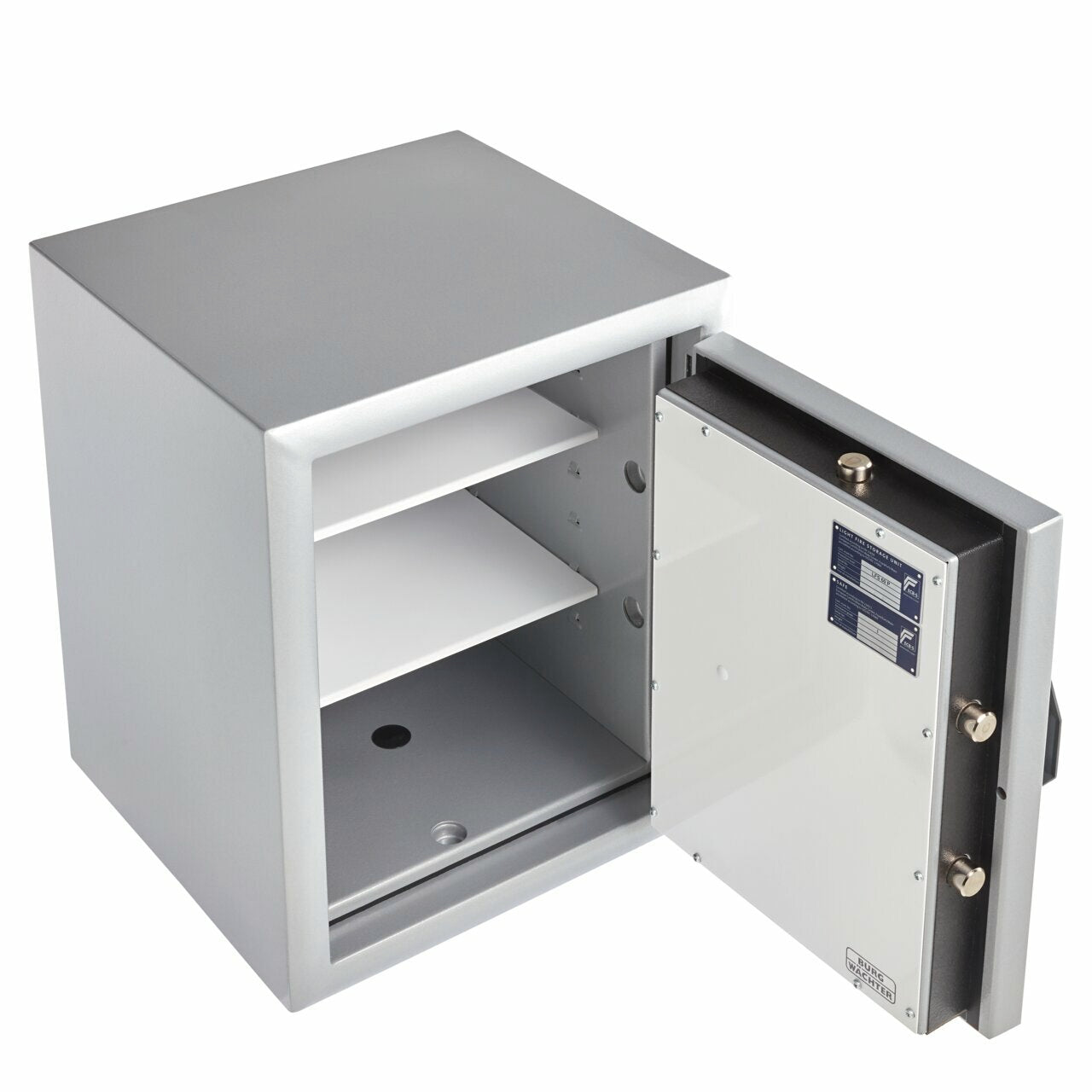

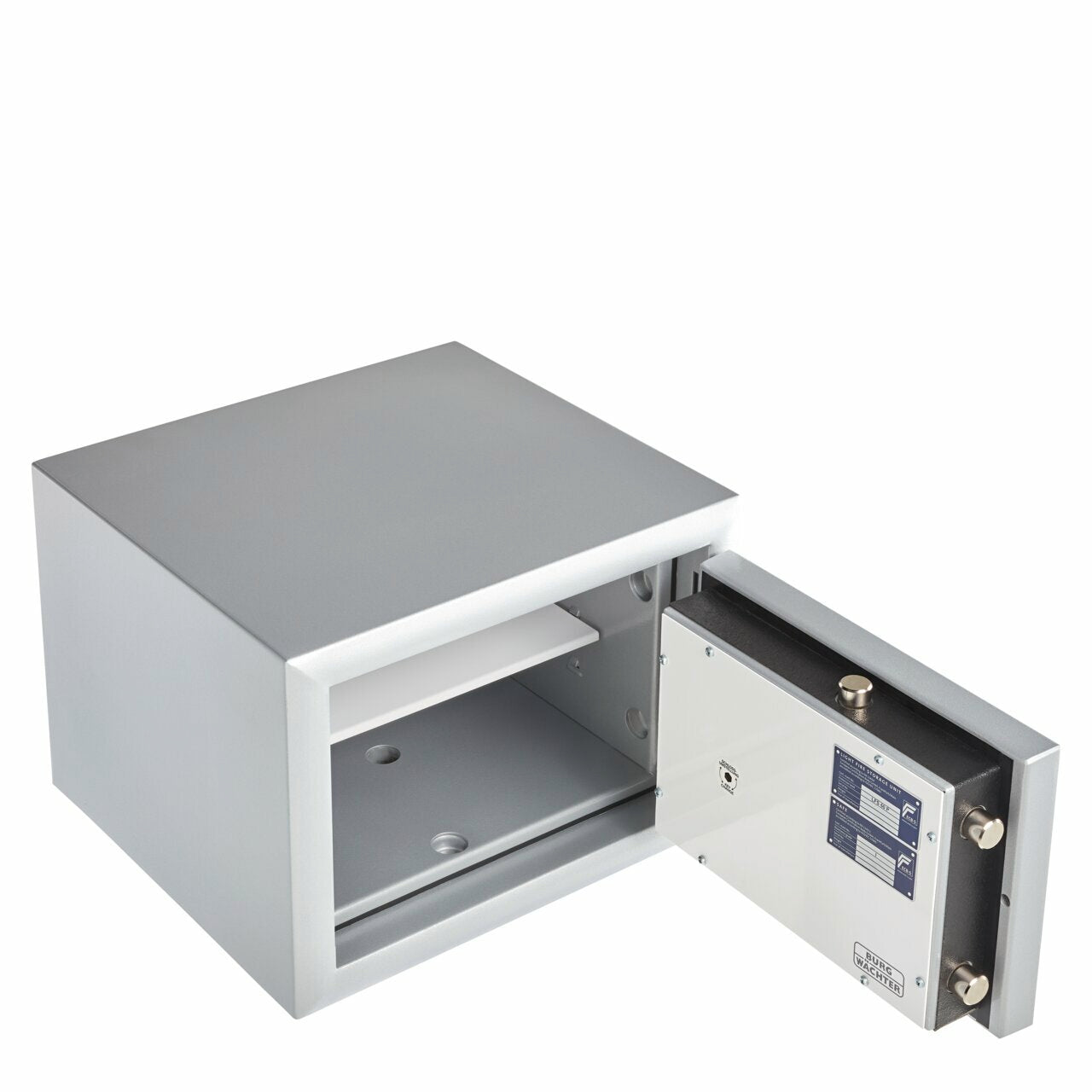

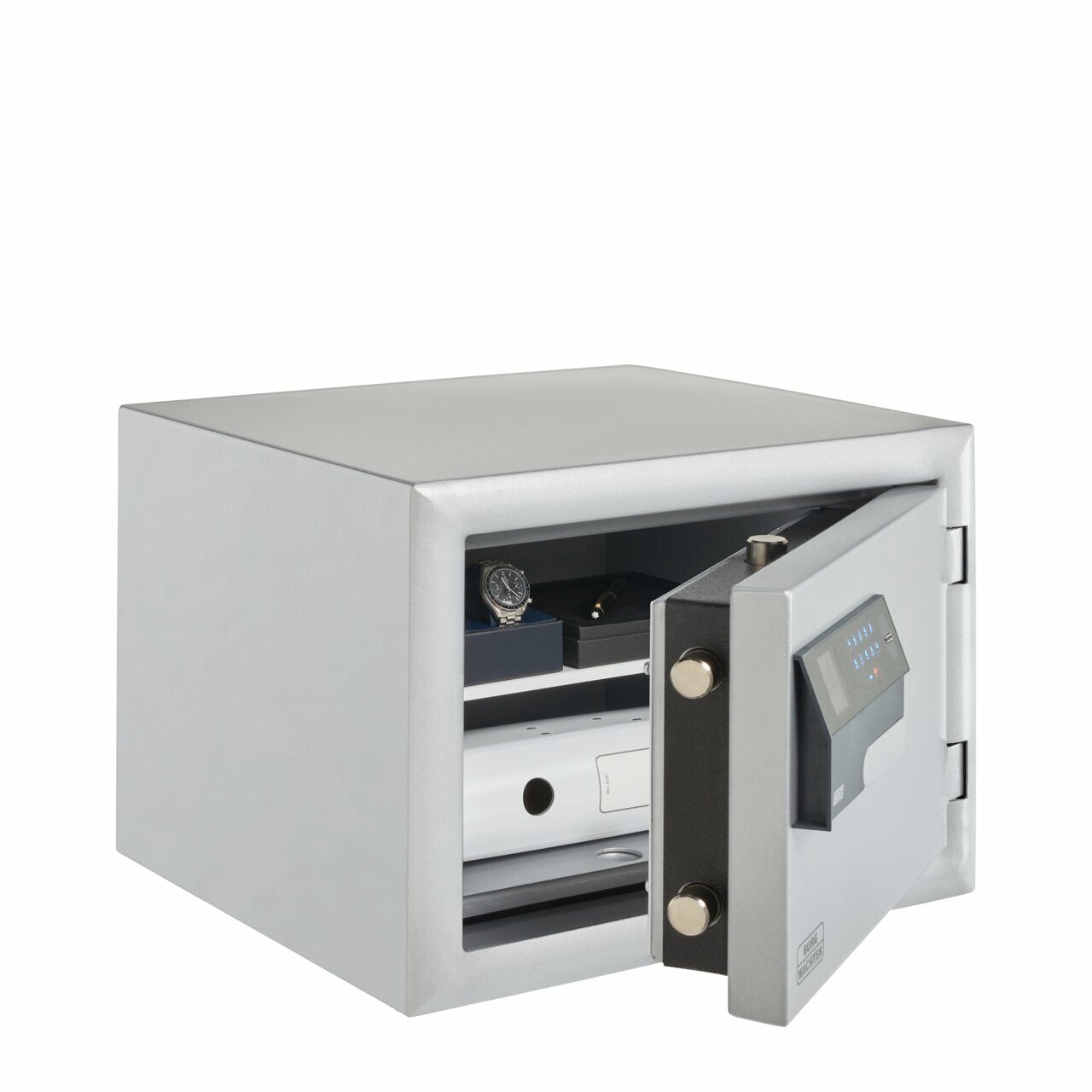

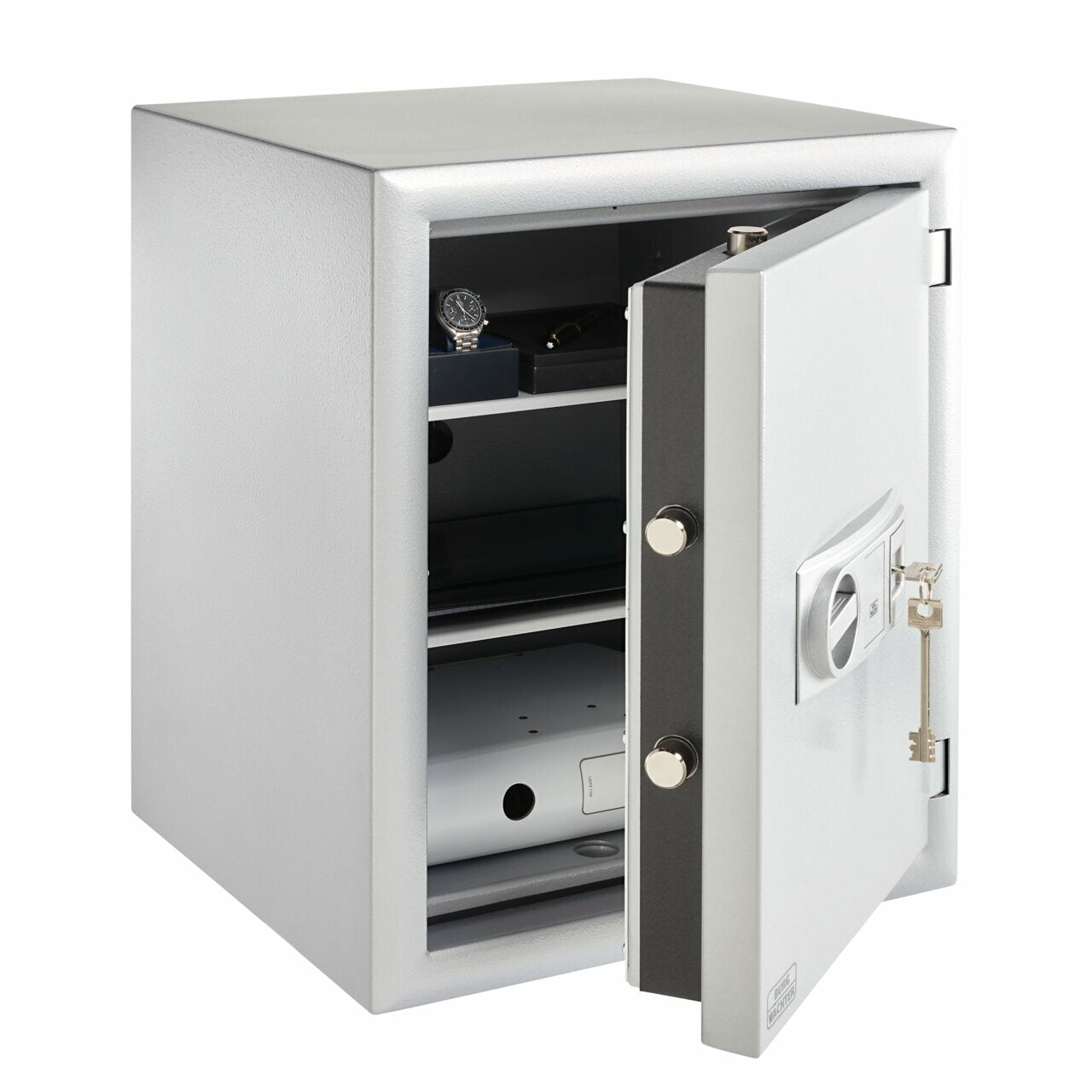

To ensure that valuables are properly organised, one (MTD 740 and MTD 750) or two adjustable shelves (MTD 760 and MTD 780) keep things tidy, depending on the model. The safe models in four sizes are available with two locking systems. Of course with the classic key (K models). Or the modern electronic locking system "SecuTronic" (E FP models) for opening by code and fingerprint. The high-security double-bit lock "SecuSafe" offers a convenient extra. Because if you lose a key, you can simply order a new set of keys and change the lock to the new keys.New electronics "SecuTronic" scores with convenience and security

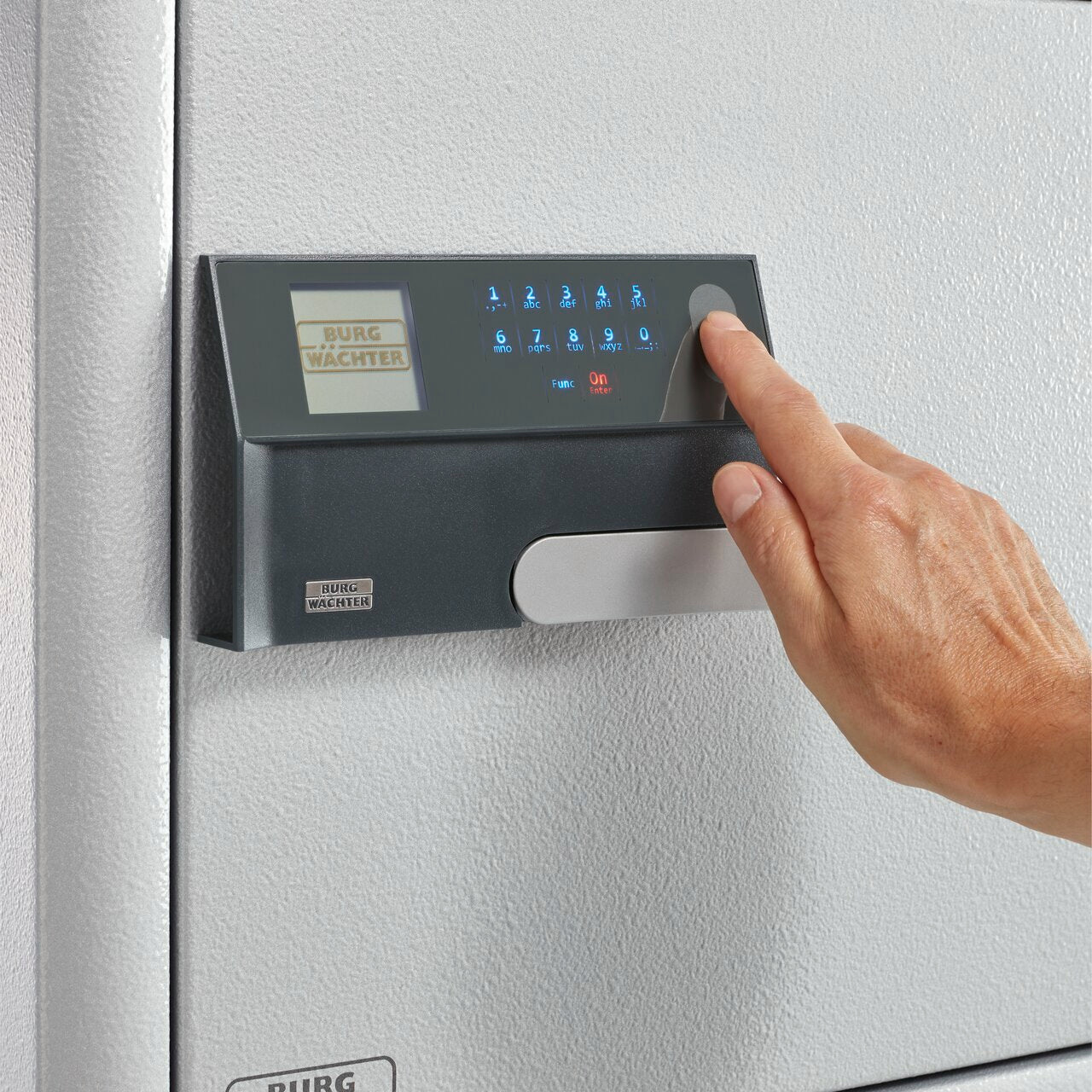

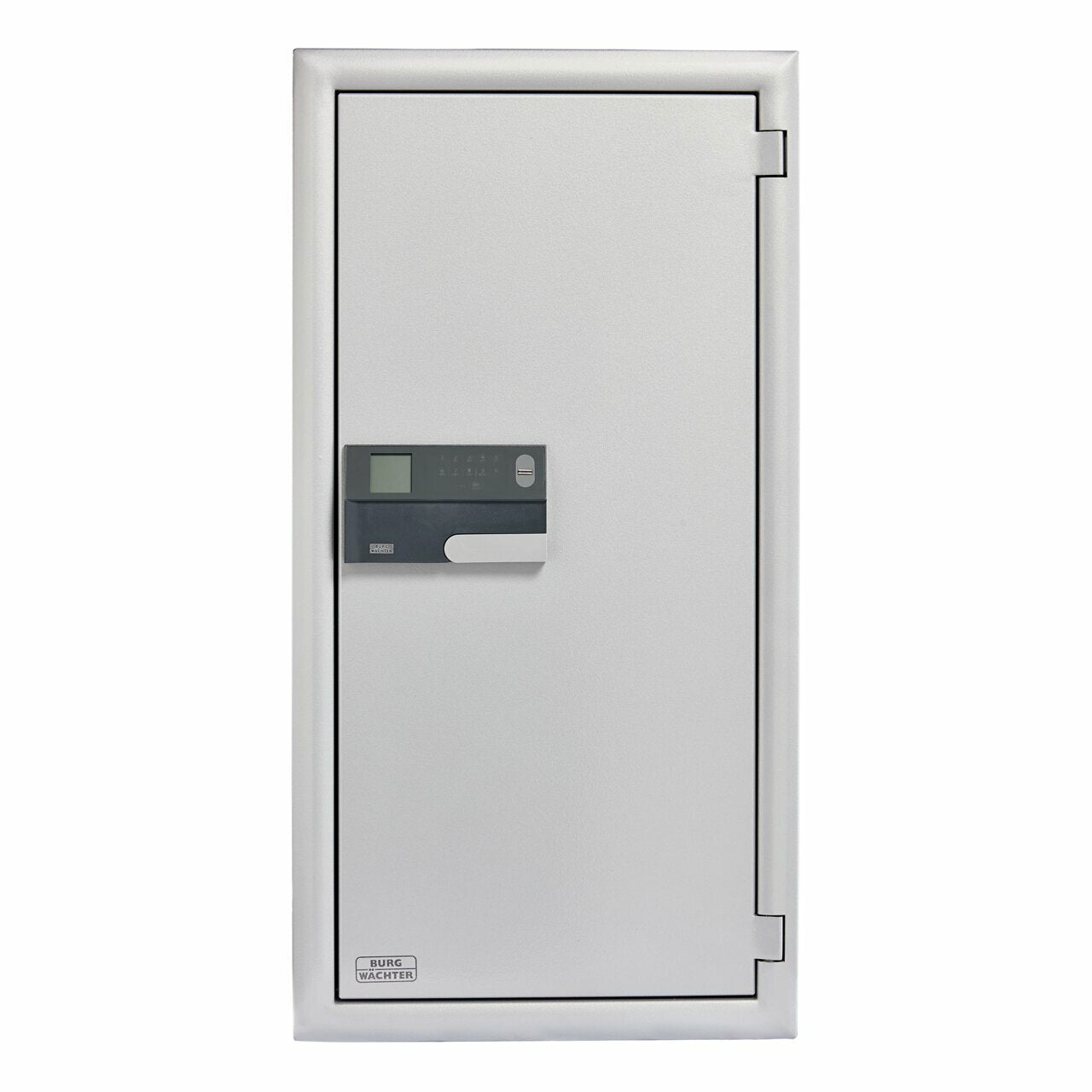

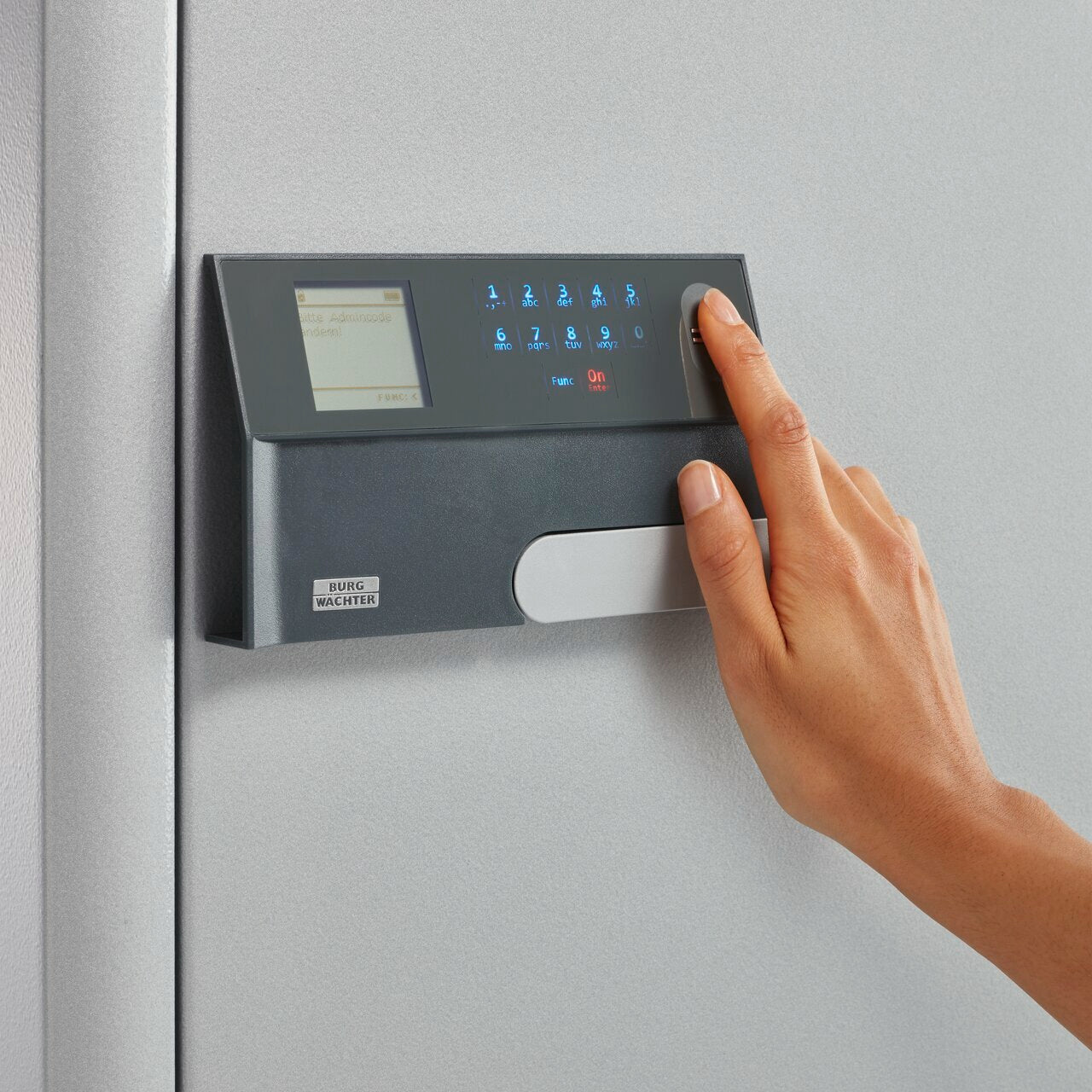

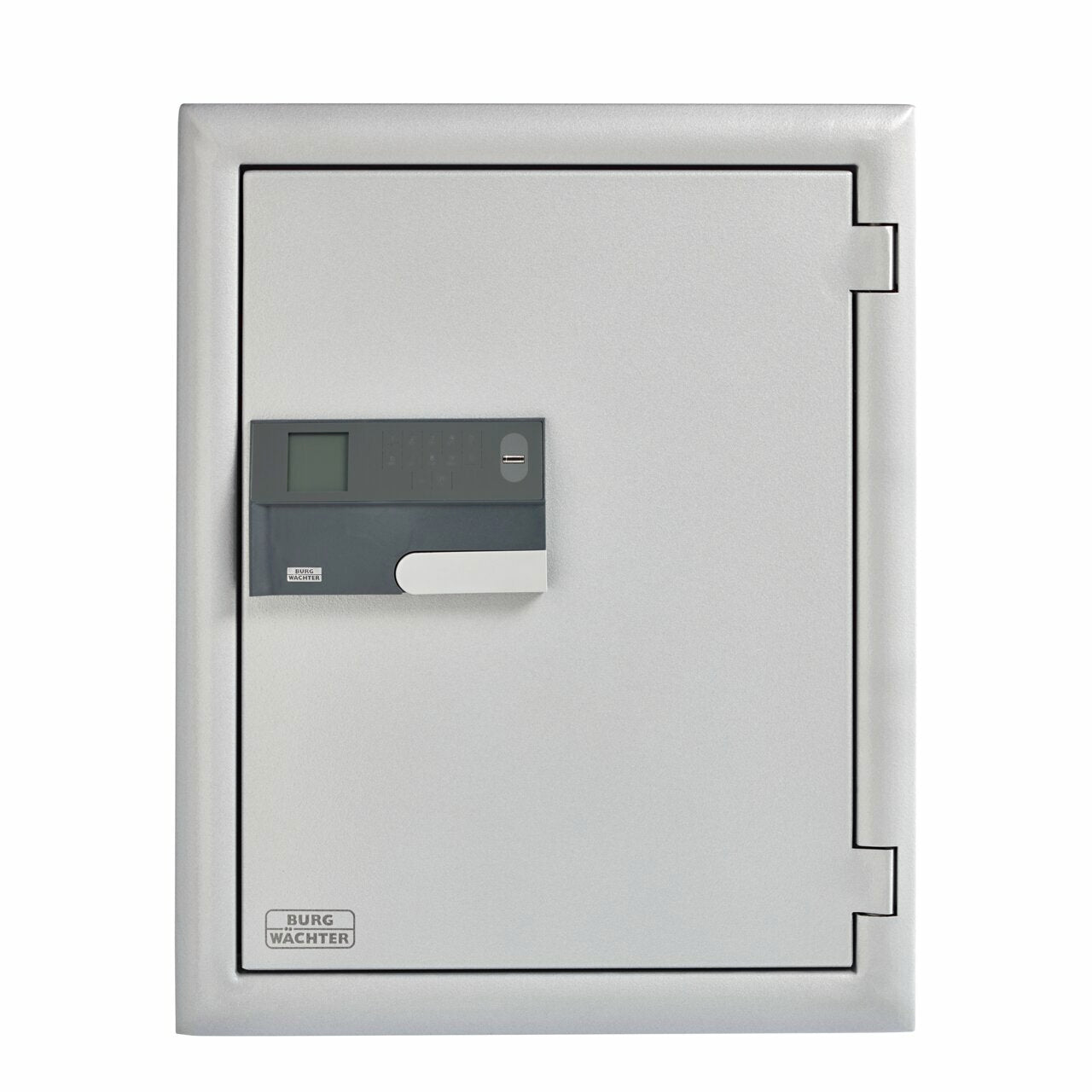

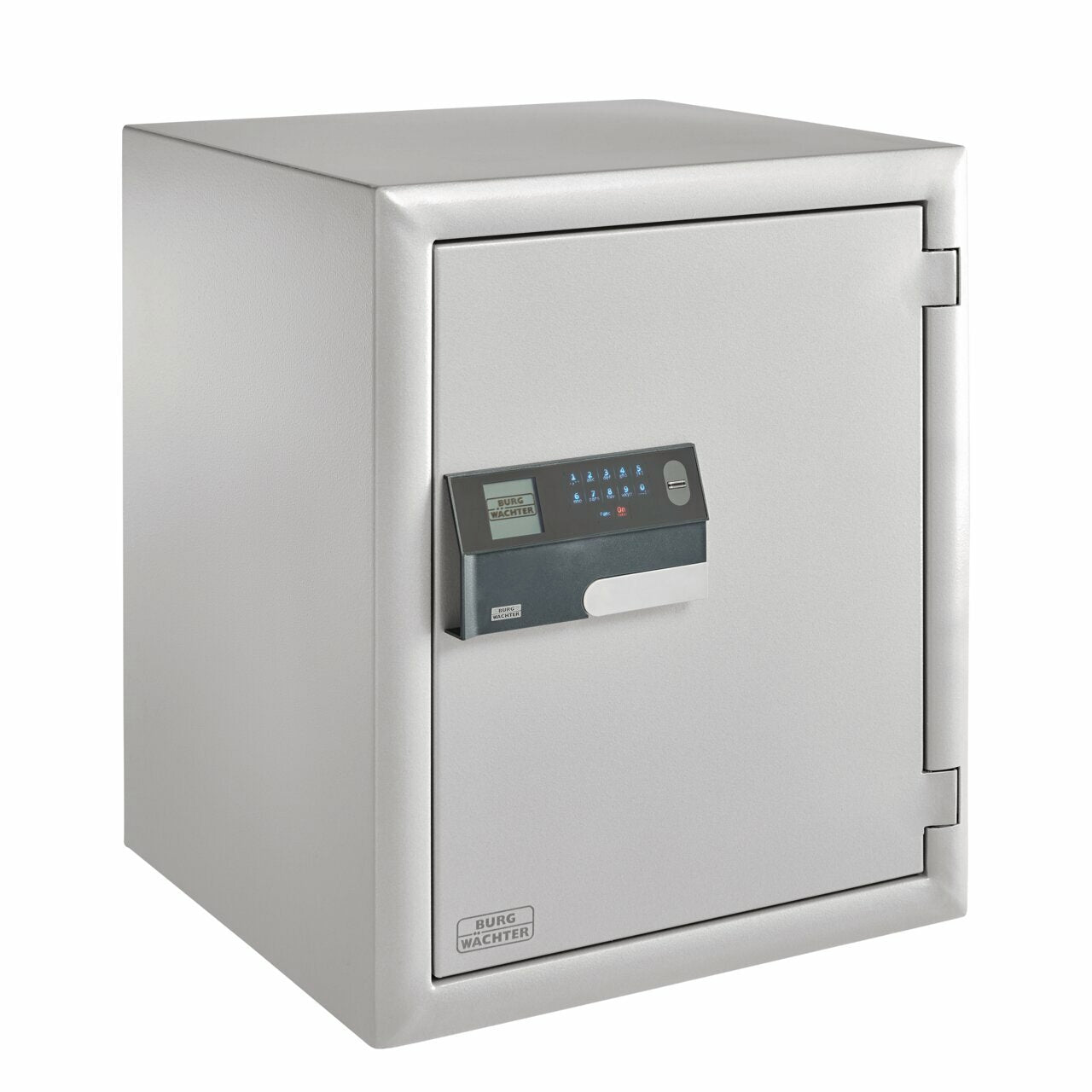

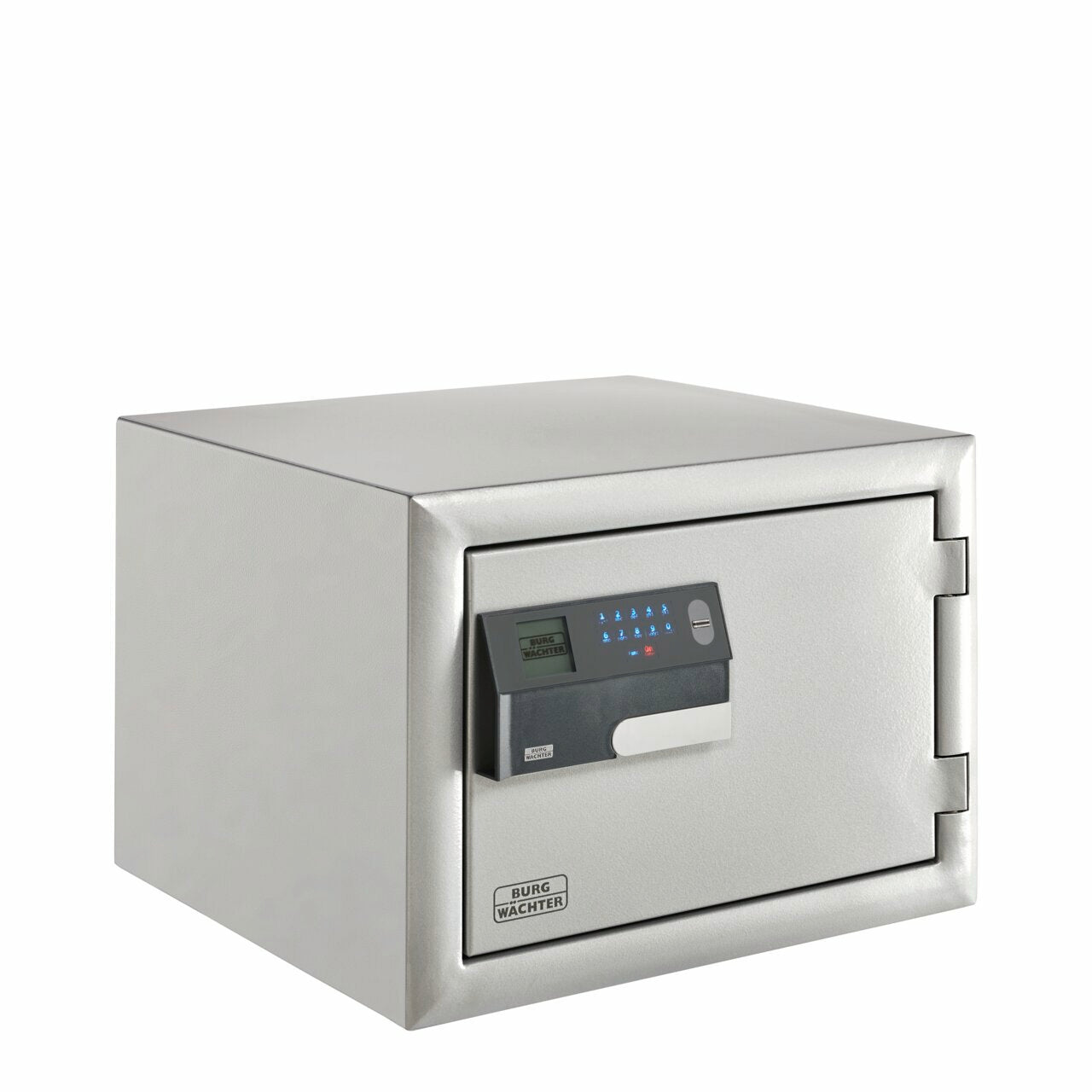

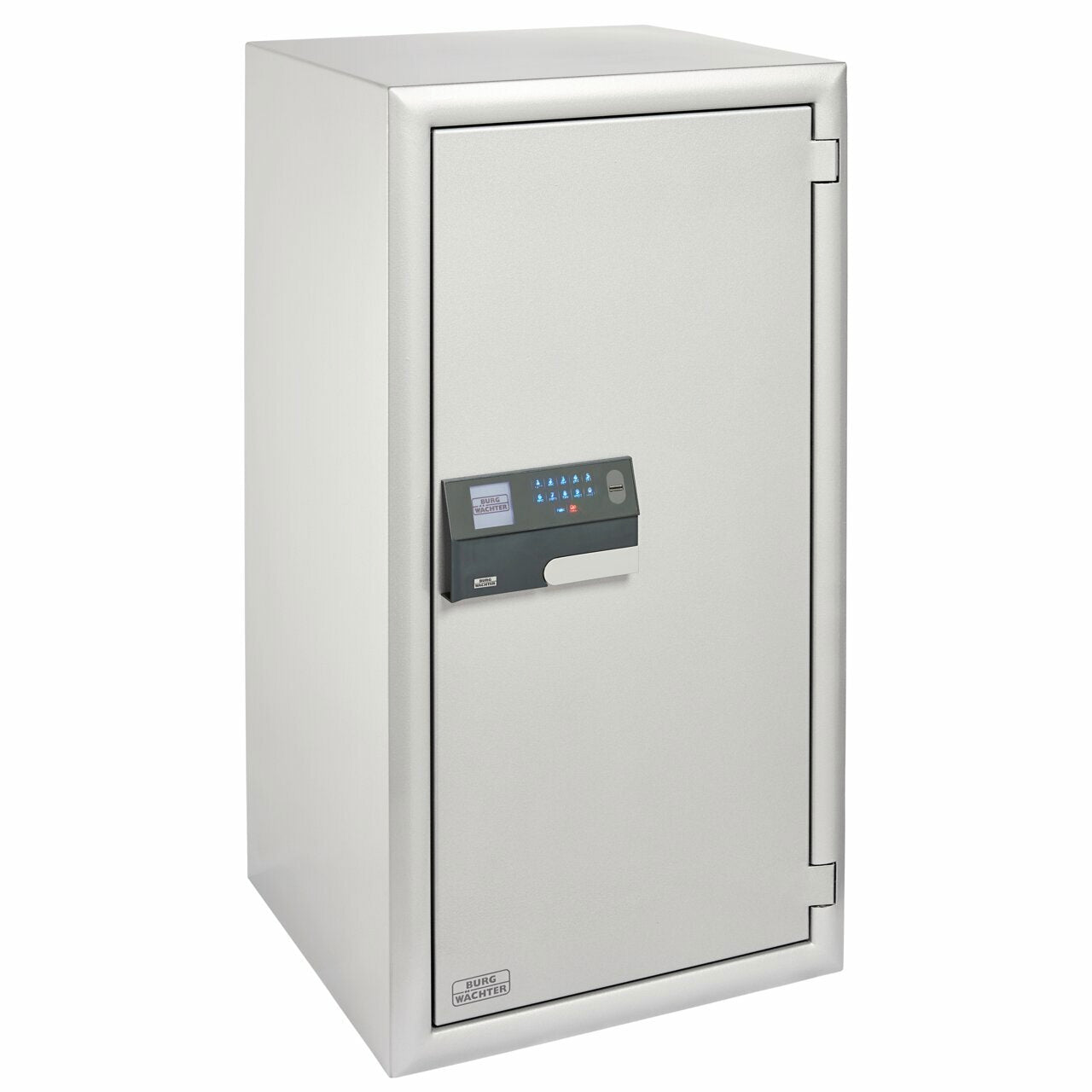

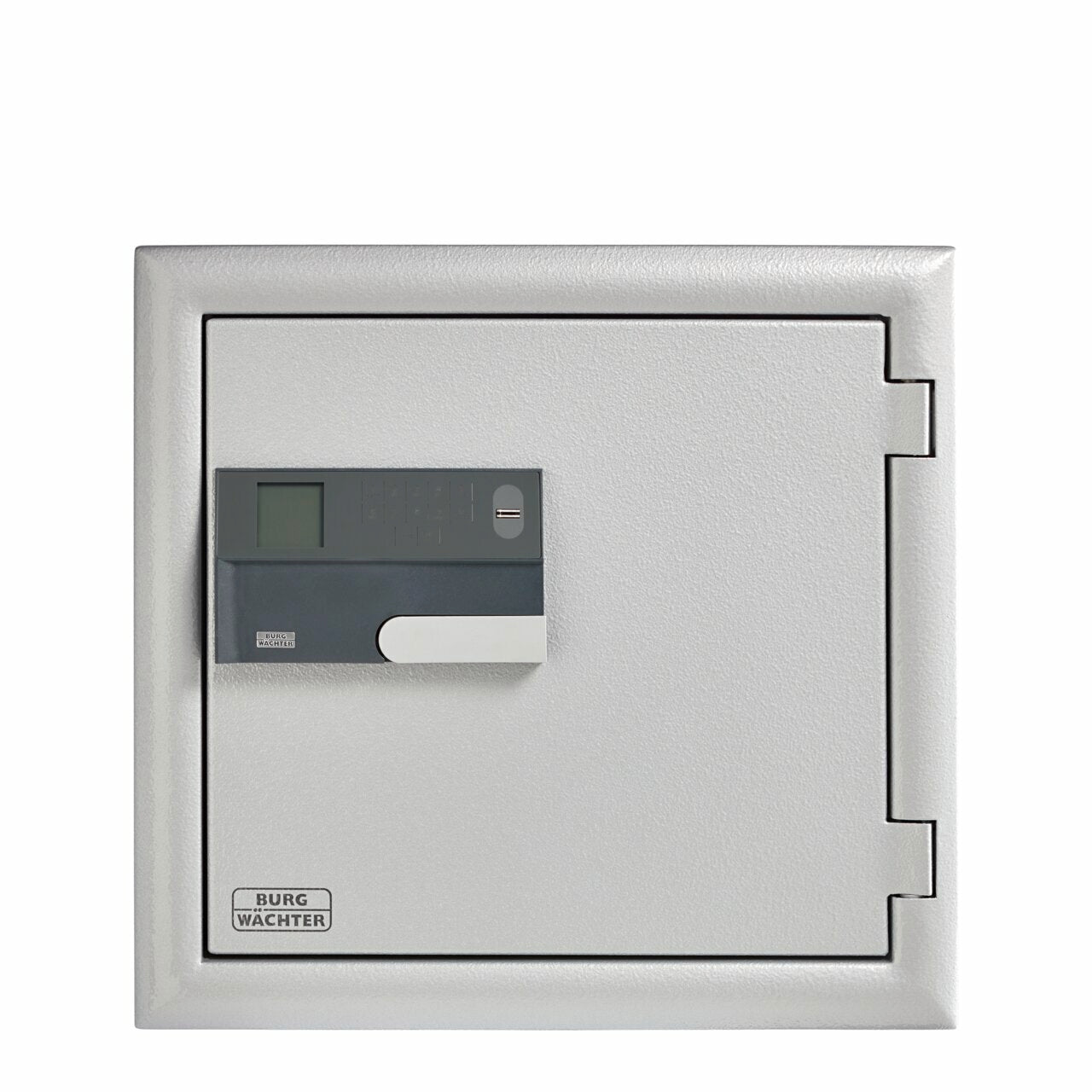

The modern safe electronics "SecuTronic" TRSE 12 H FP has an illuminated touch control panel with graphic display. You can freely select the opening code. You have one admin code and nine user codes at your disposal. By the way, you can read out the opening history directly on the display.Vault opening by fingerprint

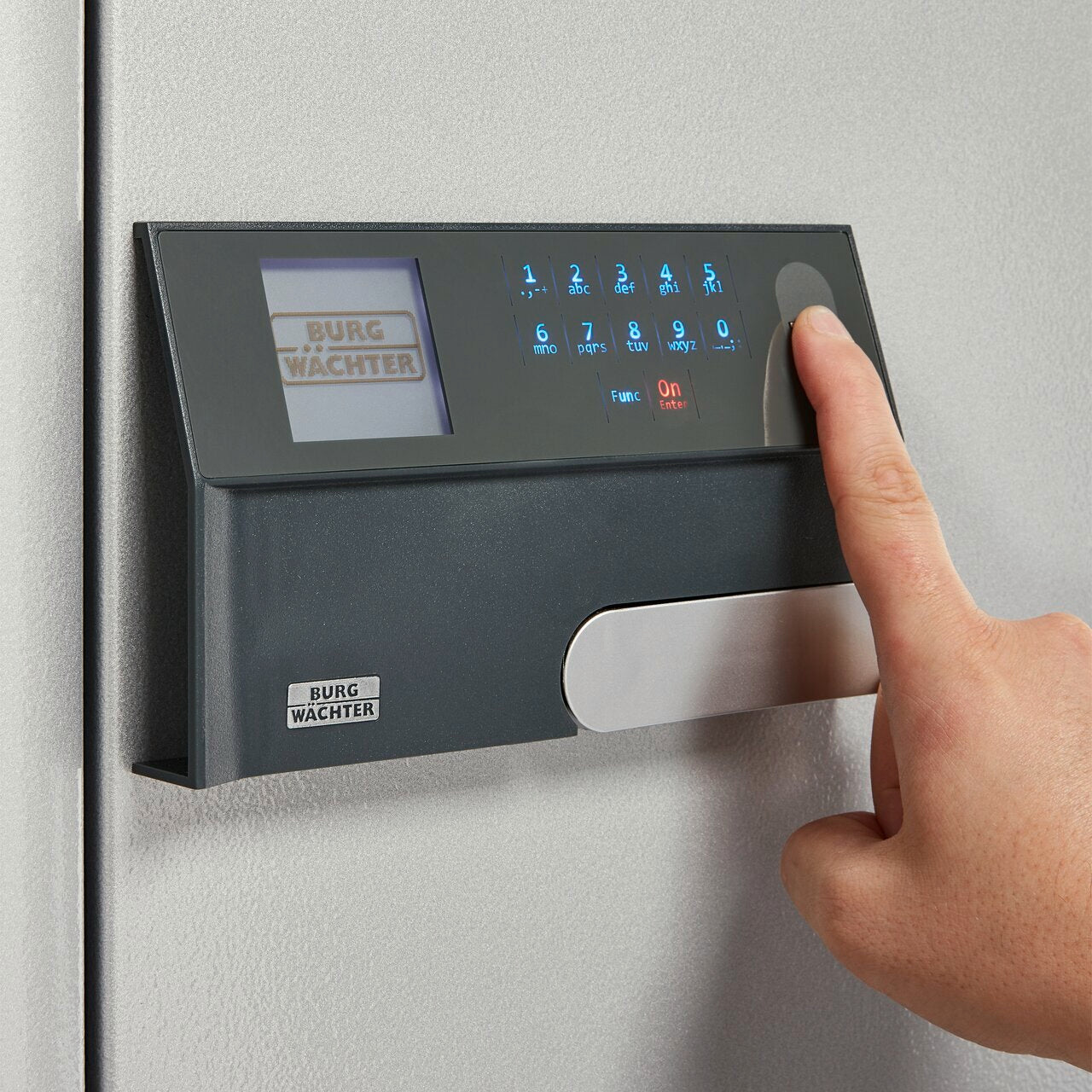

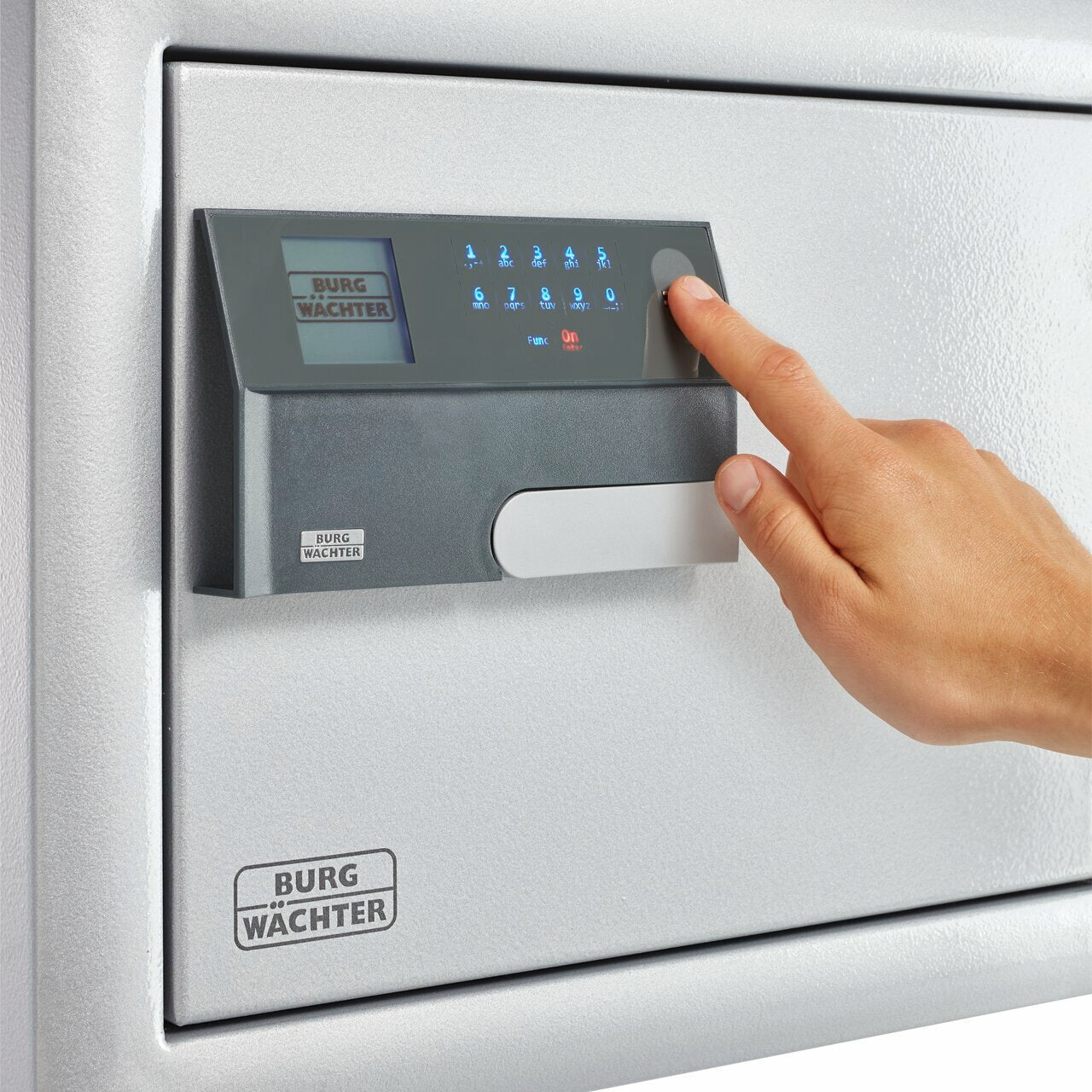

A brand new feature is the opening of the safe with just one fingerprint for up to 20 users.This makes BURG-WÄCHTER currently the only manufacturer to offer a certified, biometric opening method (ECB-S-certified, lock class A).Of course, the technology features "fake finger detection" (live finger detection).Delayed opening, locking time, connection to alarm system
The electronic lock "SecuTronic" TRSE 12 H FP allows a delayed opening (max. 99 minutes). This means: After entering the code, the programmed time elapses until the safe can be opened. From the entry of three incorrect codes, a blocking time is activated. This way, burglars have no chance to try many combinations. Furthermore, the Diplomat safes (sizes 760 and 780) can optionally be connected to an alarm system or alarm notification system. All these details further increase your security!Elegant interior fittings for your MTD Diplomat
Upgrade your safe even further. With the matching interior fittings made of high-quality oak and LED lighting with motion detector. The interior fittings fit exactly into the Diplomat sizes MTD 740, MTD 750 and MTD 760/780. Depending on the size, the high-quality interior features one to three drawers and filing depth. This allows you to organise your valuables and papers even more elegantly and clearly.Value protection cabinet Diplomat MTD for high demands
Protection against theft combined with protection against fire and heat. The safes of the Diplomat series from BURG-WÄCHTER provide double protection. This makes them the ideal place for your valuables! Because the Diplomat valuables safe with resistance grade I is type-tested, monitored by the ECB-S/VdS and burglary protection certified according to EN 1143-1.Fire protection for at least one hour
Your documents are protected from fire and heat in the Diplomat for at least one hour. This is exactly what the certified fire protection according to EN 15659 guarantees. For this purpose, our developers have provided the wall with a reinforced special fire insulation. Furthermore, a special thermal insulation is installed so that the temperature inside only rises slowly in the event of a fire.The Diplomat - For your safety
- Resistance grade I
- Certified burglary protection according to EN 1143-1
- Certified fire protection according to EN 15659 (as of 2009)
- Fire resistance LFS 60 P: 60 minutes fire protection for paper
Diplomat security cabinet: Highest quality with resistance grade I
The Diplomat safe owes its enormous resistance to a three-walled corpus. Furthermore, the safe door scores with a four-walled construction. The four-sided locking with extra strong round bolts ensures a high level of burglary protection. Another plus are the emergency locks with two non-resettable systems. All components add up to an ideal complete security package!MTD Diplomat safe in four sizes and two locking systems
To ensure that valuables are properly organised, one (MTD 740 and MTD 750) or two adjustable shelves (MTD 760 and MTD 780) keep things tidy, depending on the model. The safe models in four sizes are available with two locking systems. Of course with the classic key (K models). Or the modern electronic locking system "SecuTronic" (E FP models) for opening by code and fingerprint. The high-security double-bit lock "SecuSafe" offers a convenient extra. Because if you lose a key, you can simply order a new set of keys and change the lock to the new keys.New electronics "SecuTronic" scores with convenience and security
The modern safe electronics "SecuTronic" TRSE 12 H FP has an illuminated touch control panel with graphic display. You can freely select the opening code. You have one admin code and nine user codes at your disposal. By the way, you can read out the opening history directly on the display.Vault opening by fingerprint
A brand new feature is the opening of the safe with just one fingerprint for up to 20 users.This makes BURG-WÄCHTER currently the only manufacturer to offer a certified, biometric opening method (ECB-S-certified, lock class A).Of course, the technology features "fake finger detection" (live finger detection).Delayed opening, locking time, connection to alarm system
The electronic lock "SecuTronic" TRSE 12 H FP allows a delayed opening (max. 99 minutes). This means: After entering the code, the programmed time elapses until the safe can be opened. From the entry of three incorrect codes, a blocking time is activated. This way, burglars have no chance to try many combinations. Furthermore, the Diplomat safes (sizes 760 and 780) can optionally be connected to an alarm system or alarm notification system. All these details further increase your security!Elegant interior fittings for your MTD Diplomat
Upgrade your safe even further. With the matching interior fittings made of high-quality oak and LED lighting with motion detector. The interior fittings fit exactly into the Diplomat sizes MTD 740, MTD 750 and MTD 760/780. Depending on the size, the high-quality interior features one to three drawers and filing depth. This allows you to organise your valuables and papers even more elegantly and clearly.Value protection cabinet Diplomat MTD for high demands
Protection against theft combined with protection against fire and heat. The safes of the Diplomat series from BURG-WÄCHTER provide double protection. This makes them the ideal place for your valuables! Because the Diplomat valuables safe with resistance grade I is type-tested, monitored by the ECB-S/VdS and burglary protection certified according to EN 1143-1.Fire protection for at least one hour
Your documents are protected from fire and heat in the Diplomat for at least one hour. This is exactly what the certified fire protection according to EN 15659 guarantees. For this purpose, our developers have provided the wall with a reinforced special fire insulation. Furthermore, a special thermal insulation is installed so that the temperature inside only rises slowly in the event of a fire.The Diplomat - For your safety
- Resistance grade I
- Certified burglary protection according to EN 1143-1
- Certified fire protection according to EN 15659 (as of 2009)
- Fire resistance LFS 60 P: 60 minutes fire protection for paper
Diplomat security cabinet: Highest quality with resistance grade I
The Diplomat safe owes its enormous resistance to a three-walled corpus. Furthermore, the safe door scores with a four-walled construction. The four-sided locking with extra strong round bolts ensures a high level of burglary protection. Another plus are the emergency locks with two non-resettable systems. All components add up to an ideal complete security package!MTD Diplomat safe in four sizes and two locking systems
To ensure that valuables are properly organised, one (MTD 740 and MTD 750) or two adjustable shelves (MTD 760 and MTD 780) keep things tidy, depending on the model. The safe models in four sizes are available with two locking systems. Of course with the classic key (K models). Or the modern electronic locking system "SecuTronic" (E FP models) for opening by code and fingerprint. The high-security double-bit lock "SecuSafe" offers a convenient extra. Because if you lose a key, you can simply order a new set of keys and change the lock to the new keys.New electronics "SecuTronic" scores with convenience and security
The modern safe electronics "SecuTronic" TRSE 12 H FP has an illuminated touch control panel with graphic display. You can freely select the opening code. You have one admin code and nine user codes at your disposal. By the way, you can read out the opening history directly on the display.Vault opening by fingerprint
A brand new feature is the opening of the safe with just one fingerprint for up to 20 users.This makes BURG-WÄCHTER currently the only manufacturer to offer a certified, biometric opening method (ECB-S-certified, lock class A).Of course, the technology features "fake finger detection" (live finger detection).Delayed opening, locking time, connection to alarm system
The electronic lock "SecuTronic" TRSE 12 H FP allows a delayed opening (max. 99 minutes). This means: After entering the code, the programmed time elapses until the safe can be opened. From the entry of three incorrect codes, a blocking time is activated. This way, burglars have no chance to try many combinations. Furthermore, the Diplomat safes (sizes 760 and 780) can optionally be connected to an alarm system or alarm notification system. All these details further increase your security!Elegant interior fittings for your MTD Diplomat
Upgrade your safe even further. With the matching interior fittings made of high-quality oak and LED lighting with motion detector. The interior fittings fit exactly into the Diplomat sizes MTD 740, MTD 750 and MTD 760/780. Depending on the size, the high-quality interior features one to three drawers and filing depth. This allows you to organise your valuables and papers even more elegantly and clearly.Value protection cabinet Diplomat MTD for high demands
Protection against theft combined with protection against fire and heat. The safes of the Diplomat series from BURG-WÄCHTER provide double protection. This makes them the ideal place for your valuables! Because the Diplomat valuables safe with resistance grade I is type-tested, monitored by the ECB-S/VdS and burglary protection certified according to EN 1143-1.Fire protection for at least one hour
Your documents are protected from fire and heat in the Diplomat for at least one hour. This is exactly what the certified fire protection according to EN 15659 guarantees. For this purpose, our developers have provided the wall with a reinforced special fire insulation. Furthermore, a special thermal insulation is installed so that the temperature inside only rises slowly in the event of a fire.The Diplomat - For your safety
- Resistance grade I
- Certified burglary protection according to EN 1143-1
- Certified fire protection according to EN 15659 (as of 2009)
- Fire resistance LFS 60 P: 60 minutes fire protection for paper
Diplomat security cabinet: Highest quality with resistance grade I
The Diplomat safe owes its enormous resistance to a three-walled corpus. Furthermore, the safe door scores with a four-walled construction. The four-sided locking with extra strong round bolts ensures a high level of burglary protection. Another plus are the emergency locks with two non-resettable systems. All components add up to an ideal complete security package!MTD Diplomat safe in four sizes and two locking systems
To ensure that valuables are properly organised, one (MTD 740 and MTD 750) or two adjustable shelves (MTD 760 and MTD 780) keep things tidy, depending on the model. The safe models in four sizes are available with two locking systems. Of course with the classic key (K models). Or the modern electronic locking system "SecuTronic" (E FP models) for opening by code and fingerprint. The high-security double-bit lock "SecuSafe" offers a convenient extra. Because if you lose a key, you can simply order a new set of keys and change the lock to the new keys.New electronics "SecuTronic" scores with convenience and security
The modern safe electronics "SecuTronic" TRSE 12 H FP has an illuminated touch control panel with graphic display. You can freely select the opening code. You have one admin code and nine user codes at your disposal. By the way, you can read out the opening history directly on the display.Vault opening by fingerprint
A brand new feature is the opening of the safe with just one fingerprint for up to 20 users.This makes BURG-WÄCHTER currently the only manufacturer to offer a certified, biometric opening method (ECB-S-certified, lock class A).Of course, the technology features "fake finger detection" (live finger detection).Delayed opening, locking time, connection to alarm system
The electronic lock "SecuTronic" TRSE 12 H FP allows a delayed opening (max. 99 minutes). This means: After entering the code, the programmed time elapses until the safe can be opened. From the entry of three incorrect codes, a blocking time is activated. This way, burglars have no chance to try many combinations. Furthermore, the Diplomat safes (sizes 760 and 780) can optionally be connected to an alarm system or alarm notification system. All these details further increase your security!Elegant interior fittings for your MTD Diplomat
Upgrade your safe even further. With the matching interior fittings made of high-quality oak and LED lighting with motion detector. The interior fittings fit exactly into the Diplomat sizes MTD 740, MTD 750 and MTD 760/780. Depending on the size, the high-quality interior features one to three drawers and filing depth. This allows you to organise your valuables and papers even more elegantly and clearly.Value protection cabinet Diplomat MTD for high demands
Protection against theft combined with protection against fire and heat. The safes of the Diplomat series from BURG-WÄCHTER provide double protection. This makes them the ideal place for your valuables! Because the Diplomat valuables safe with resistance grade I is type-tested, monitored by the ECB-S/VdS and burglary protection certified according to EN 1143-1.Fire protection for at least one hour
Your documents are protected from fire and heat in the Diplomat for at least one hour. This is exactly what the certified fire protection according to EN 15659 guarantees. For this purpose, our developers have provided the wall with a reinforced special fire insulation. Furthermore, a special thermal insulation is installed so that the temperature inside only rises slowly in the event of a fire.The Diplomat - For your safety
- Resistance grade I
- Certified burglary protection according to EN 1143-1
- Certified fire protection according to EN 15659 (as of 2009)
- Fire resistance LFS 60 P: 60 minutes fire protection for paper
Diplomat security cabinet: Highest quality with resistance grade I
The Diplomat safe owes its enormous resistance to a three-walled corpus. Furthermore, the safe door scores with a four-walled construction. The four-sided locking with extra strong round bolts ensures a high level of burglary protection. Another plus are the emergency locks with two non-resettable systems. All components add up to an ideal complete security package!MTD Diplomat safe in four sizes and two locking systems
To ensure that valuables are properly organised, one (MTD 740 and MTD 750) or two adjustable shelves (MTD 760 and MTD 780) keep things tidy, depending on the model. The safe models in four sizes are available with two locking systems. Of course with the classic key (K models). Or the modern electronic locking system "SecuTronic" (E FP models) for opening by code and fingerprint. The high-security double-bit lock "SecuSafe" offers a convenient extra. Because if you lose a key, you can simply order a new set of keys and change the lock to the new keys.New electronics "SecuTronic" scores with convenience and security
The modern safe electronics "SecuTronic" TRSE 12 H FP has an illuminated touch control panel with graphic display. You can freely select the opening code. You have one admin code and nine user codes at your disposal. By the way, you can read out the opening history directly on the display.Vault opening by fingerprint
A brand new feature is the opening of the safe with just one fingerprint for up to 20 users.This makes BURG-WÄCHTER currently the only manufacturer to offer a certified, biometric opening method (ECB-S-certified, lock class A).Of course, the technology features "fake finger detection" (live finger detection).Delayed opening, locking time, connection to alarm system
The electronic lock "SecuTronic" TRSE 12 H FP allows a delayed opening (max. 99 minutes). This means: After entering the code, the programmed time elapses until the safe can be opened. From the entry of three incorrect codes, a blocking time is activated. This way, burglars have no chance to try many combinations. Furthermore, the Diplomat safes (sizes 760 and 780) can optionally be connected to an alarm system or alarm notification system. All these details further increase your security!Elegant interior fittings for your MTD Diplomat
Upgrade your safe even further. With the matching interior fittings made of high-quality oak and LED lighting with motion detector. The interior fittings fit exactly into the Diplomat sizes MTD 740, MTD 750 and MTD 760/780. Depending on the size, the high-quality interior features one to three drawers and filing depth. This allows you to organise your valuables and papers even more elegantly and clearly.Value protection cabinet Diplomat MTD for high demands
Protection against theft combined with protection against fire and heat. The safes of the Diplomat series from BURG-WÄCHTER provide double protection. This makes them the ideal place for your valuables! Because the Diplomat valuables safe with resistance grade I is type-tested, monitored by the ECB-S/VdS and burglary protection certified according to EN 1143-1.Fire protection for at least one hour
Your documents are protected from fire and heat in the Diplomat for at least one hour. This is exactly what the certified fire protection according to EN 15659 guarantees. For this purpose, our developers have provided the wall with a reinforced special fire insulation. Furthermore, a special thermal insulation is installed so that the temperature inside only rises slowly in the event of a fire.The Diplomat - For your safety
- Resistance grade I
- Certified burglary protection according to EN 1143-1
- Certified fire protection according to EN 15659 (as of 2009)
- Fire resistance LFS 60 P: 60 minutes fire protection for paper
Diplomat security cabinet: Highest quality with resistance grade I
The Diplomat safe owes its enormous resistance to a three-walled corpus. Furthermore, the safe door scores with a four-walled construction. The four-sided locking with extra strong round bolts ensures a high level of burglary protection. Another plus are the emergency locks with two non-resettable systems. All components add up to an ideal complete security package!MTD Diplomat safe in four sizes and two locking systems
To ensure that valuables are properly organised, one (MTD 740 and MTD 750) or two adjustable shelves (MTD 760 and MTD 780) keep things tidy, depending on the model. The safe models in four sizes are available with two locking systems. Of course with the classic key (K models). Or the modern electronic locking system "SecuTronic" (E FP models) for opening by code and fingerprint. The high-security double-bit lock "SecuSafe" offers a convenient extra. Because if you lose a key, you can simply order a new set of keys and change the lock to the new keys.New electronics "SecuTronic" scores with convenience and security
The modern safe electronics "SecuTronic" TRSE 12 H FP has an illuminated touch control panel with graphic display. You can freely select the opening code. You have one admin code and nine user codes at your disposal. By the way, you can read out the opening history directly on the display.Vault opening by fingerprint
A brand new feature is the opening of the safe with just one fingerprint for up to 20 users.This makes BURG-WÄCHTER currently the only manufacturer to offer a certified, biometric opening method (ECB-S-certified, lock class A).Of course, the technology features "fake finger detection" (live finger detection).Delayed opening, locking time, connection to alarm system
The electronic lock "SecuTronic" TRSE 12 H FP allows a delayed opening (max. 99 minutes). This means: After entering the code, the programmed time elapses until the safe can be opened. From the entry of three incorrect codes, a blocking time is activated. This way, burglars have no chance to try many combinations. Furthermore, the Diplomat safes (sizes 760 and 780) can optionally be connected to an alarm system or alarm notification system. All these details further increase your security!Elegant interior fittings for your MTD Diplomat
Upgrade your safe even further. With the matching interior fittings made of high-quality oak and LED lighting with motion detector. The interior fittings fit exactly into the Diplomat sizes MTD 740, MTD 750 and MTD 760/780. Depending on the size, the high-quality interior features one to three drawers and filing depth. This allows you to organise your valuables and papers even more elegantly and clearly.Value protection cabinet Diplomat MTD for high demands
Protection against theft combined with protection against fire and heat. The safes of the Diplomat series from BURG-WÄCHTER provide double protection. This makes them the ideal place for your valuables! Because the Diplomat valuables safe with resistance grade I is type-tested, monitored by the ECB-S/VdS and burglary protection certified according to EN 1143-1.Fire protection for at least one hour
Your documents are protected from fire and heat in the Diplomat for at least one hour. This is exactly what the certified fire protection according to EN 15659 guarantees. For this purpose, our developers have provided the wall with a reinforced special fire insulation. Furthermore, a special thermal insulation is installed so that the temperature inside only rises slowly in the event of a fire.The Diplomat - For your safety
- Resistance grade I
- Certified burglary protection according to EN 1143-1
- Certified fire protection according to EN 15659 (as of 2009)
- Fire resistance LFS 60 P: 60 minutes fire protection for paper
Diplomat security cabinet: Highest quality with resistance grade I
The Diplomat safe owes its enormous resistance to a three-walled corpus. Furthermore, the safe door scores with a four-walled construction. The four-sided locking with extra strong round bolts ensures a high level of burglary protection. Another plus are the emergency locks with two non-resettable systems. All components add up to an ideal complete security package!MTD Diplomat safe in four sizes and two locking systems
To ensure that valuables are properly organised, one (MTD 740 and MTD 750) or two adjustable shelves (MTD 760 and MTD 780) keep things tidy, depending on the model. The safe models in four sizes are available with two locking systems. Of course with the classic key (K models). Or the modern electronic locking system "SecuTronic" (E FP models) for opening by code and fingerprint. The high-security double-bit lock "SecuSafe" offers a convenient extra. Because if you lose a key, you can simply order a new set of keys and change the lock to the new keys.New electronics "SecuTronic" scores with convenience and security
The modern safe electronics "SecuTronic" TRSE 12 H FP has an illuminated touch control panel with graphic display. You can freely select the opening code. You have one admin code and nine user codes at your disposal. By the way, you can read out the opening history directly on the display.Vault opening by fingerprint
A brand new feature is the opening of the safe with just one fingerprint for up to 20 users.This makes BURG-WÄCHTER currently the only manufacturer to offer a certified, biometric opening method (ECB-S-certified, lock class A).Of course, the technology features "fake finger detection" (live finger detection).Delayed opening, locking time, connection to alarm system
The electronic lock "SecuTronic" TRSE 12 H FP allows a delayed opening (max. 99 minutes). This means: After entering the code, the programmed time elapses until the safe can be opened. From the entry of three incorrect codes, a blocking time is activated. This way, burglars have no chance to try many combinations. Furthermore, the Diplomat safes (sizes 760 and 780) can optionally be connected to an alarm system or alarm notification system. All these details further increase your security!Elegant interior fittings for your MTD Diplomat
Upgrade your safe even further. With the matching interior fittings made of high-quality oak and LED lighting with motion detector. The interior fittings fit exactly into the Diplomat sizes MTD 740, MTD 750 and MTD 760/780. Depending on the size, the high-quality interior features one to three drawers and filing depth. This allows you to organise your valuables and papers even more elegantly and clearly.Value protection cabinet Diplomat MTD for high demands
Protection against theft combined with protection against fire and heat. The safes of the Diplomat series from BURG-WÄCHTER provide double protection. This makes them the ideal place for your valuables! Because the Diplomat valuables safe with resistance grade I is type-tested, monitored by the ECB-S/VdS and burglary protection certified according to EN 1143-1.Fire protection for at least one hour
Your documents are protected from fire and heat in the Diplomat for at least one hour. This is exactly what the certified fire protection according to EN 15659 guarantees. For this purpose, our developers have provided the wall with a reinforced special fire insulation. Furthermore, a special thermal insulation is installed so that the temperature inside only rises slowly in the event of a fire.The Diplomat - For your safety
- Resistance grade I
- Certified burglary protection according to EN 1143-1
- Certified fire protection according to EN 15659 (as of 2009)
- Fire resistance LFS 60 P: 60 minutes fire protection for paper
Diplomat security cabinet: Highest quality with resistance grade I
The Diplomat safe owes its enormous resistance to a three-walled corpus. Furthermore, the safe door scores with a four-walled construction. The four-sided locking with extra strong round bolts ensures a high level of burglary protection. Another plus are the emergency locks with two non-resettable systems. All components add up to an ideal complete security package!MTD Diplomat safe in four sizes and two locking systems
To ensure that valuables are properly organised, one (MTD 740 and MTD 750) or two adjustable shelves (MTD 760 and MTD 780) keep things tidy, depending on the model. The safe models in four sizes are available with two locking systems. Of course with the classic key (K models). Or the modern electronic locking system "SecuTronic" (E FP models) for opening by code and fingerprint. The high-security double-bit lock "SecuSafe" offers a convenient extra. Because if you lose a key, you can simply order a new set of keys and change the lock to the new keys.New electronics "SecuTronic" scores with convenience and security
The modern safe electronics "SecuTronic" TRSE 12 H FP has an illuminated touch control panel with graphic display. You can freely select the opening code. You have one admin code and nine user codes at your disposal. By the way, you can read out the opening history directly on the display.Vault opening by fingerprint
A brand new feature is the opening of the safe with just one fingerprint for up to 20 users.This makes BURG-WÄCHTER currently the only manufacturer to offer a certified, biometric opening method (ECB-S-certified, lock class A).Of course, the technology features "fake finger detection" (live finger detection).Delayed opening, locking time, connection to alarm system
The electronic lock "SecuTronic" TRSE 12 H FP allows a delayed opening (max. 99 minutes). This means: After entering the code, the programmed time elapses until the safe can be opened. From the entry of three incorrect codes, a blocking time is activated. This way, burglars have no chance to try many combinations. Furthermore, the Diplomat safes (sizes 760 and 780) can optionally be connected to an alarm system or alarm notification system. All these details further increase your security!Elegant interior fittings for your MTD Diplomat
Upgrade your safe even further. With the matching interior fittings made of high-quality oak and LED lighting with motion detector. The interior fittings fit exactly into the Diplomat sizes MTD 740, MTD 750 and MTD 760/780. Depending on the size, the high-quality interior features one to three drawers and filing depth. This allows you to organise your valuables and papers even more elegantly and clearly.- RESISTANCE GRADE I, FIRE RESISTANCE GRADE LFS 60
- • type tested and supervised security by ECB·S
- • certified protection against burglary according to
- EN 1143-1
- • certified fire protection according to EN 15659, as of:
- 2009, 60 minutes fire protection for paper
- • 3 walled body with armoured, fireproof insulation
- • FPC buildup (Fire Protection Concrete) insulation in body
- and door

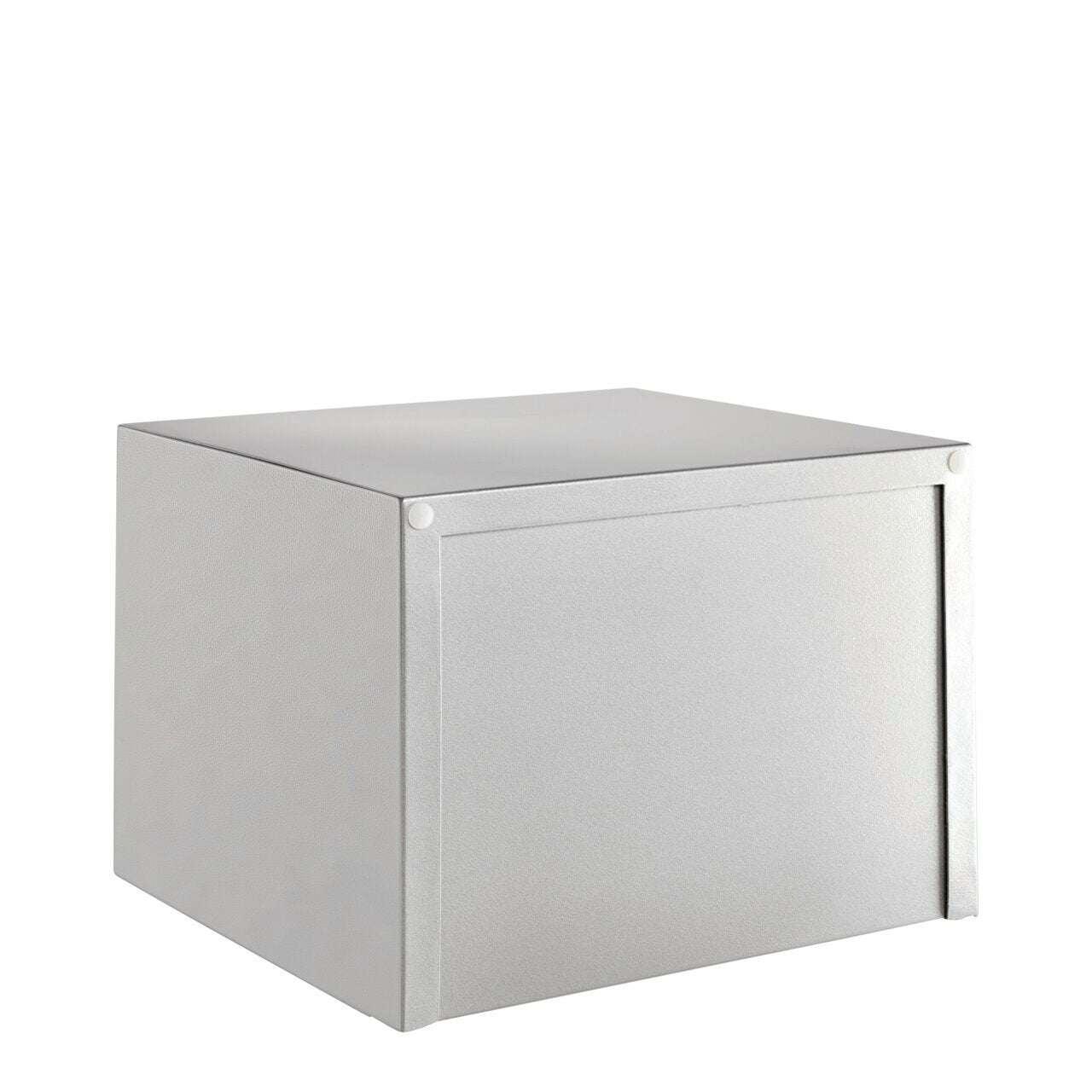

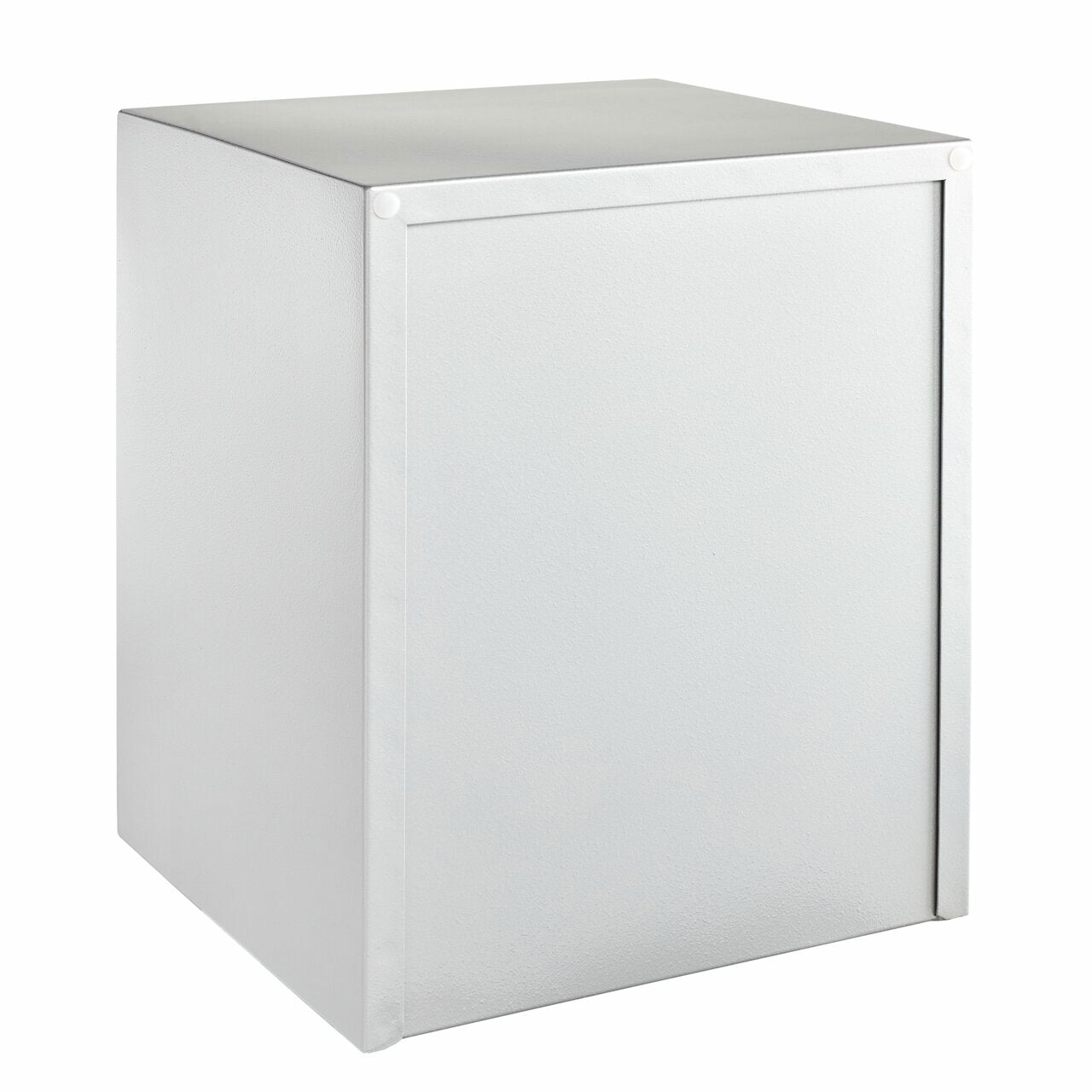

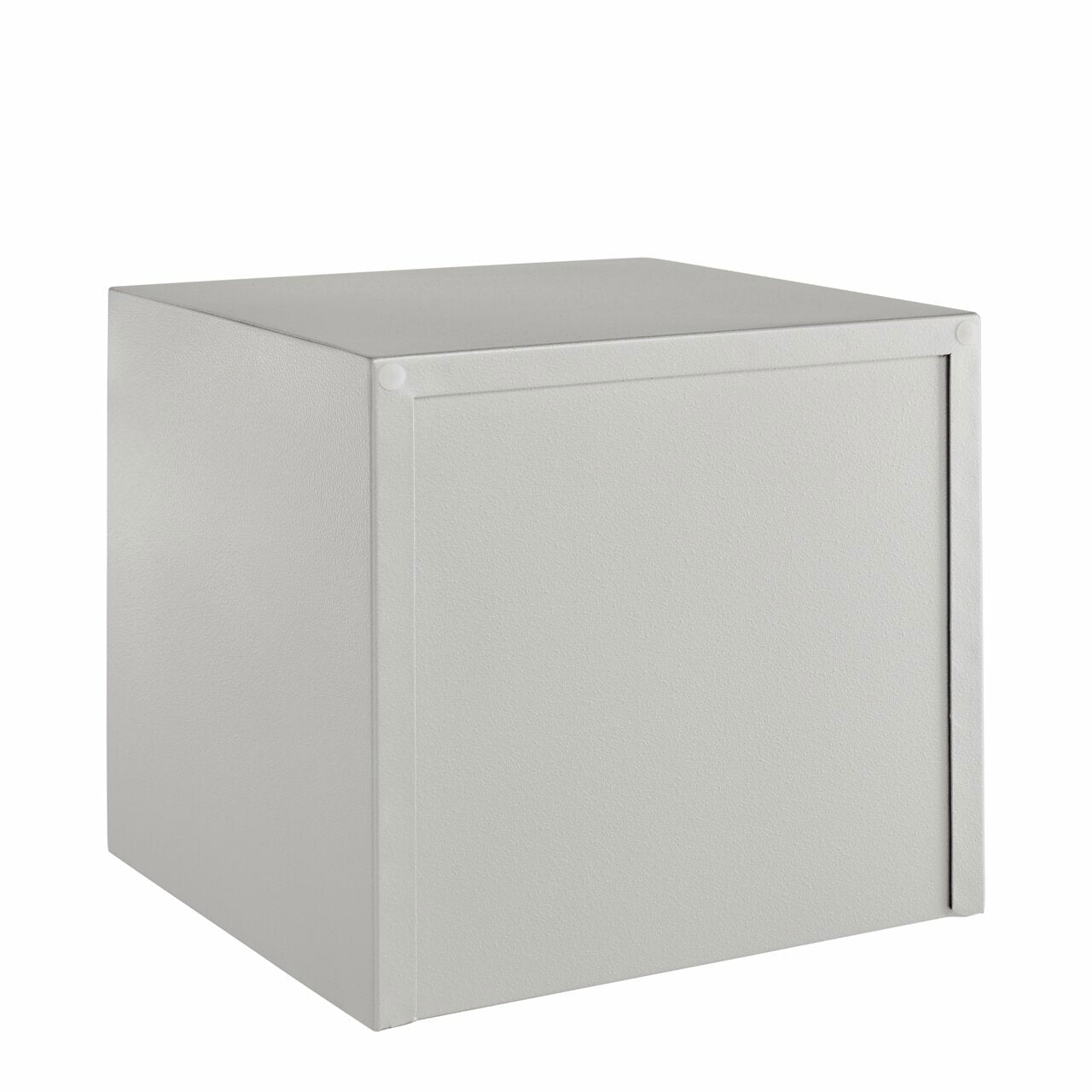

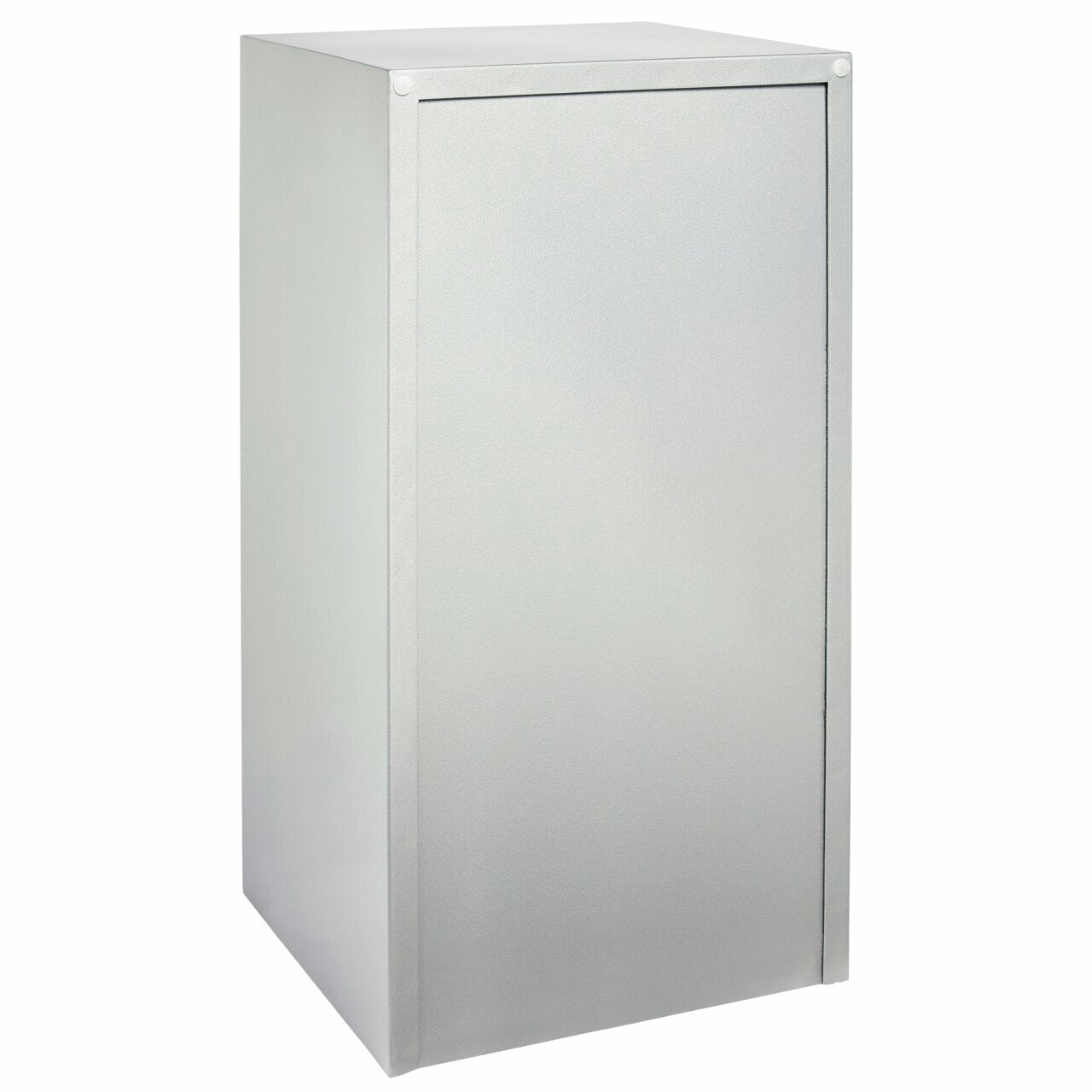

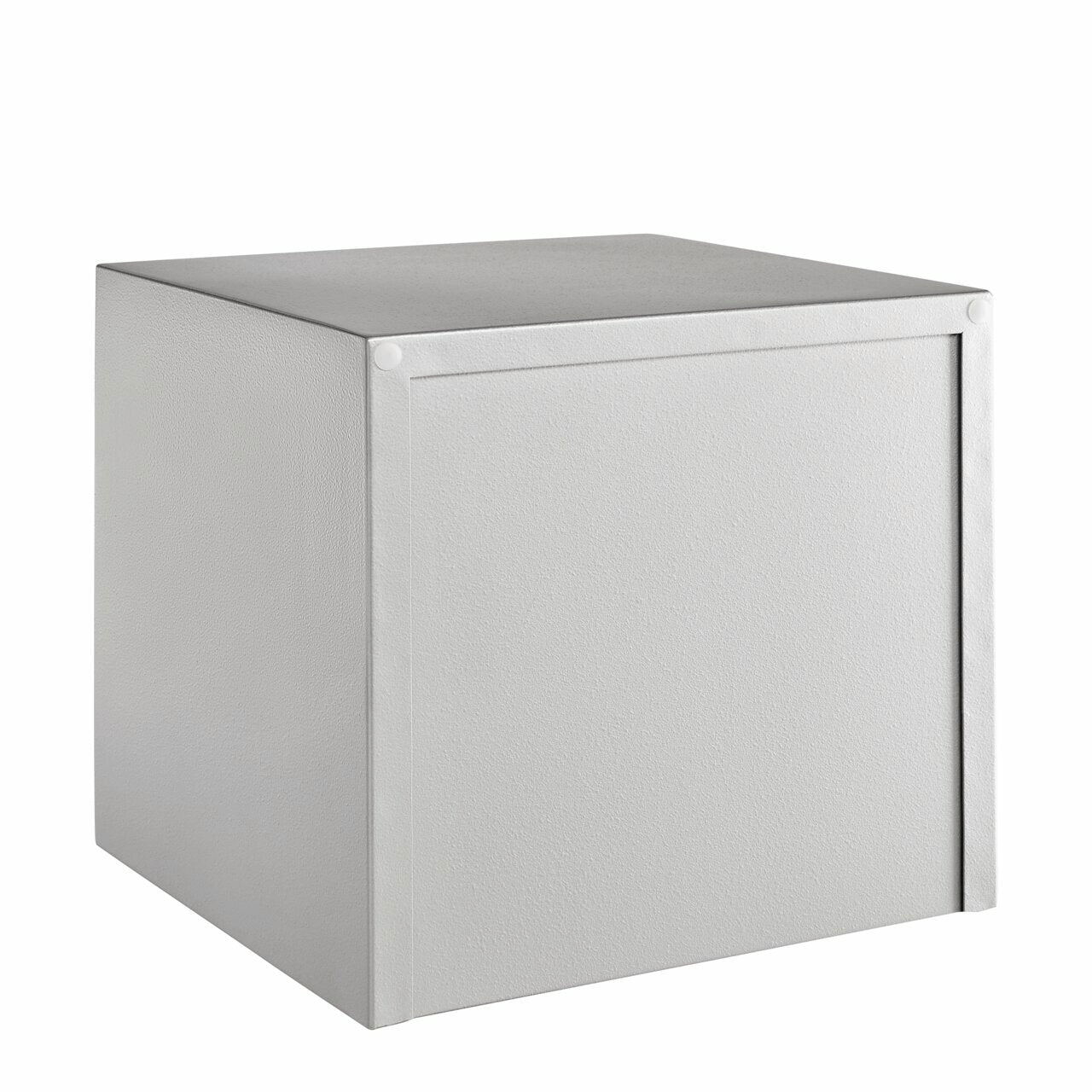

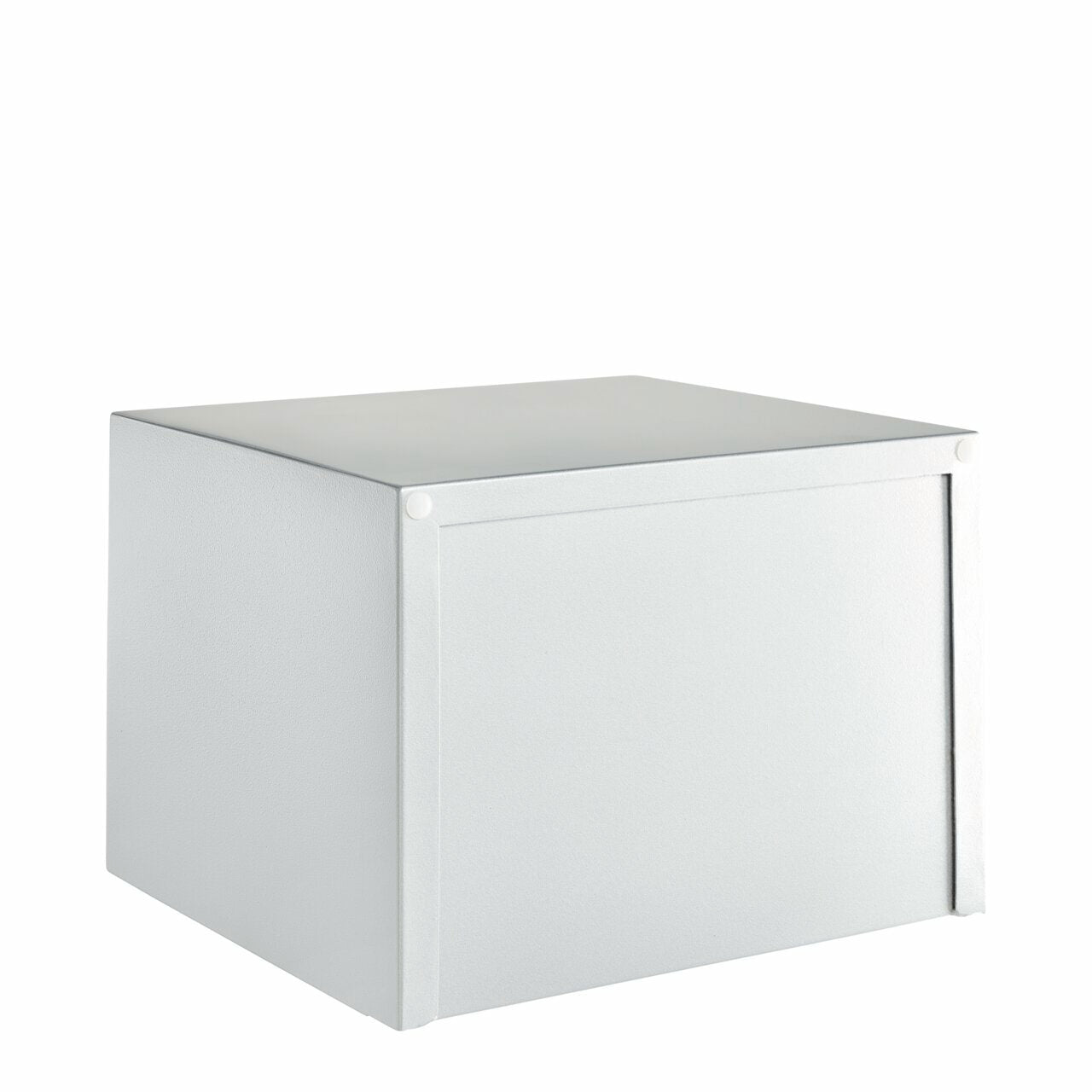

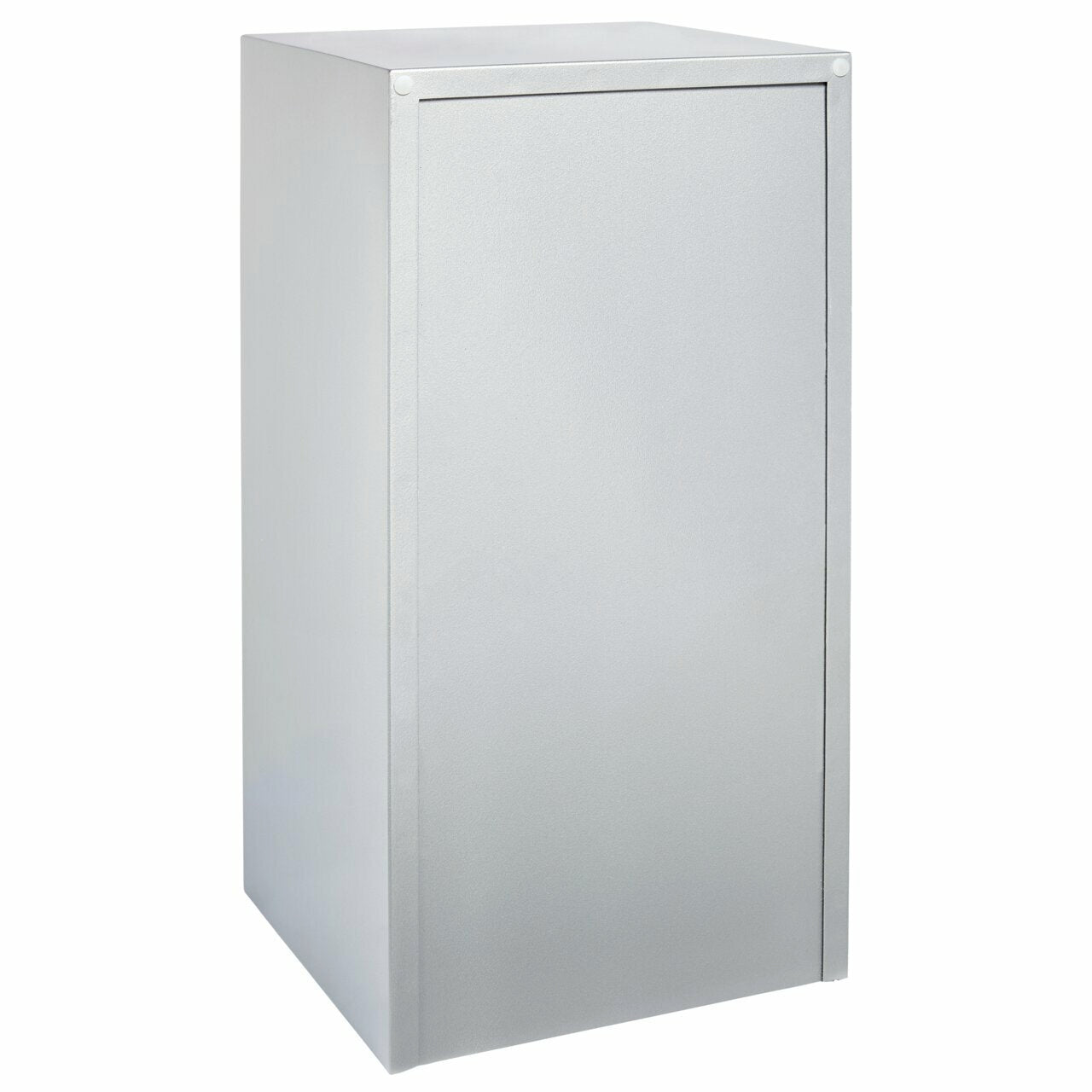

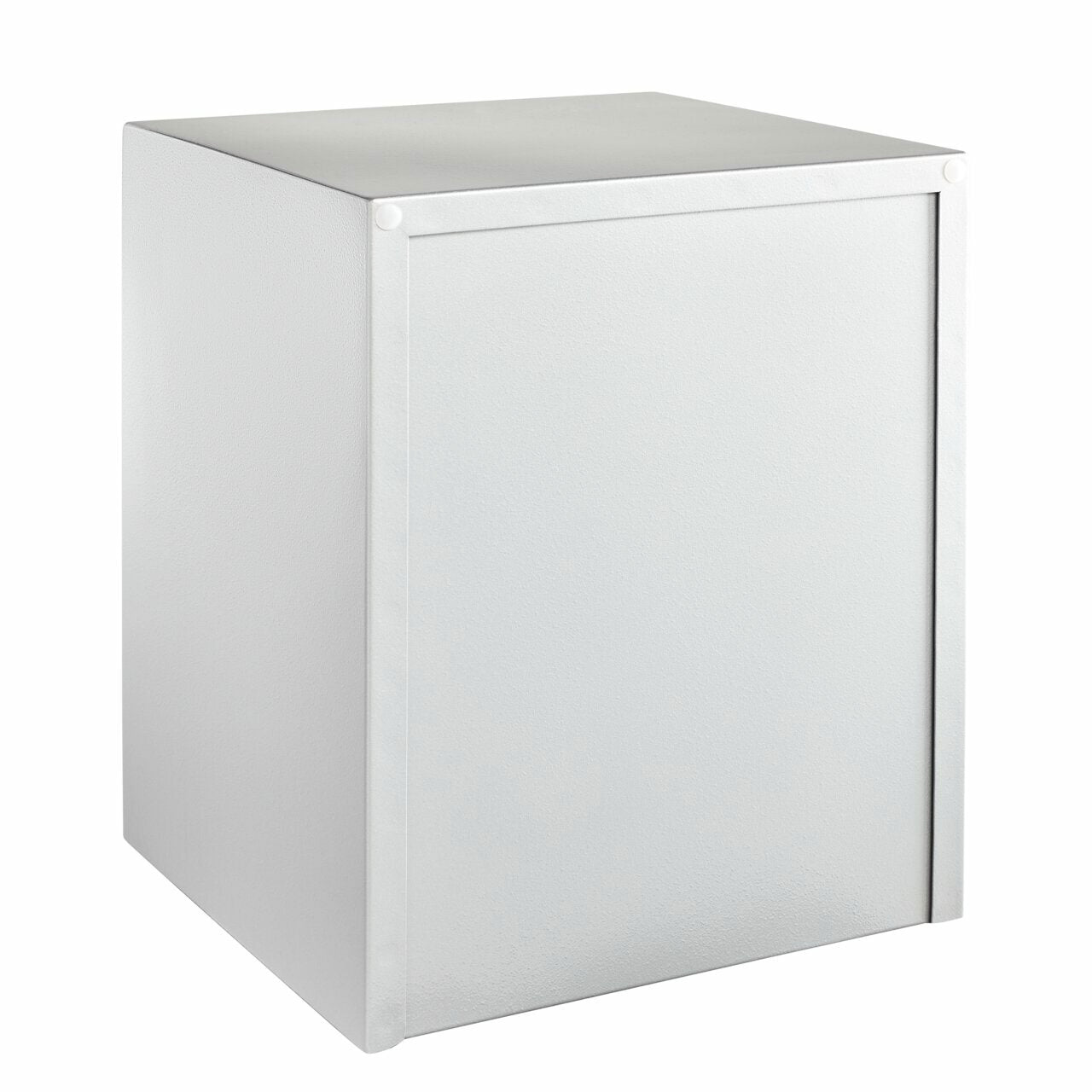

- • special back wall construction with additional
- reinforcement.
- Advantage: low overall depth due to slim construction
- • optimum use of interior space due to slim body
- construction
- • 4 walled inset door
- • extensive reinforcement in front of bolts and locking bolts

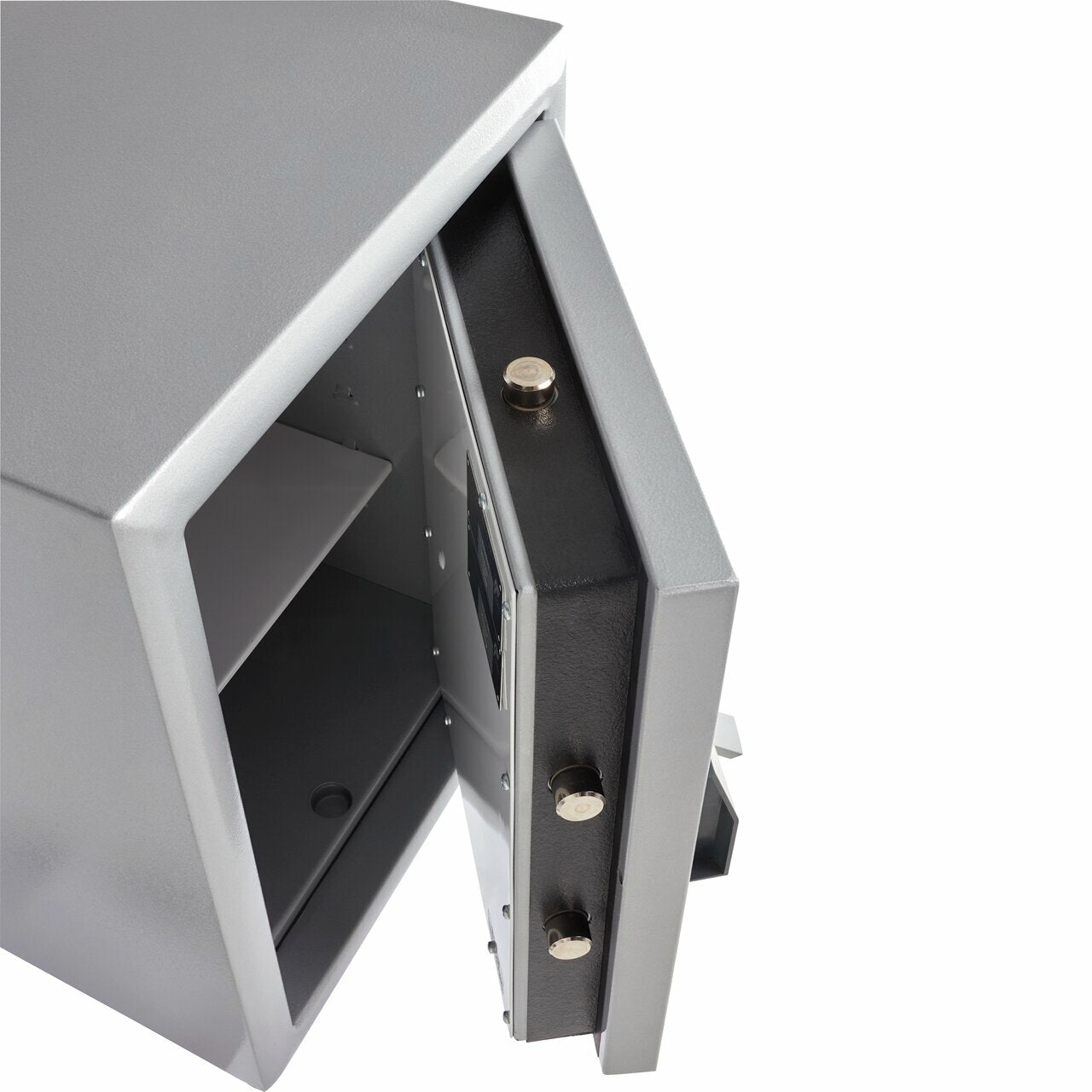

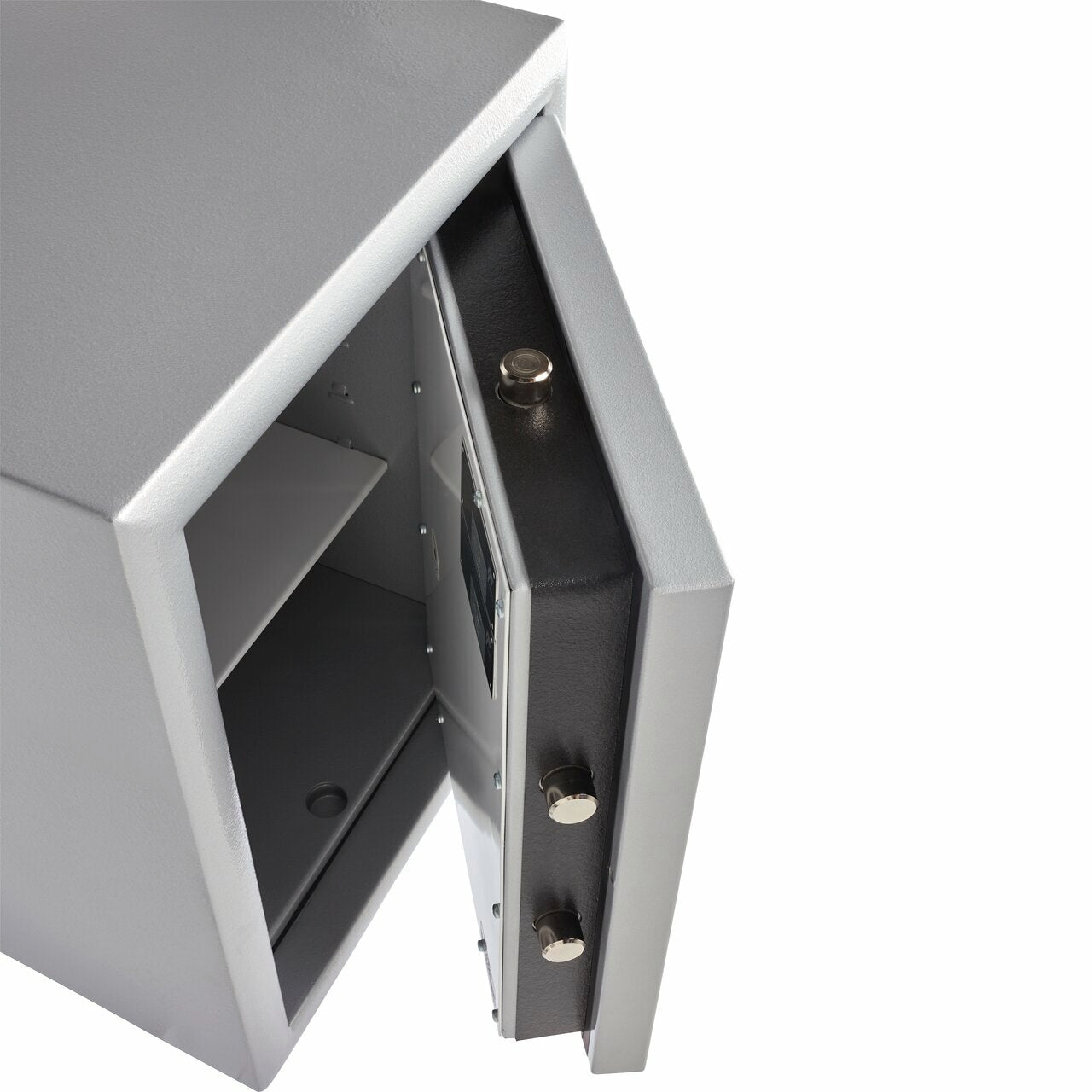

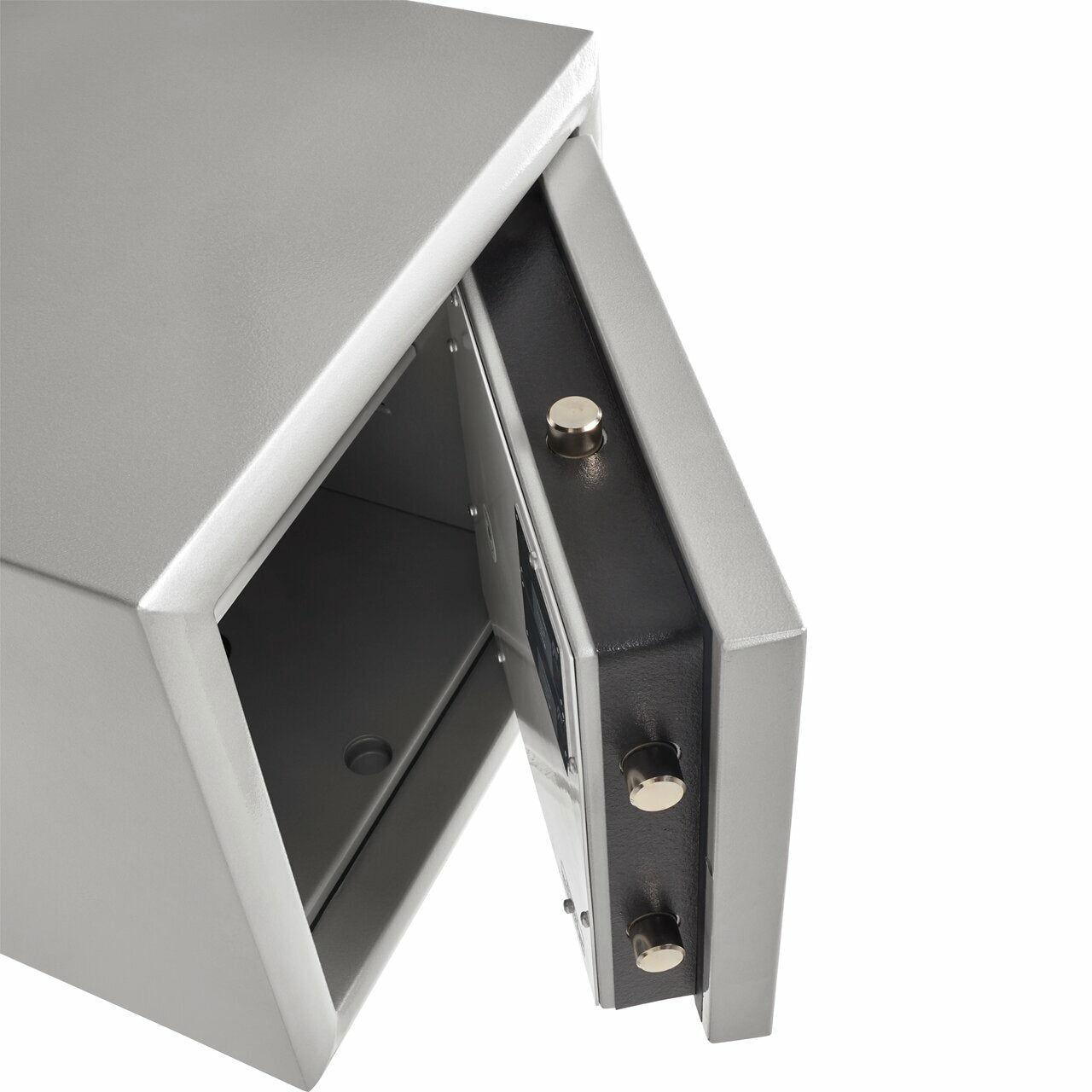

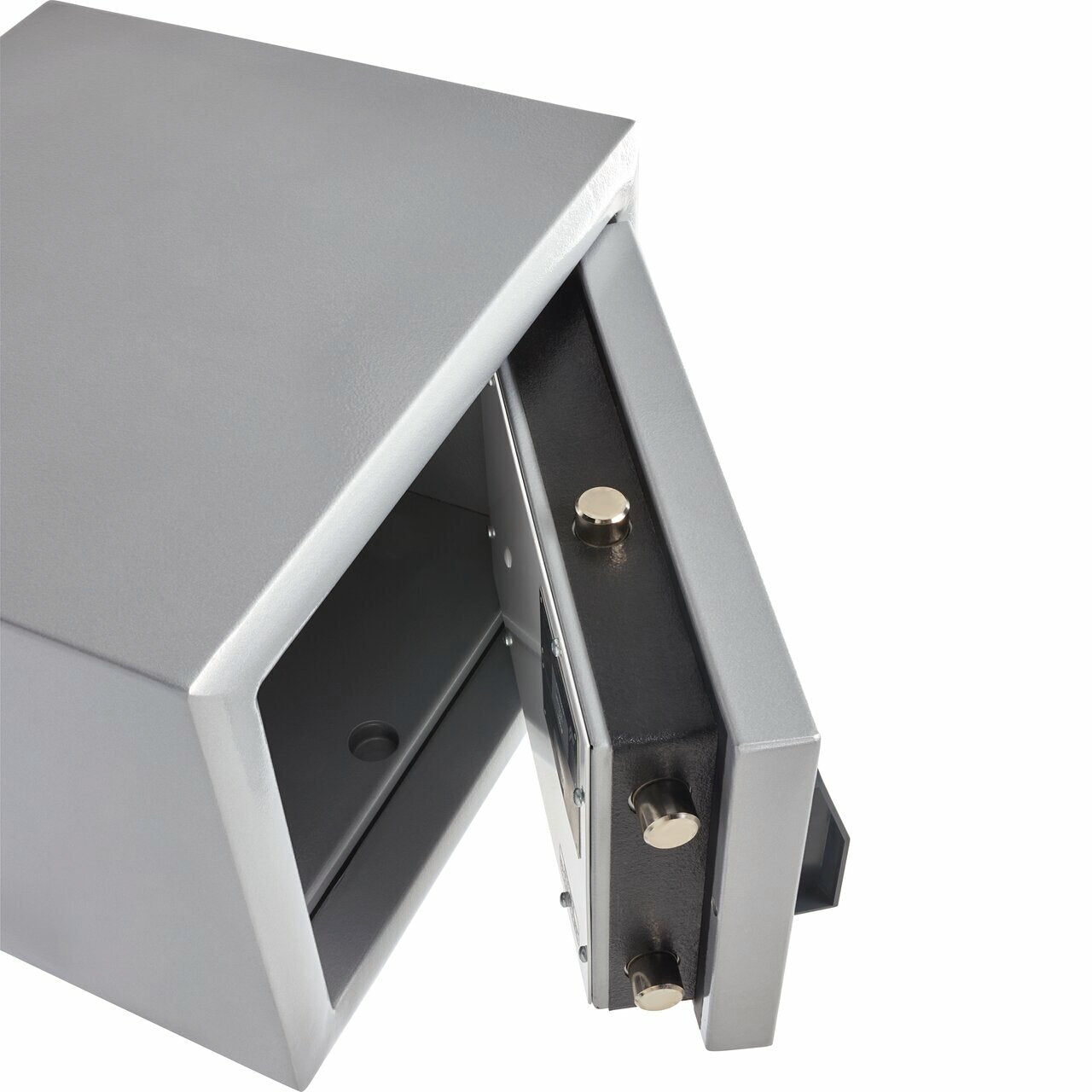

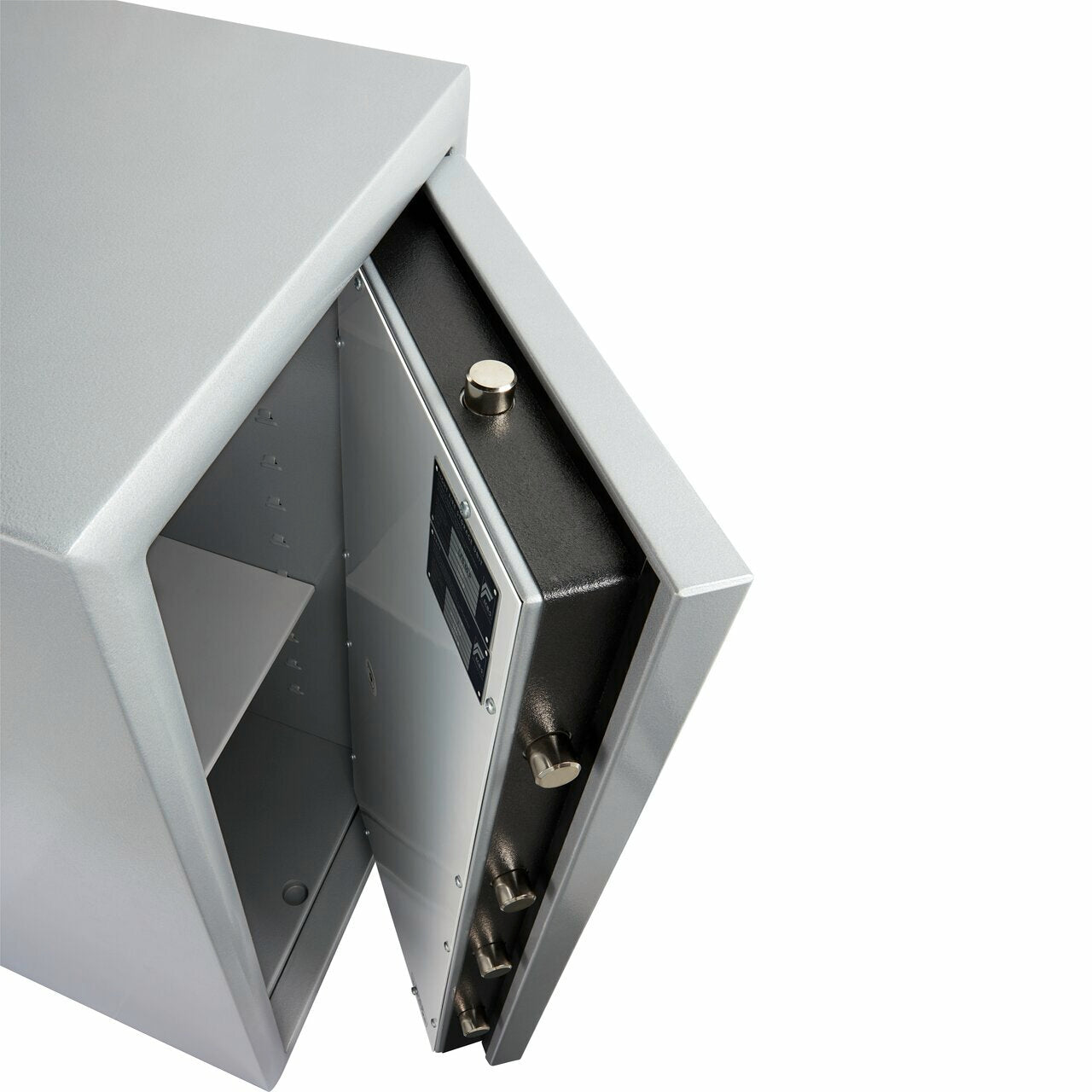

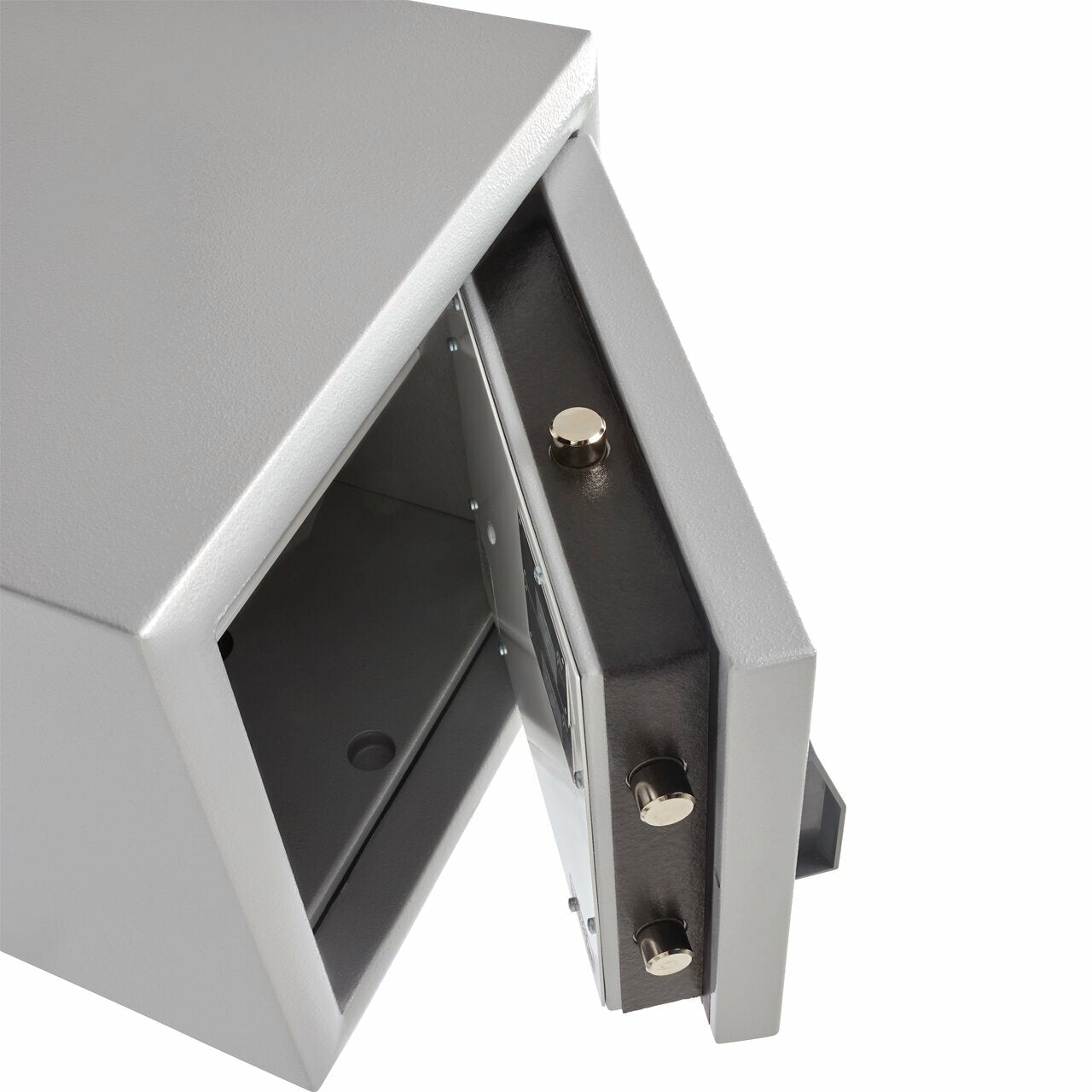

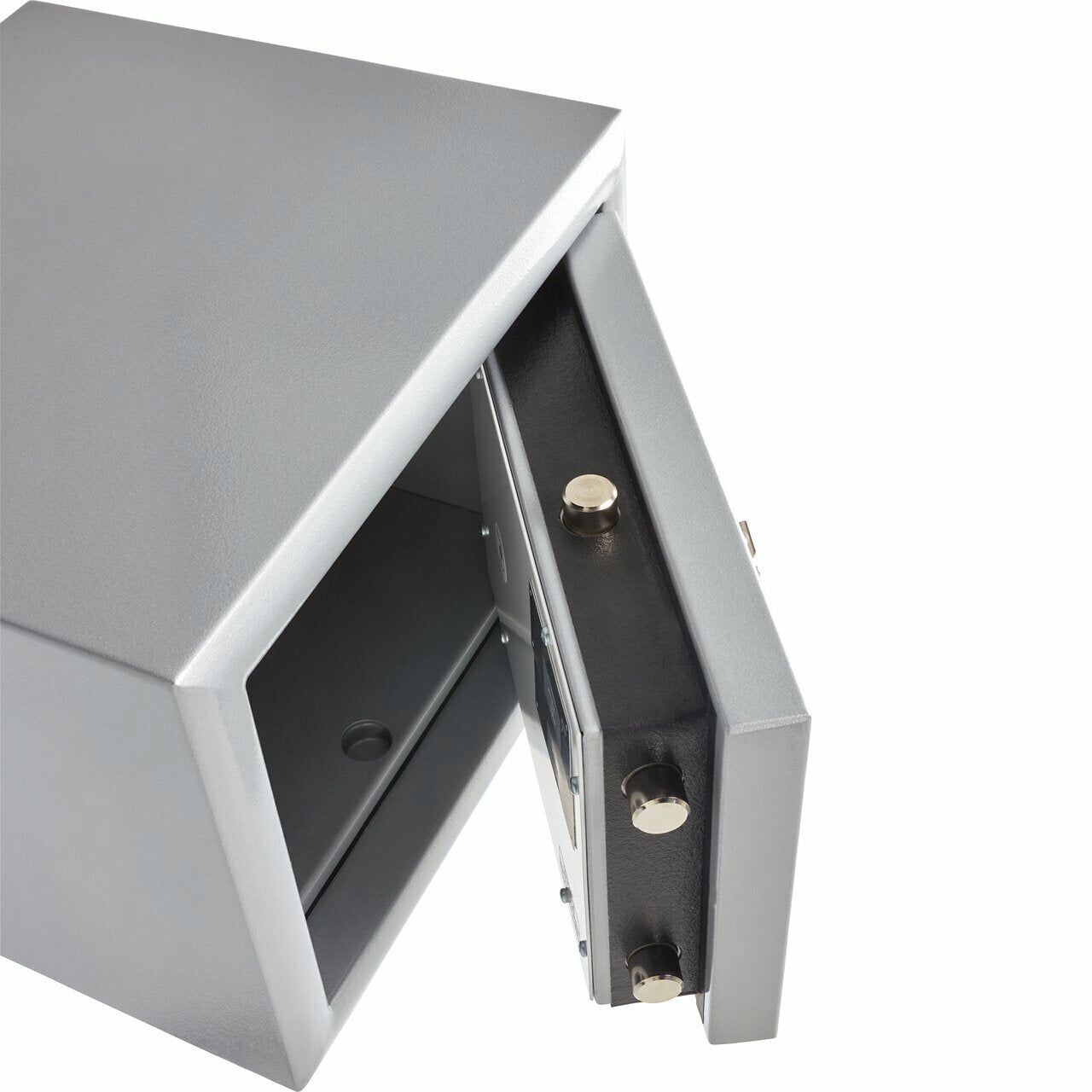

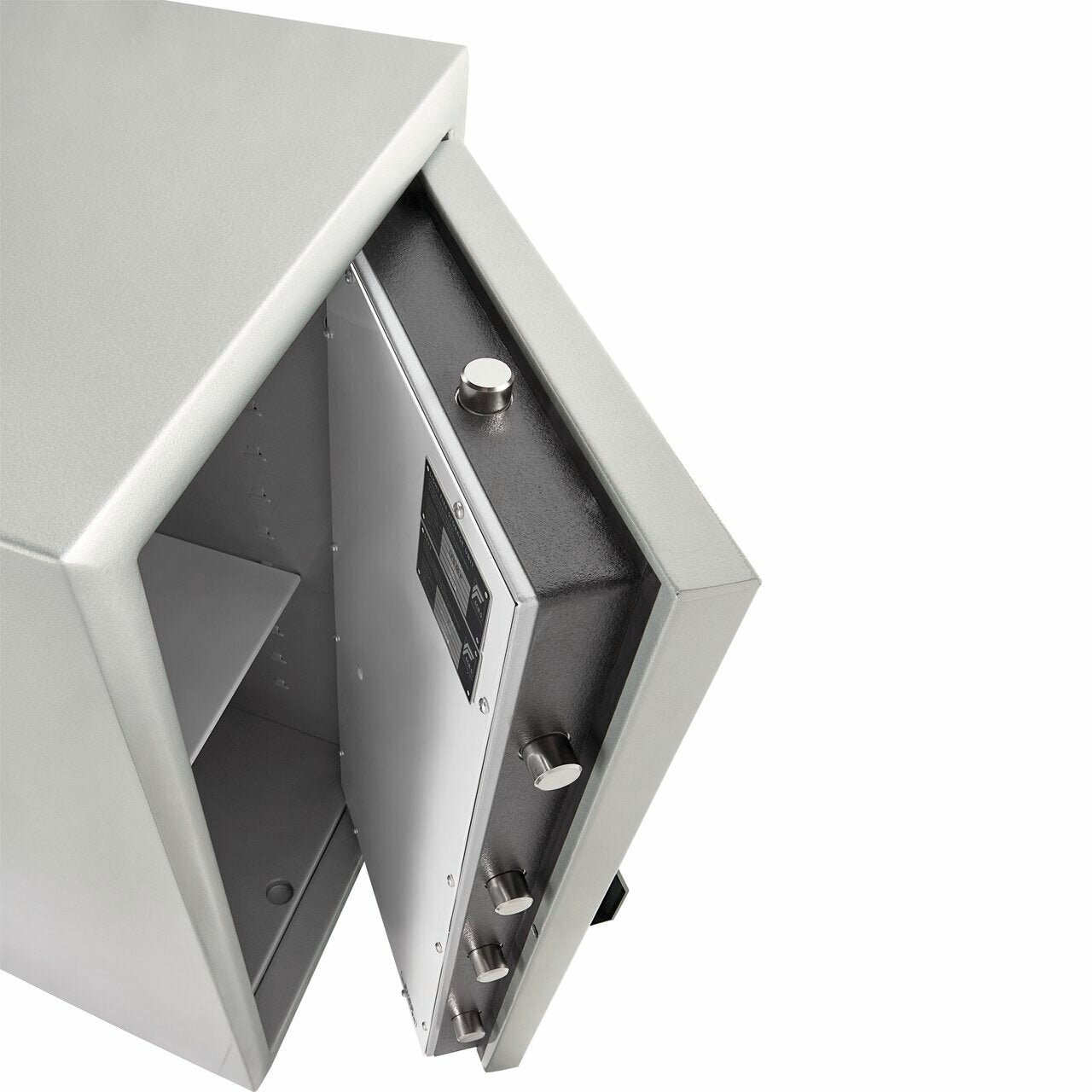

- • 4-sided locking by strong round bolts
- • inset concealed door hinges – stylish design

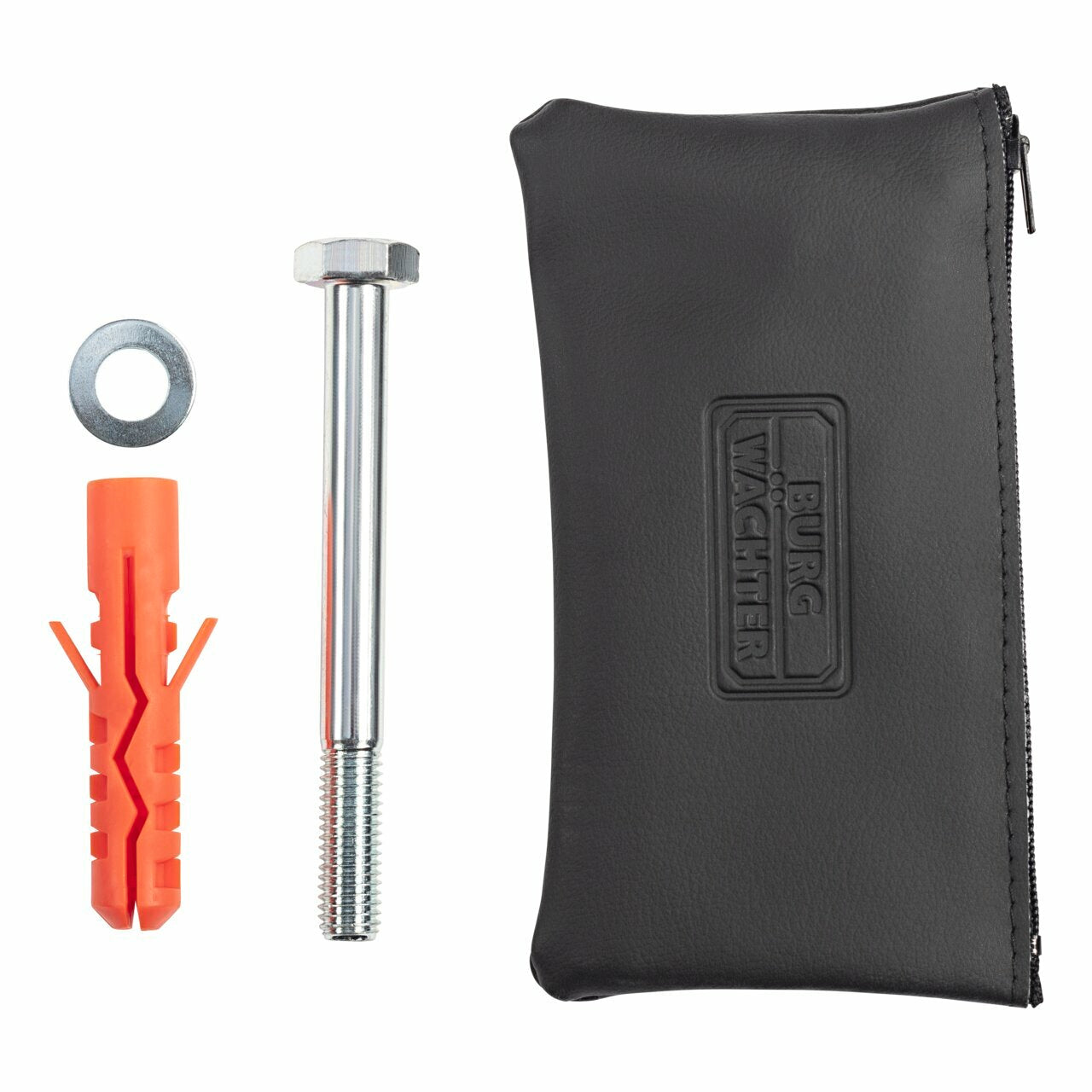

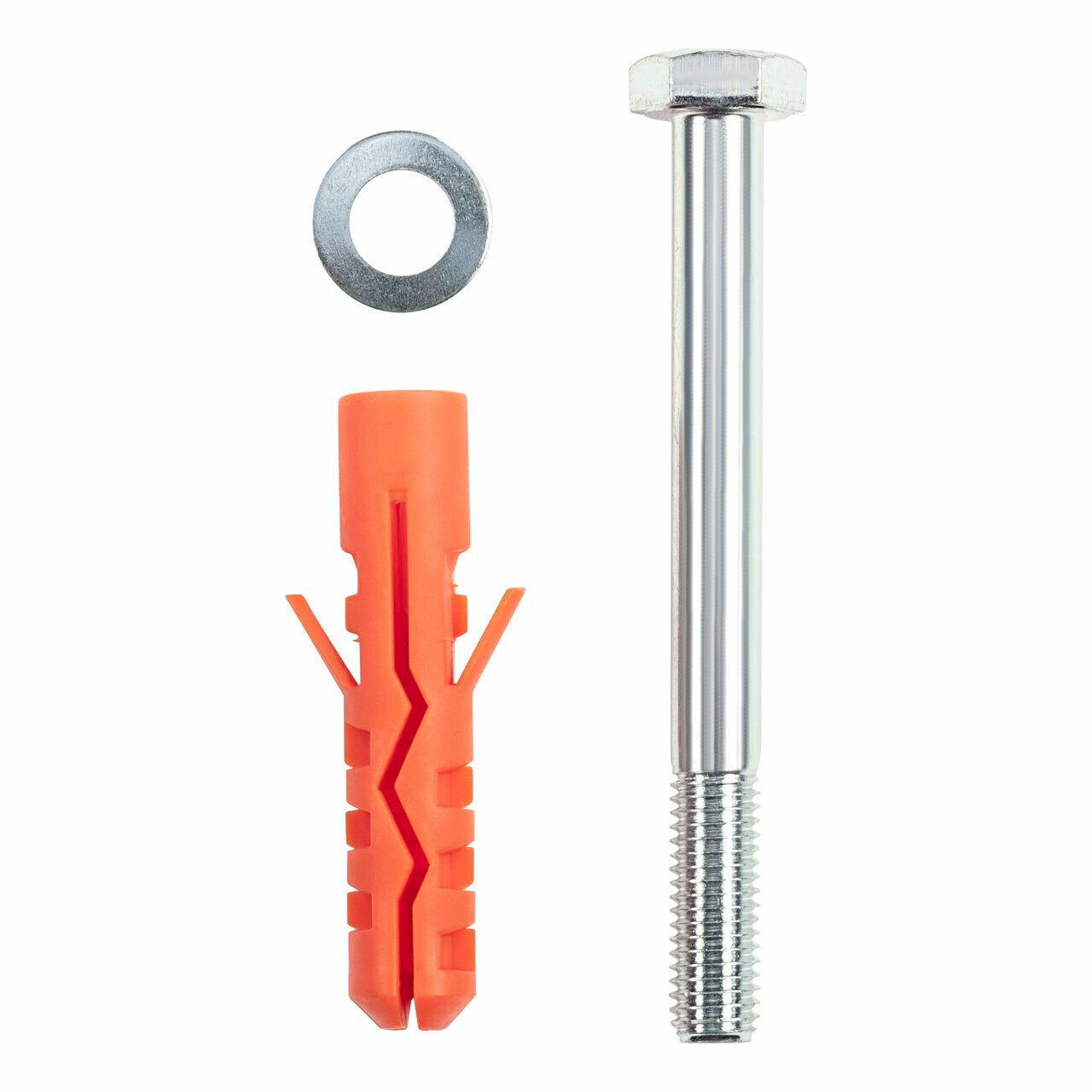

- • prepared for wall and floor anchoring with fixing material
- • security plus: 2 double emergency locking systems, not
- resettable

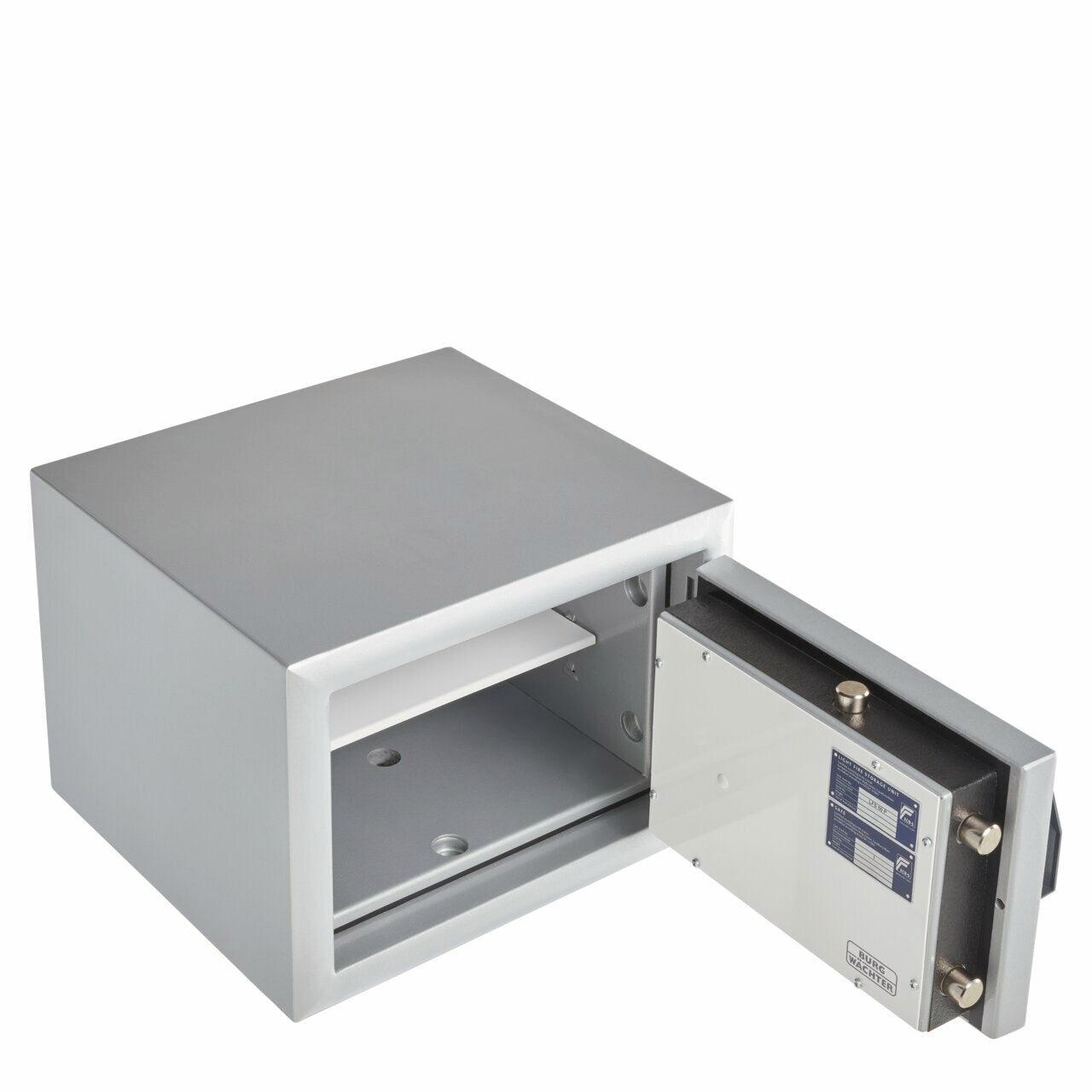

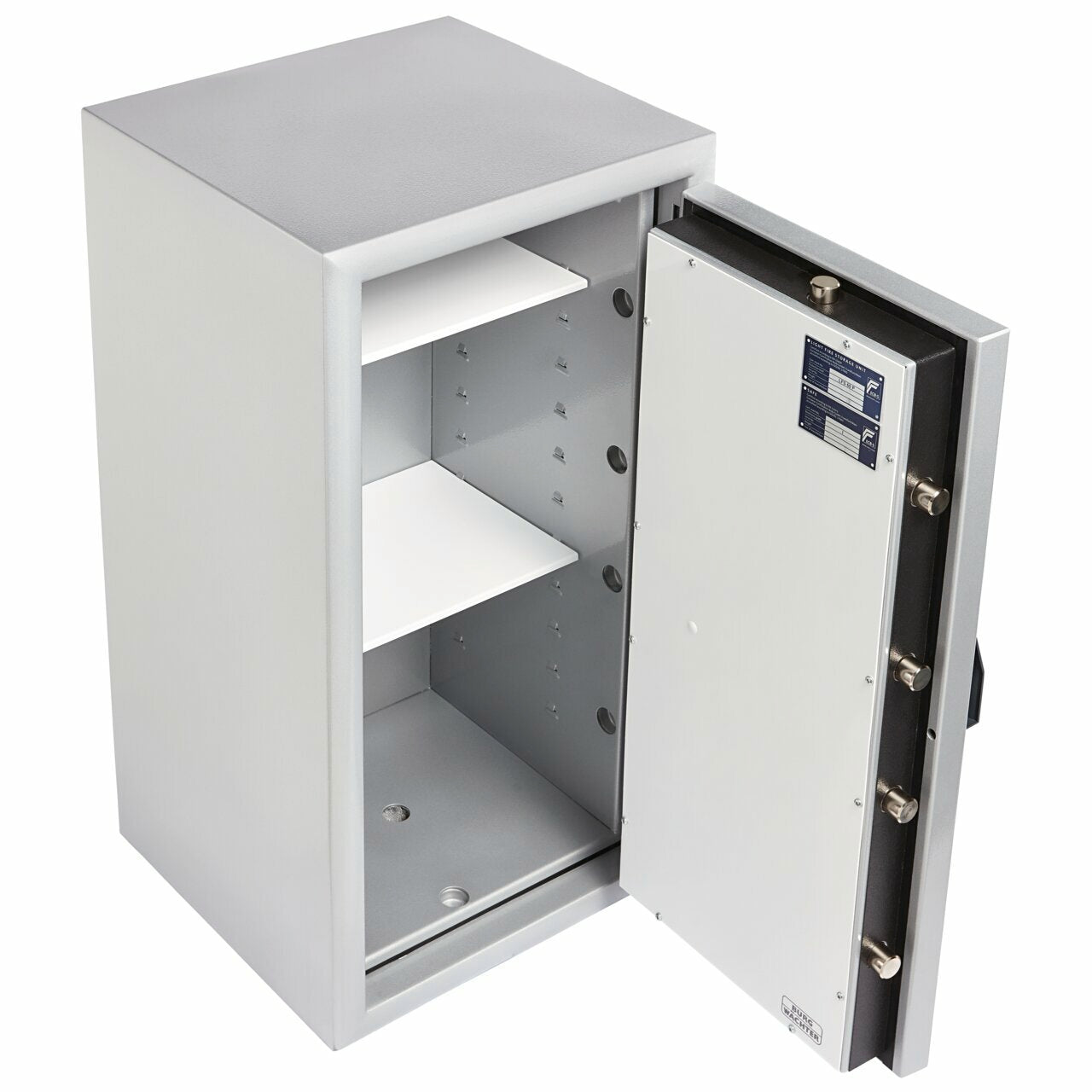

- • convenient depth for common sized files

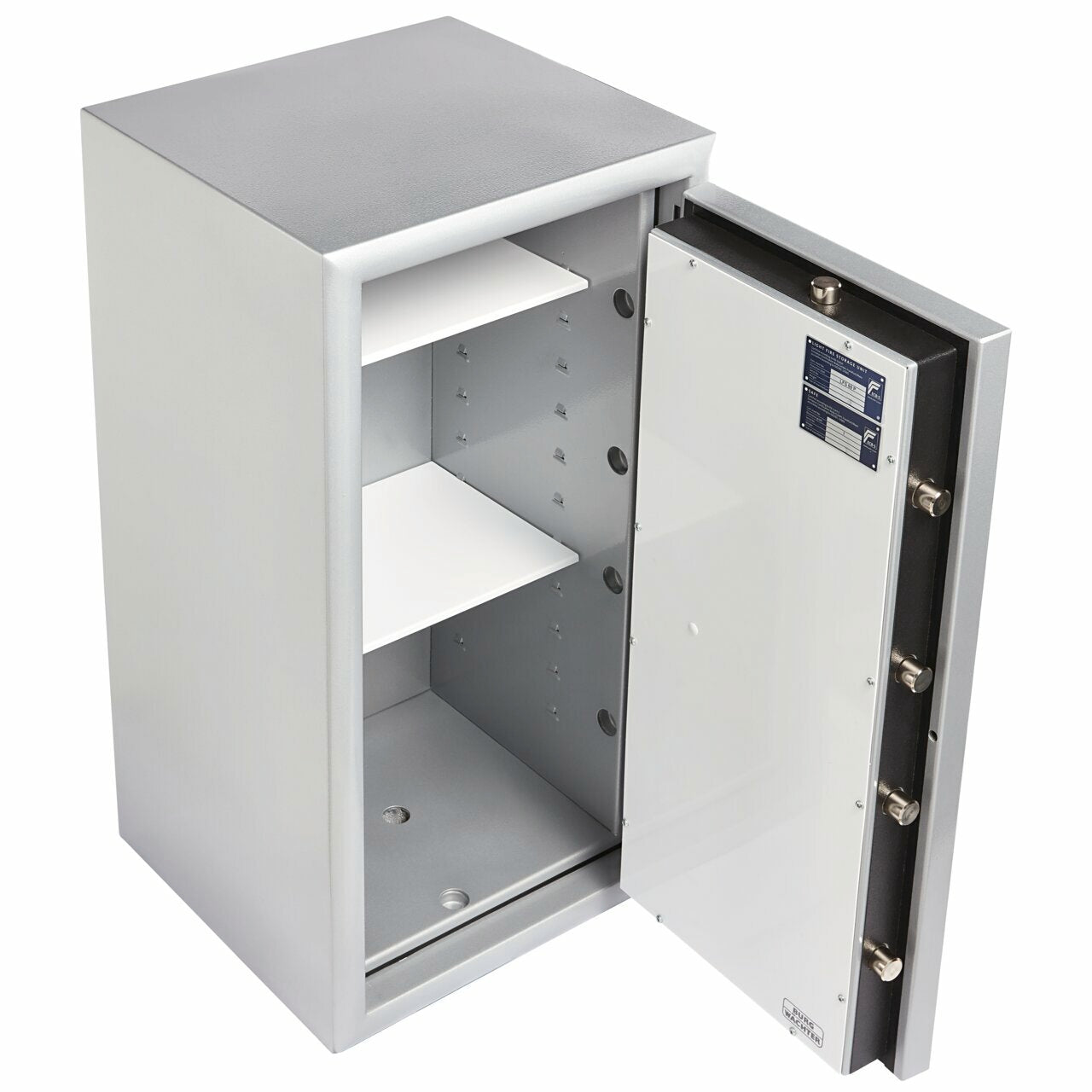

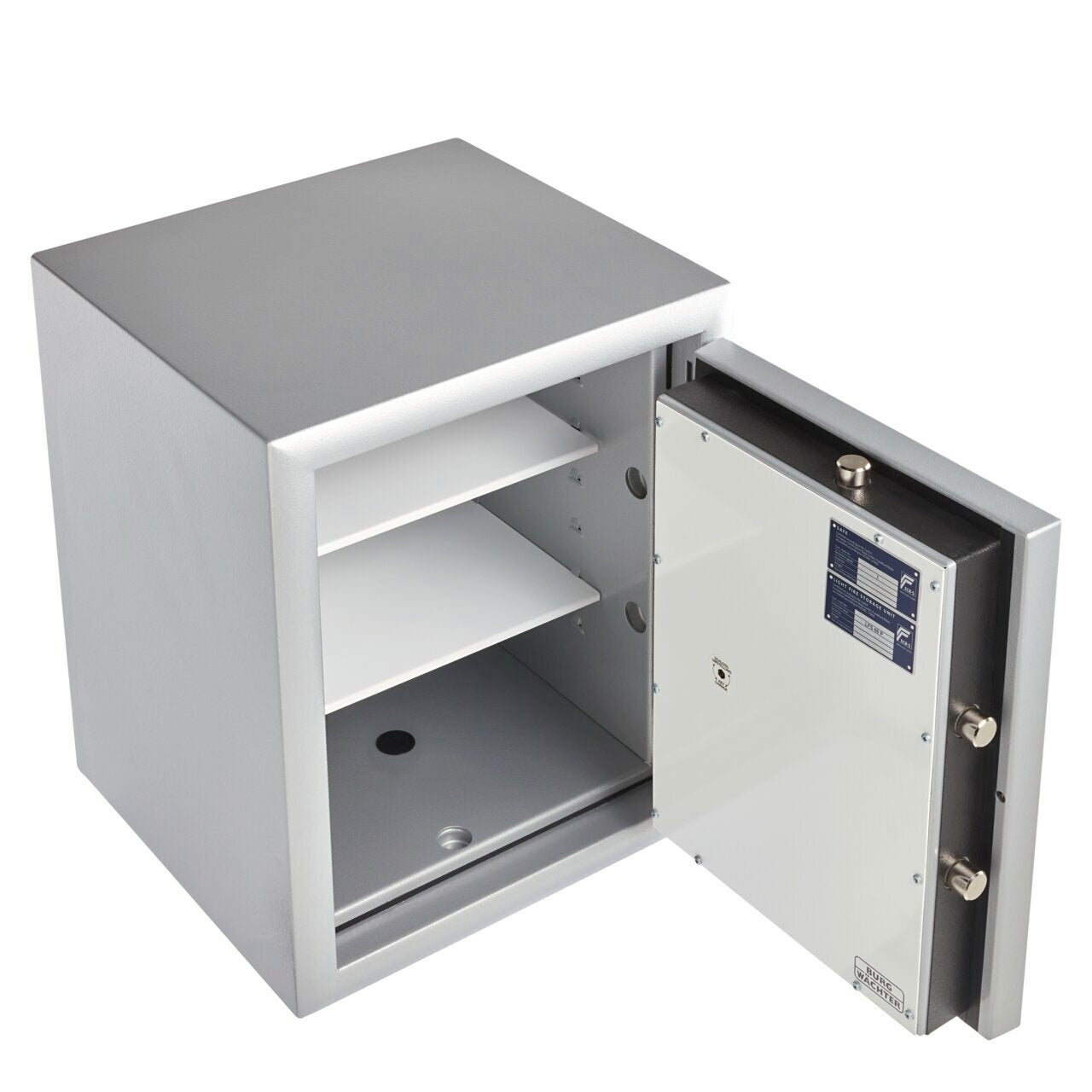

- • (MTD 740 + 750 = 1 shelf each, MTD 760 + 780 = 2 shelves
- each)
- • paintwork: silver metallic, special painting: possible (page 276)
- • intumescent sealing material swells and seals the door in the
- event of fire

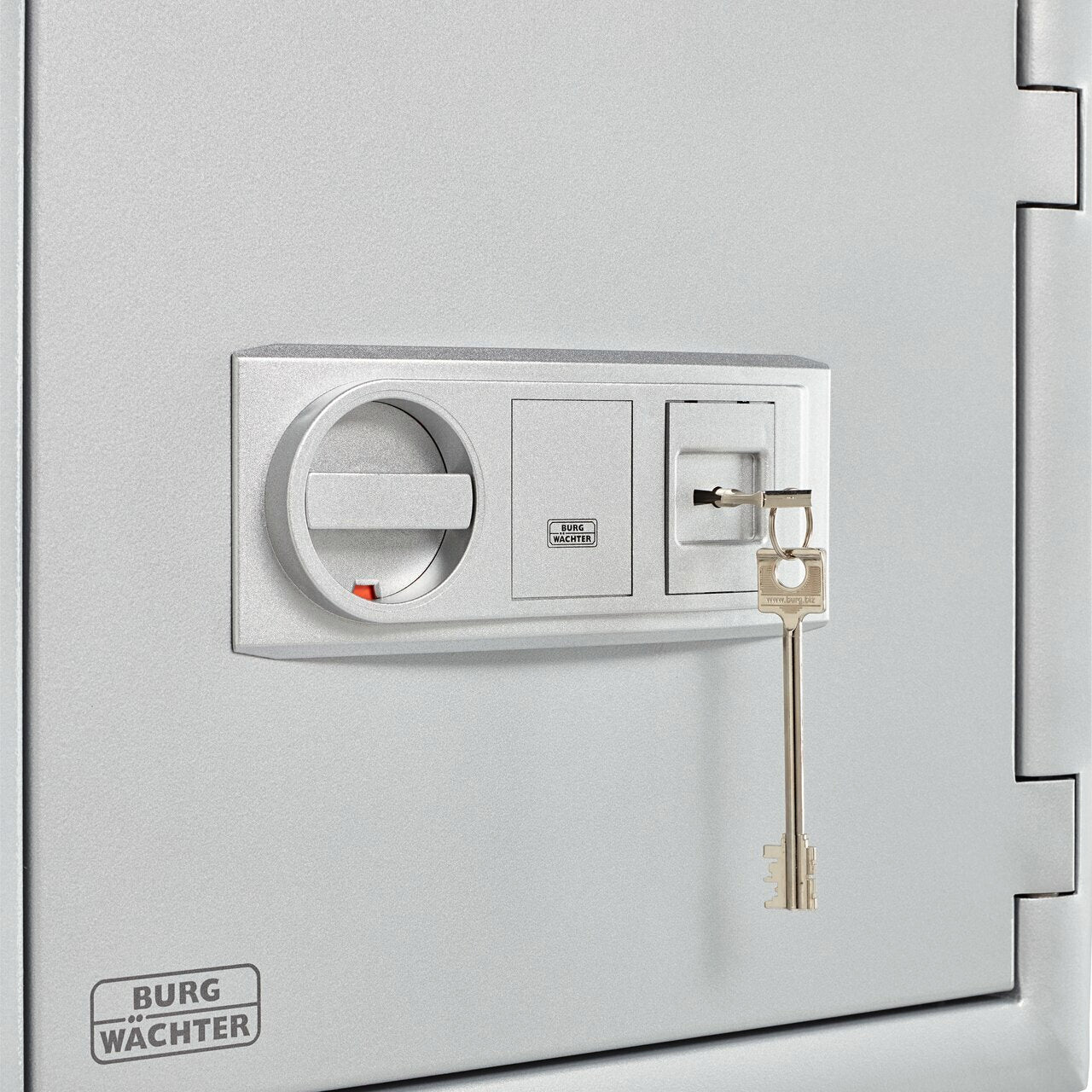

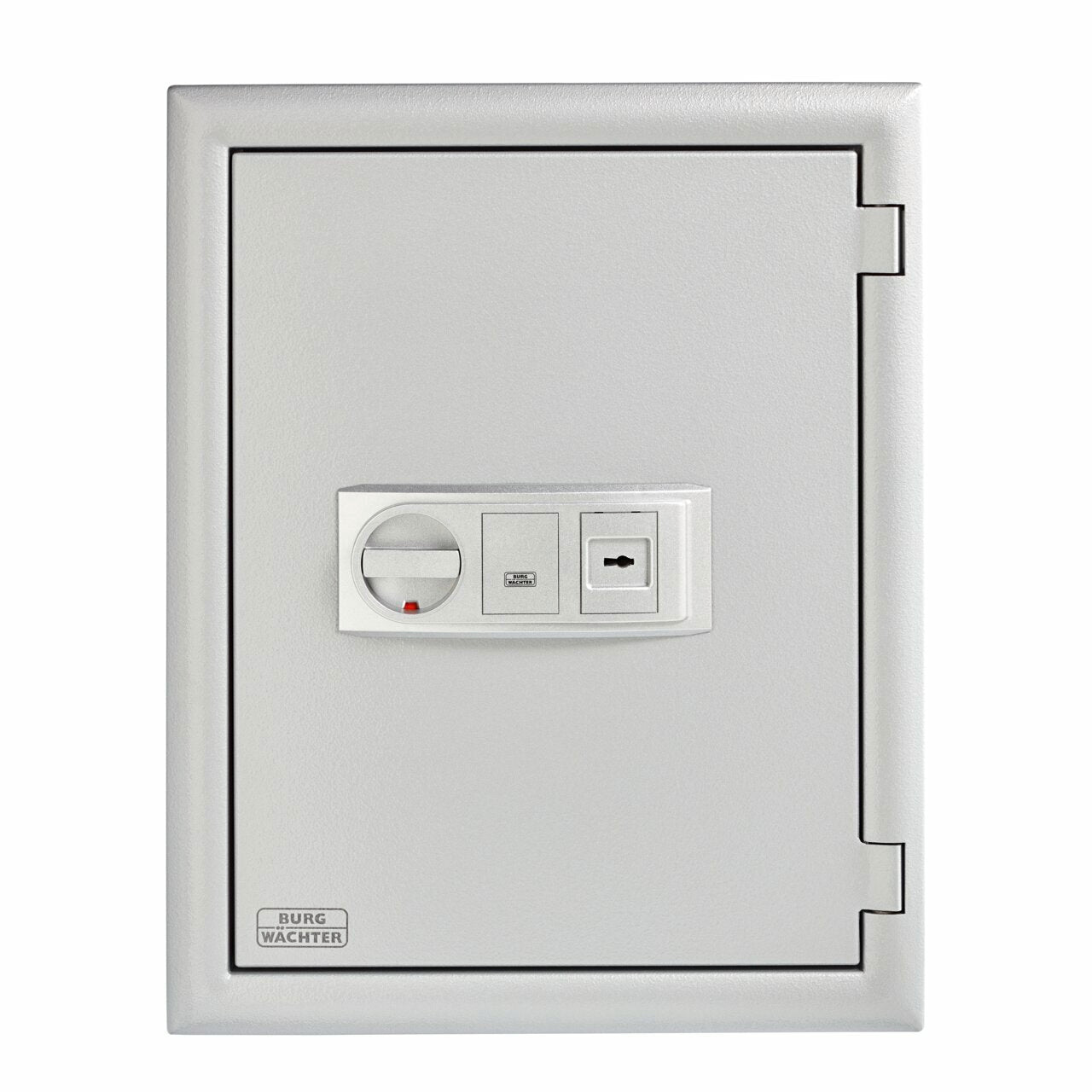

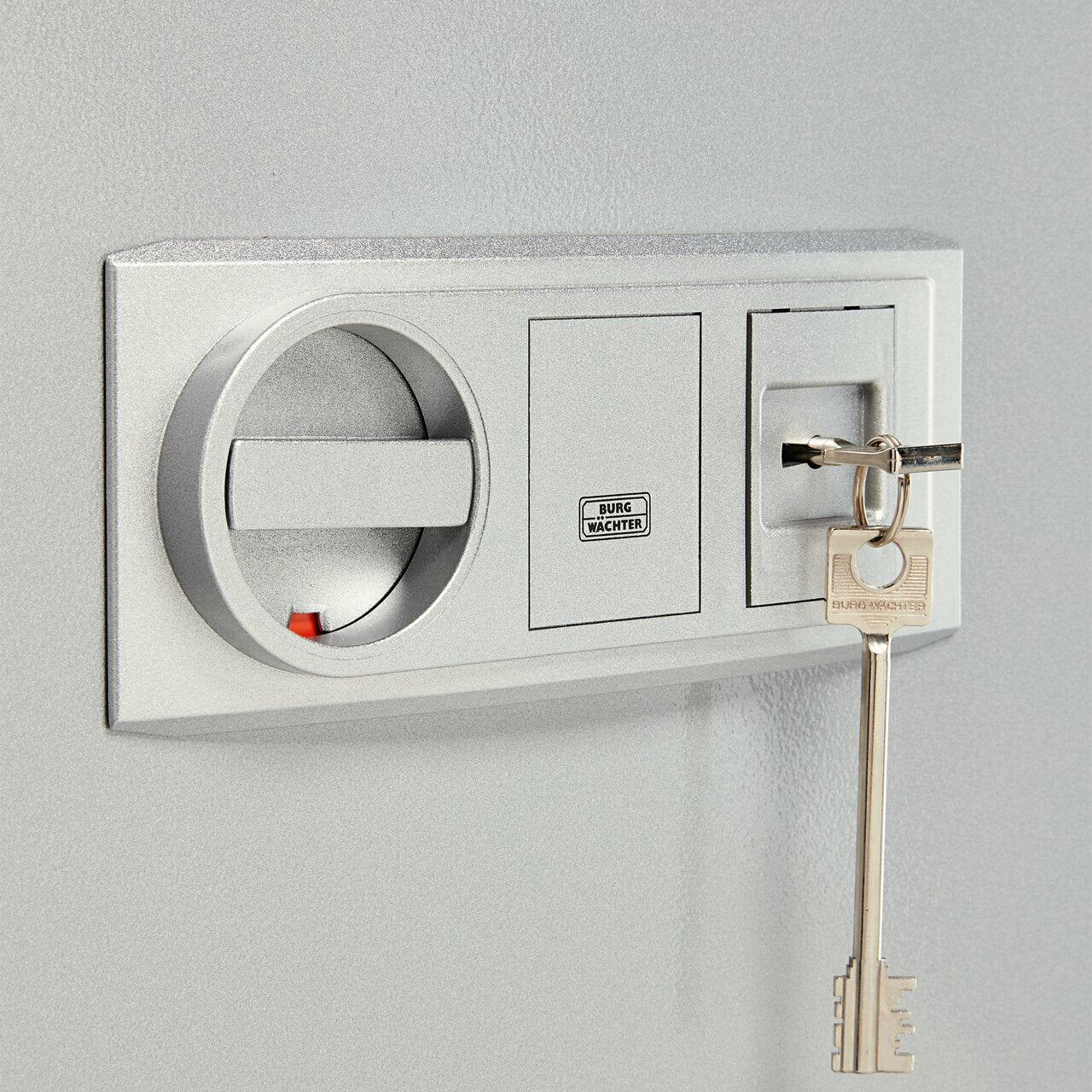

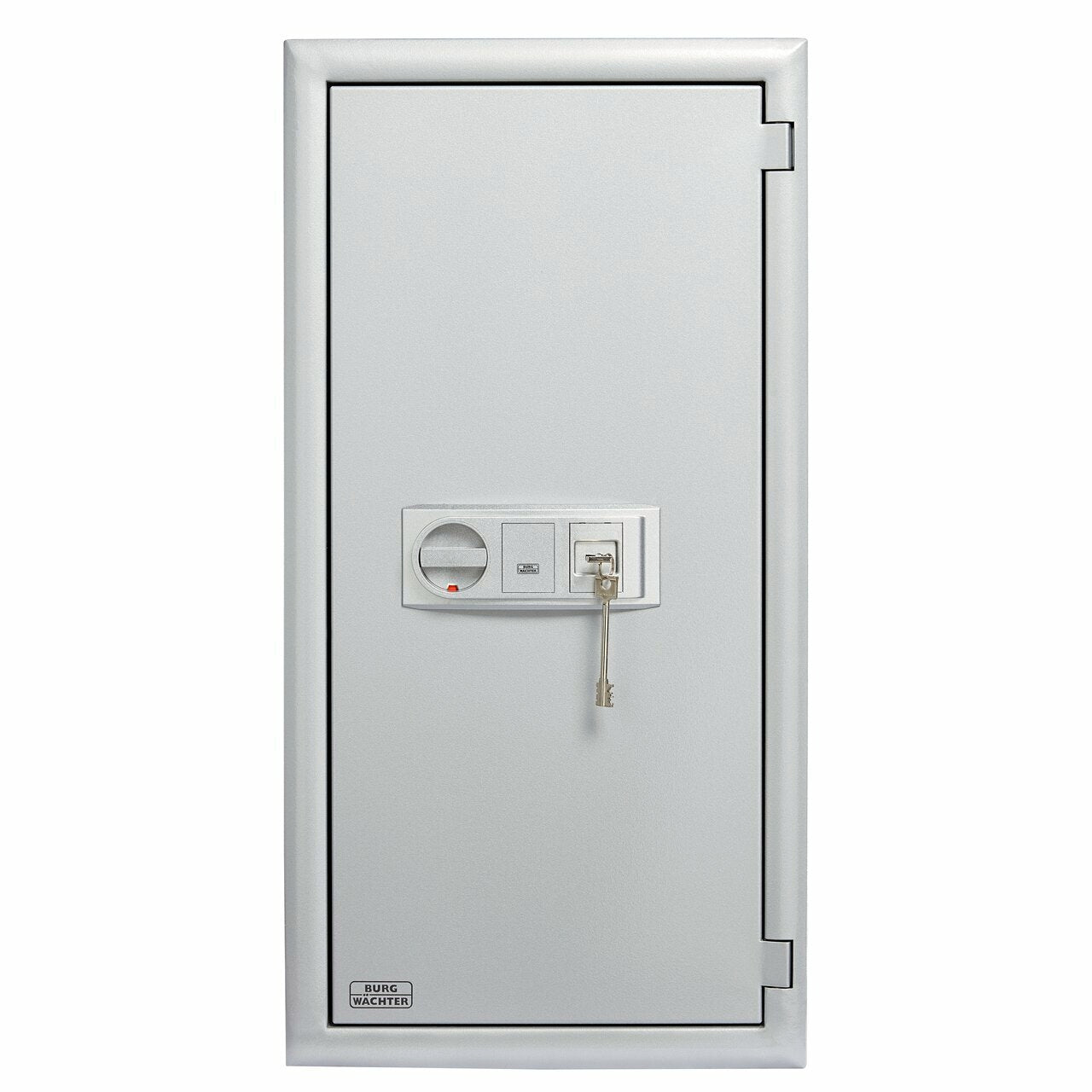

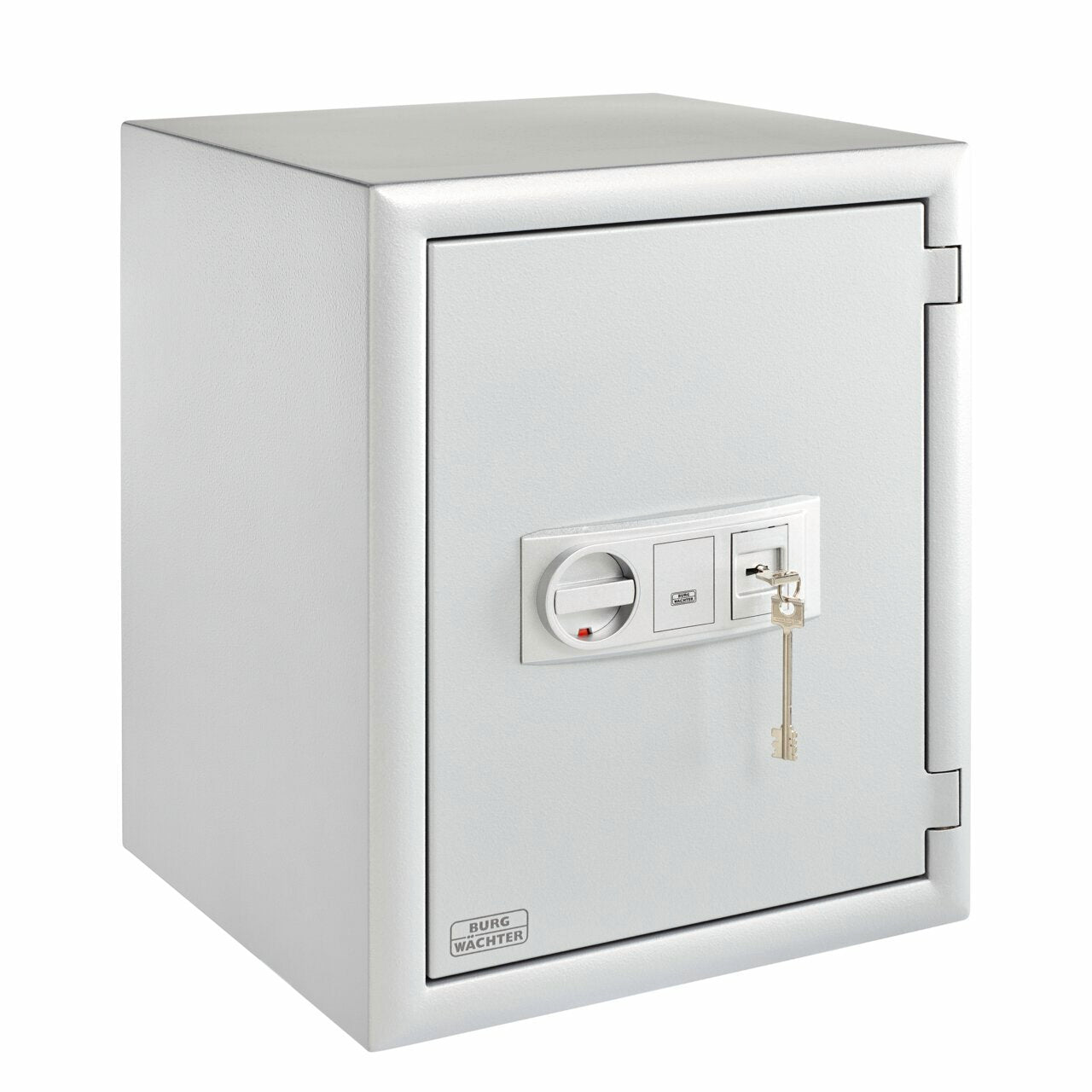

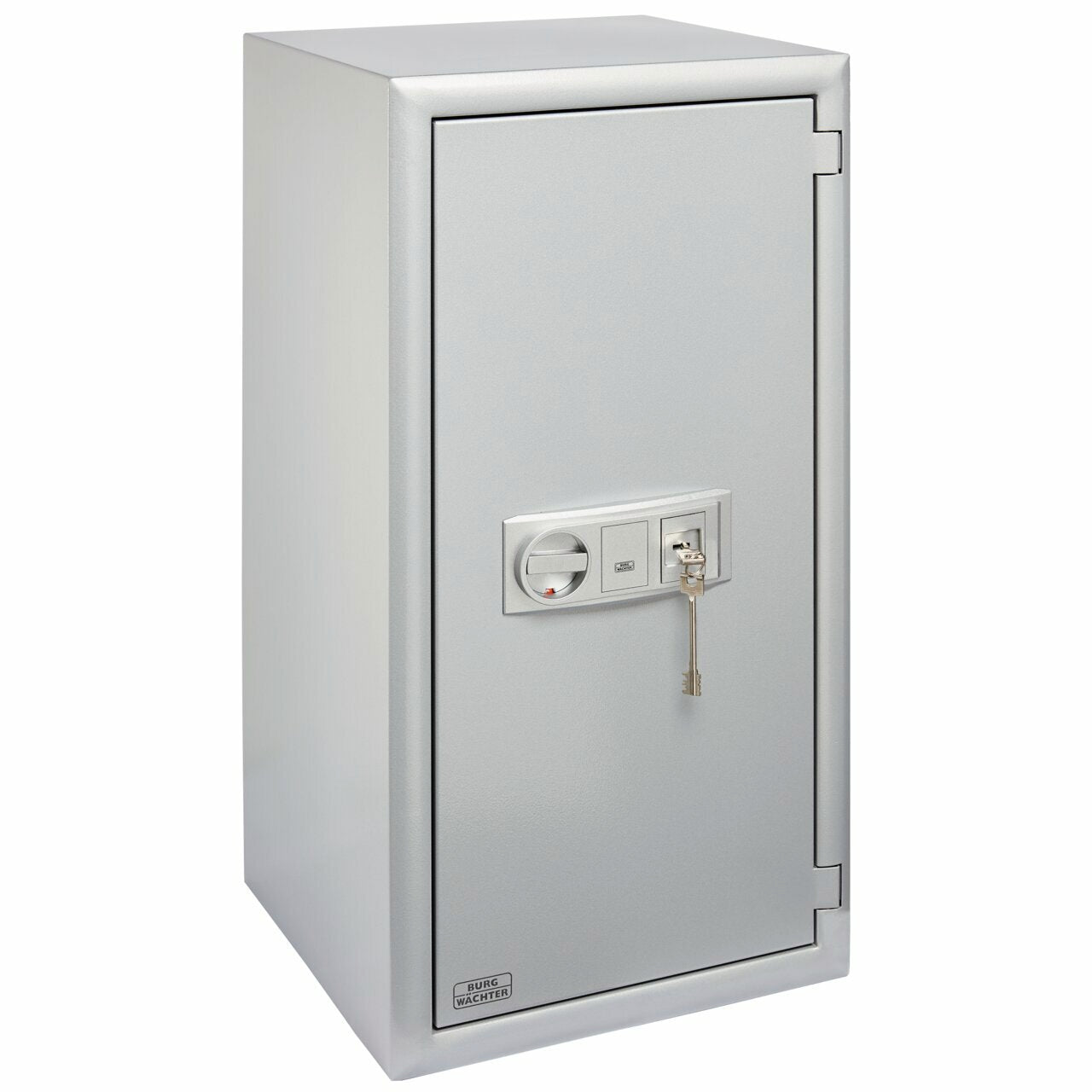

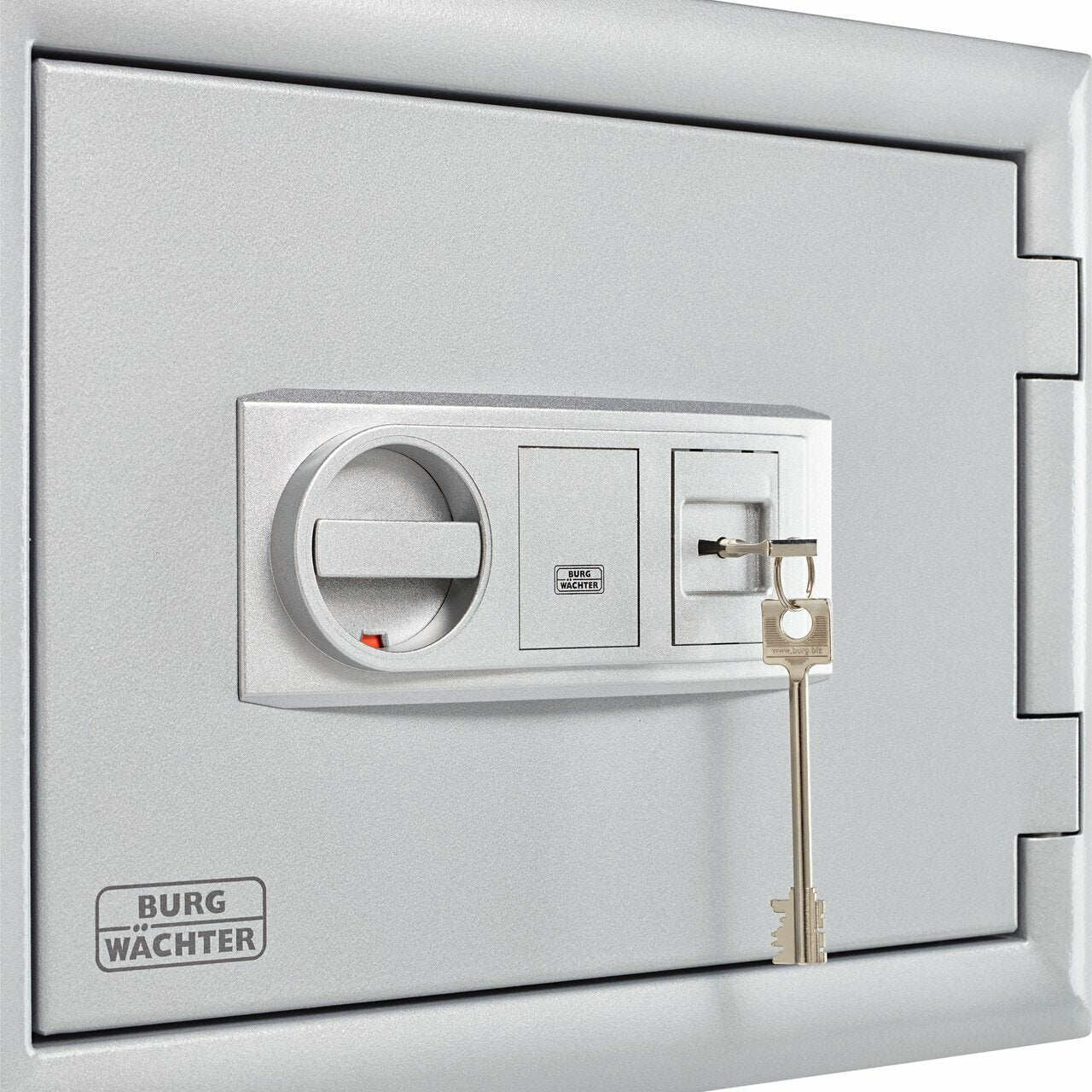

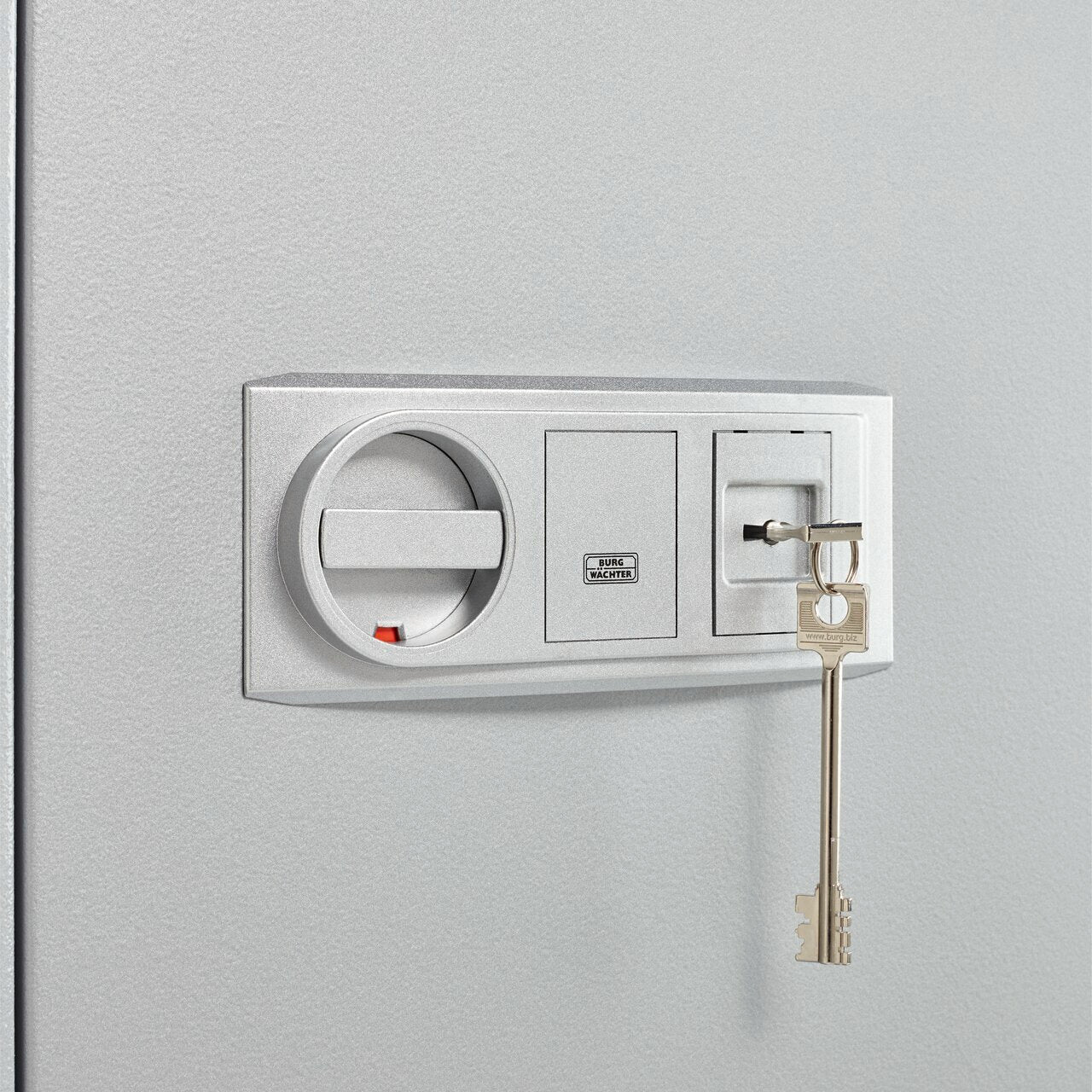

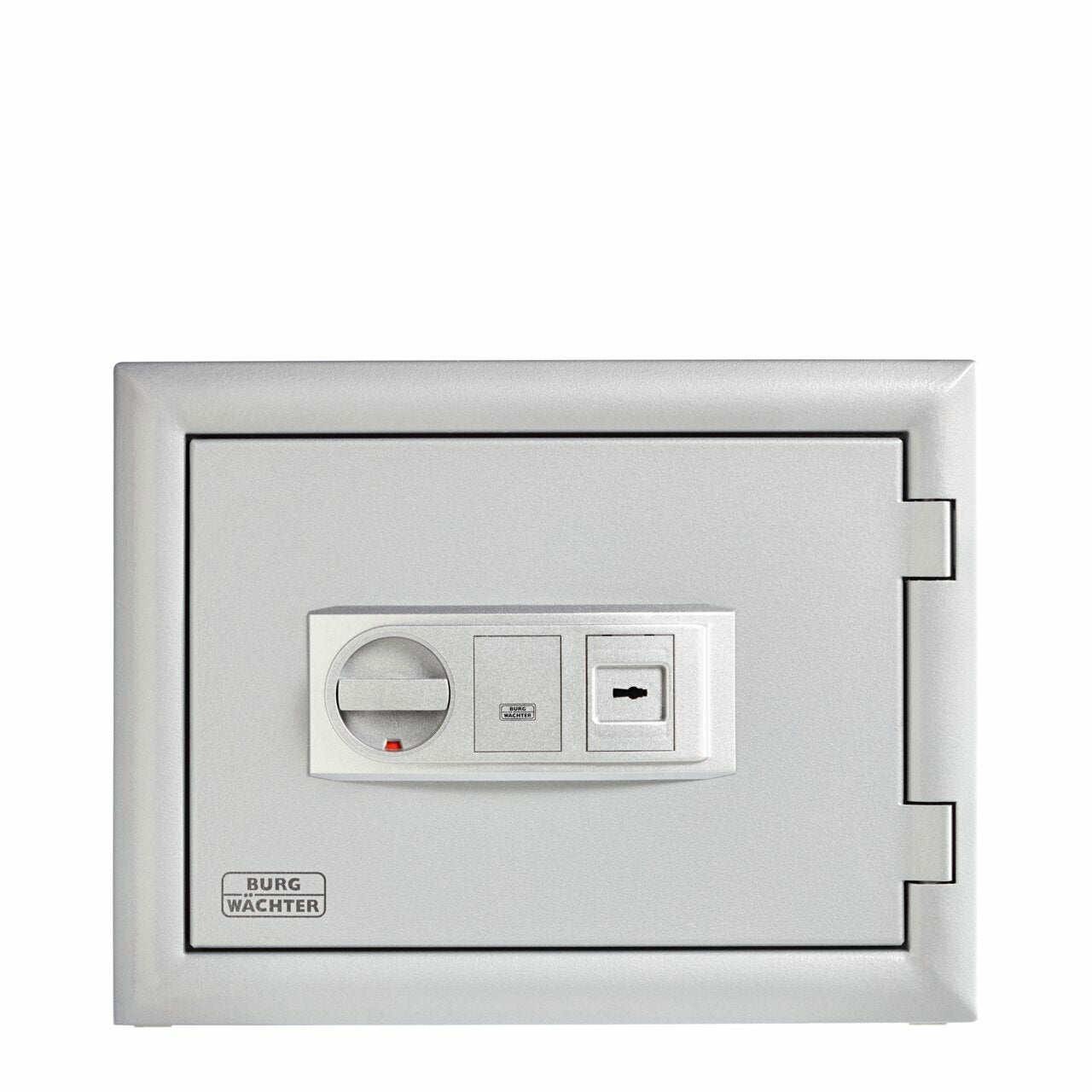

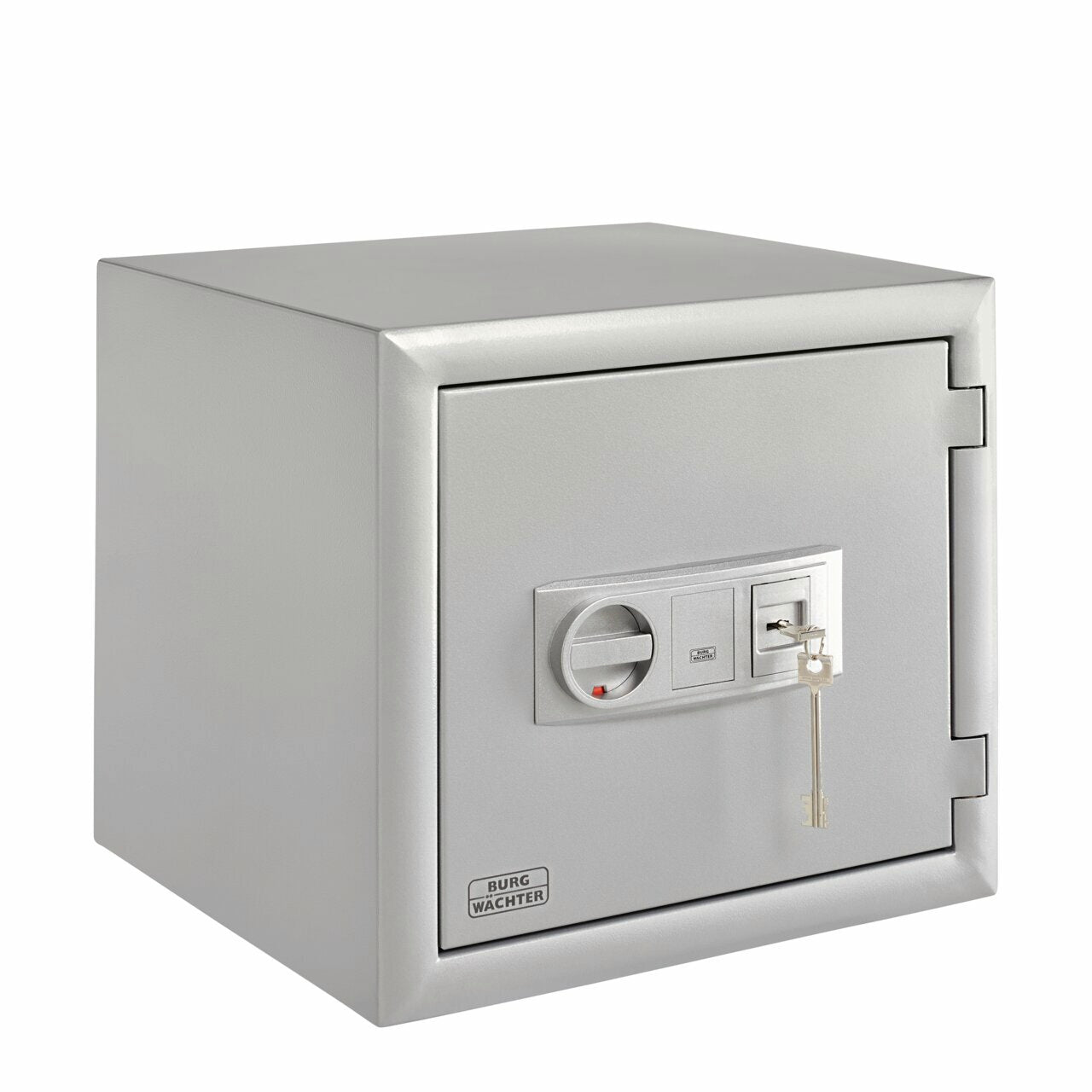

- SecuSafe

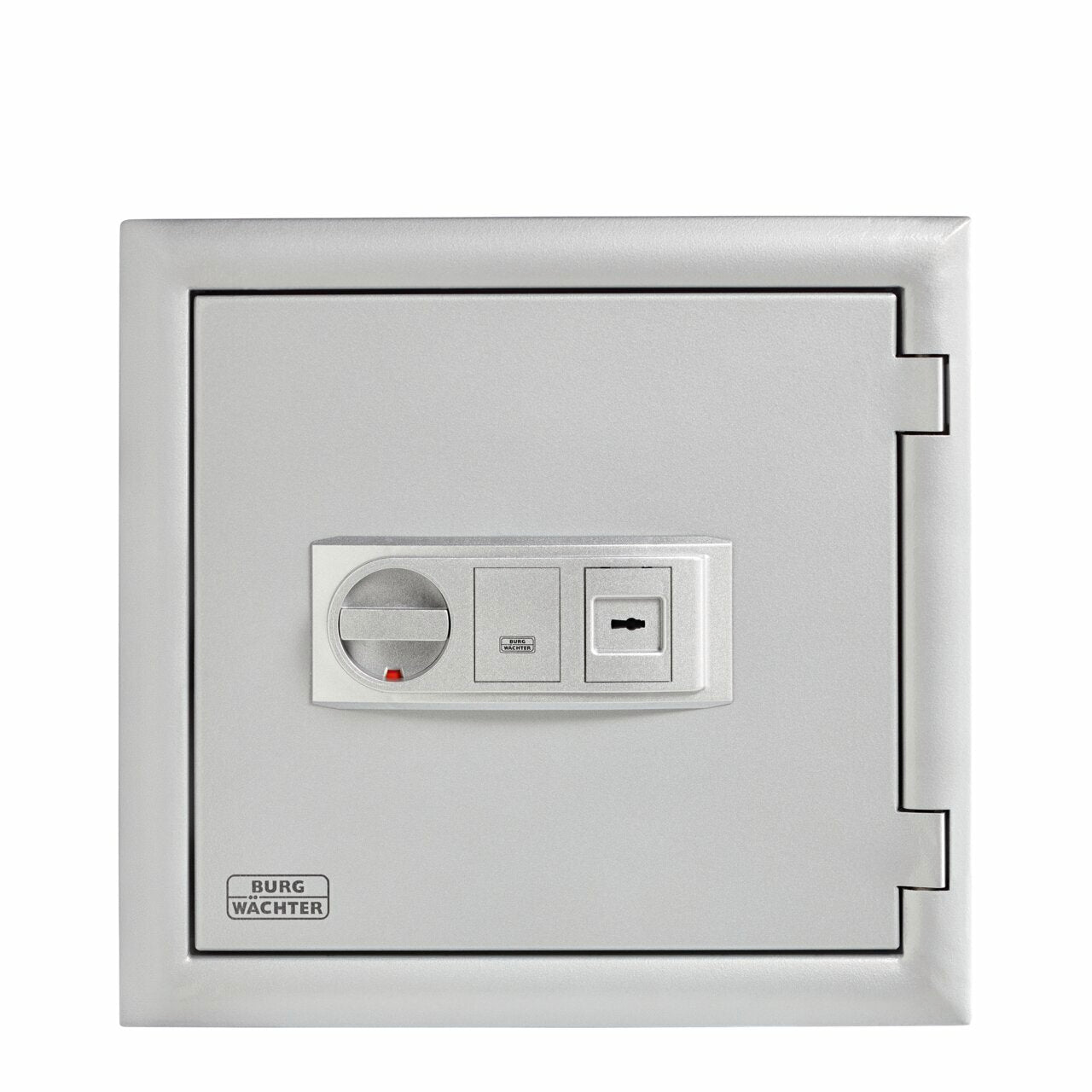

- Resettable high security safe lock
- • Vds tested, ECB·S according to EN 1300 class 2/B
- • 10 levers
- • 50 million key differs
- • lock can be immediately reset to a new key if a key is lost
- • re-keying with an existing safe possible (Example:
- Customer buys another safe and wishes to open both
- safes with one key)
- • available with several keys on customer request (no
- waiting times)
- • for information on spare keys and additional keys
- (page 229)

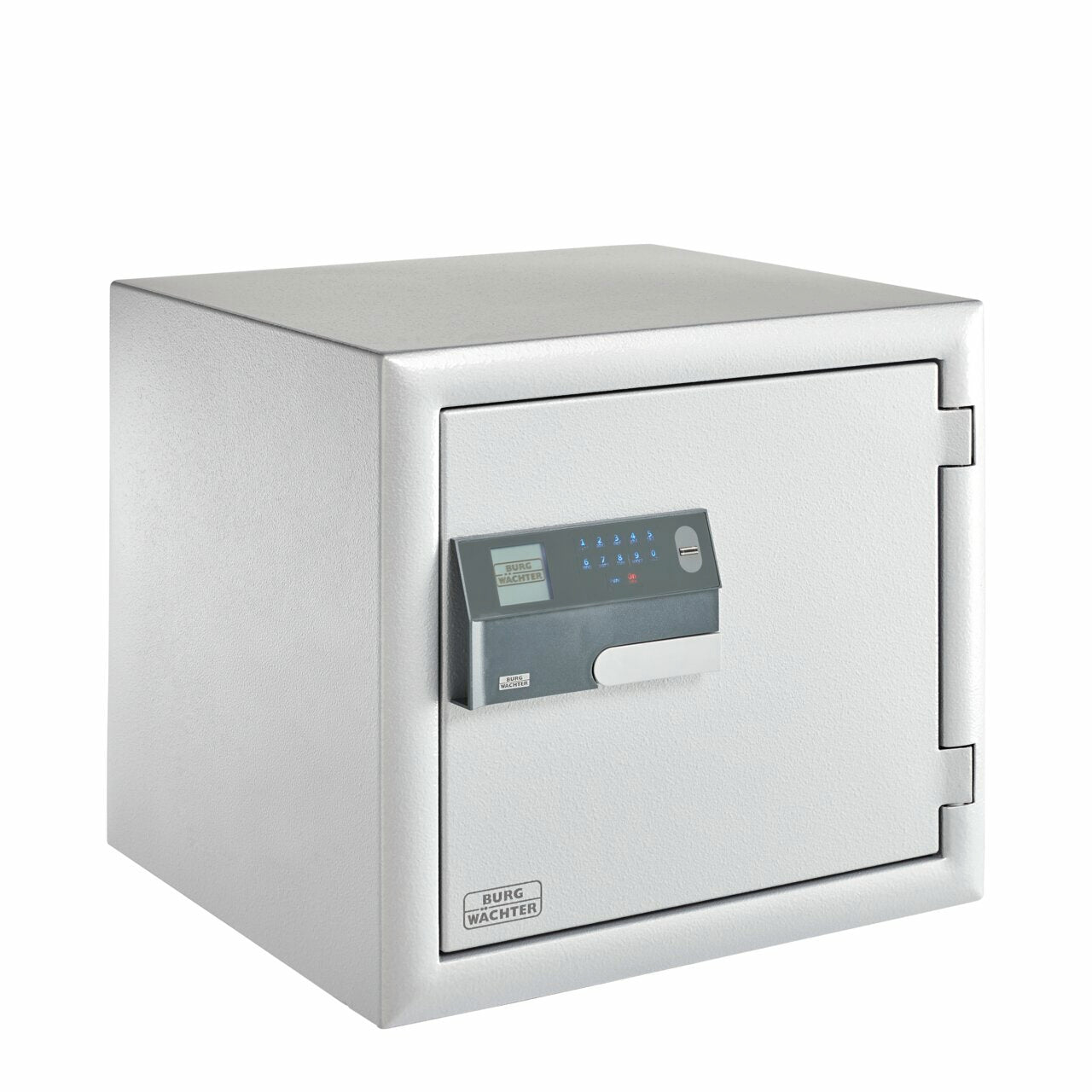

- SecuTronic
- New electronics with graphic display and fingerprint
- scanner
- • ECB·S safe lock with fingerprint module EN 1300 class B
- • programmable electronic combination lock
- • 1,000,000 different codes possible
- • 1 admin code, up to 9 user codes and up to 20
- fingerprints can be programmed
- • the fingerprint scanner features "Fake Fingerprint
- Detection" to identify only live fingers. It will not identify
- fake or copied fingerprints
- • modern, precise and highly sensitive state-of-the-art
- authentication process
- • timer functions and assignment of rights
- Special painting:
- Special paint finishes are available in all RAL and
- brilliant colours.

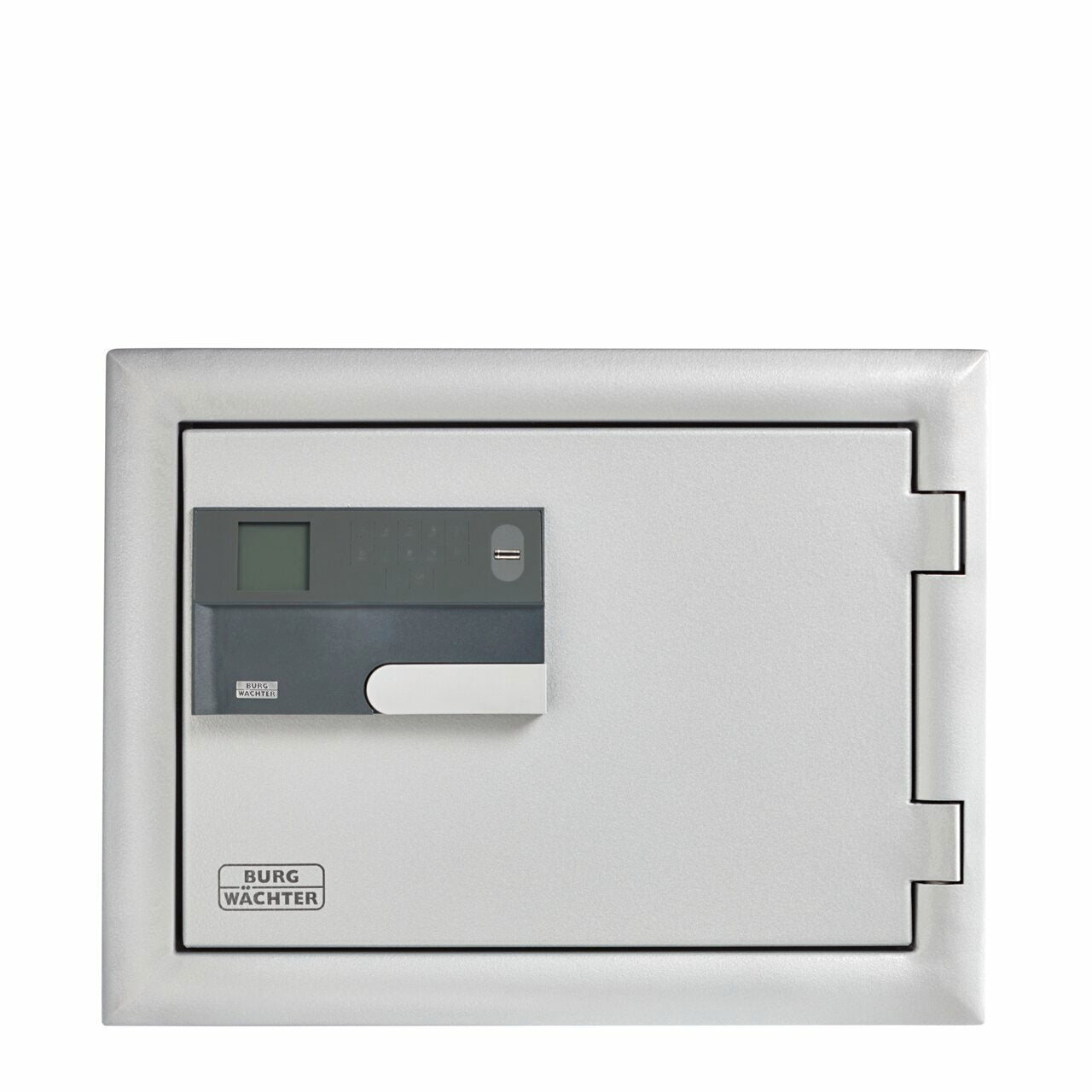

- See page 276 for further details. Version E FP “SecuTronic”
- Programmable electronic lock with
- fingerprint module
- • ECB·S certified according to class B
- • graphic display with 1 admin code,
- up to 9 user codes and up to 20
- fingerprints
- • timer functions and assignment of rights
- • incl. 4 Mignon LR 06 AA batteries
- • locking armature protrudes 20 mm
- RESISTANCE GRADE I, FIRE RESISTANCE GRADE LFS 60
- • type tested and supervised security by ECB·S
- • certified protection against burglary according to
- EN 1143-1
- • certified fire protection according to EN 15659, as of:
- 2009, 60 minutes fire protection for paper
- • 3 walled body with armoured, fireproof insulation
- • FPC buildup (Fire Protection Concrete) insulation in body
- and door
- • special back wall construction with additional
- reinforcement.
- Advantage: low overall depth due to slim construction
- • optimum use of interior space due to slim body
- construction
- • 4 walled inset door
- • extensive reinforcement in front of bolts and locking bolts
- • 4-sided locking by strong round bolts
- • inset concealed door hinges – stylish design
- • prepared for wall and floor anchoring with fixing material
- • security plus: 2 double emergency locking systems, not
- resettable
- • convenient depth for common sized files
- • (MTD 740 + 750 = 1 shelf each, MTD 760 + 780 = 2 shelves
- each)
- • paintwork: silver metallic, special painting: possible (page 276)
- • intumescent sealing material swells and seals the door in the
- event of fire
- SecuSafe
- Resettable high security safe lock
- • Vds tested, ECB·S according to EN 1300 class 2/B
- • 10 levers
- • 50 million key differs
- • lock can be immediately reset to a new key if a key is lost
- • re-keying with an existing safe possible (Example:
- Customer buys another safe and wishes to open both
- safes with one key)
- • available with several keys on customer request (no
- waiting times)
- • for information on spare keys and additional keys
- (page 229)
- SecuTronic
- New electronics with graphic display and fingerprint
- scanner
- • ECB·S safe lock with fingerprint module EN 1300 class B
- • programmable electronic combination lock
- • 1,000,000 different codes possible
- • 1 admin code, up to 9 user codes and up to 20
- fingerprints can be programmed
- • the fingerprint scanner features "Fake Fingerprint
- Detection" to identify only live fingers. It will not identify
- fake or copied fingerprints
- • modern, precise and highly sensitive state-of-the-art
- authentication process
- • timer functions and assignment of rights
- Special painting:
- Special paint finishes are available in all RAL and
- brilliant colours.

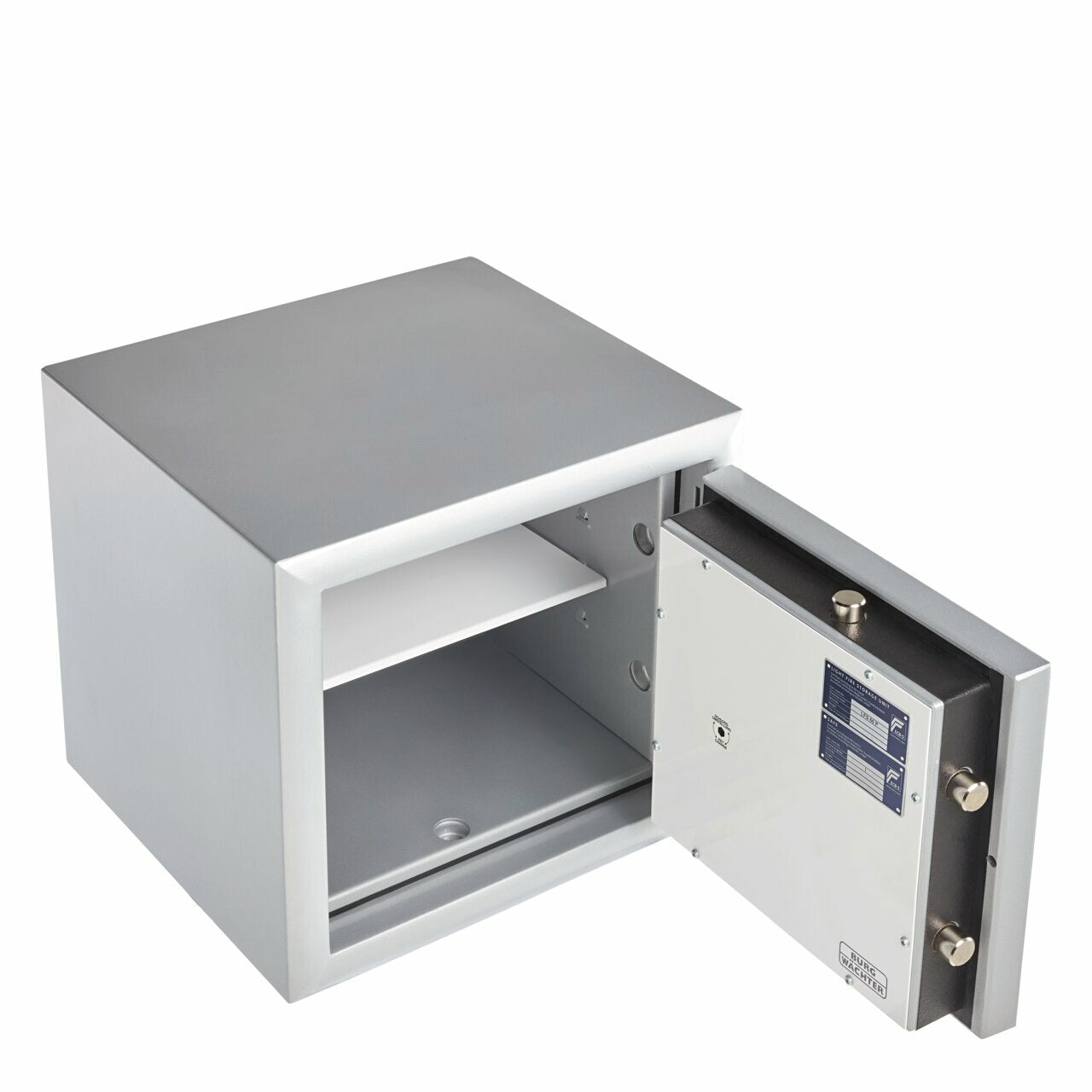

- See page 276 for further details. Version K “SecuSafe”
- Resettable, armoured high-security
- safe lock
- • VdS tested, class 2
- • ECB·S certified according to
- EN 1300 class B
- • 10 levers
- • key retaining
- • supplied with 2 keys
- • 50 million key differs
- • more security in the event of losing
- the key – immediately resettable to a
- new key
- • locking armature protrudes 13 mm
- RESISTANCE GRADE I, FIRE RESISTANCE GRADE LFS 60
- • type tested and supervised security by ECB·S
- • certified protection against burglary according to
- EN 1143-1
- • certified fire protection according to EN 15659, as of:
- 2009, 60 minutes fire protection for paper
- • 3 walled body with armoured, fireproof insulation
- • FPC buildup (Fire Protection Concrete) insulation in body
- and door
- • special back wall construction with additional
- reinforcement.
- Advantage: low overall depth due to slim construction
- • optimum use of interior space due to slim body
- construction
- • 4 walled inset door
- • extensive reinforcement in front of bolts and locking bolts
- • 4-sided locking by strong round bolts
- • inset concealed door hinges – stylish design
- • prepared for wall and floor anchoring with fixing material
- • security plus: 2 double emergency locking systems, not
- resettable
- • convenient depth for common sized files
- • (MTD 740 + 750 = 1 shelf each, MTD 760 + 780 = 2 shelves
- each)
- • paintwork: silver metallic, special painting: possible (page 276)
- • intumescent sealing material swells and seals the door in the
- event of fire
- SecuSafe
- Resettable high security safe lock
- • Vds tested, ECB·S according to EN 1300 class 2/B
- • 10 levers
- • 50 million key differs
- • lock can be immediately reset to a new key if a key is lost
- • re-keying with an existing safe possible (Example:
- Customer buys another safe and wishes to open both
- safes with one key)
- • available with several keys on customer request (no
- waiting times)
- • for information on spare keys and additional keys
- (page 229)
- SecuTronic
- New electronics with graphic display and fingerprint
- scanner
- • ECB·S safe lock with fingerprint module EN 1300 class B
- • programmable electronic combination lock
- • 1,000,000 different codes possible
- • 1 admin code, up to 9 user codes and up to 20
- fingerprints can be programmed
- • the fingerprint scanner features "Fake Fingerprint
- Detection" to identify only live fingers. It will not identify
- fake or copied fingerprints
- • modern, precise and highly sensitive state-of-the-art
- authentication process
- • timer functions and assignment of rights
- Special painting:
- Special paint finishes are available in all RAL and
- brilliant colours.

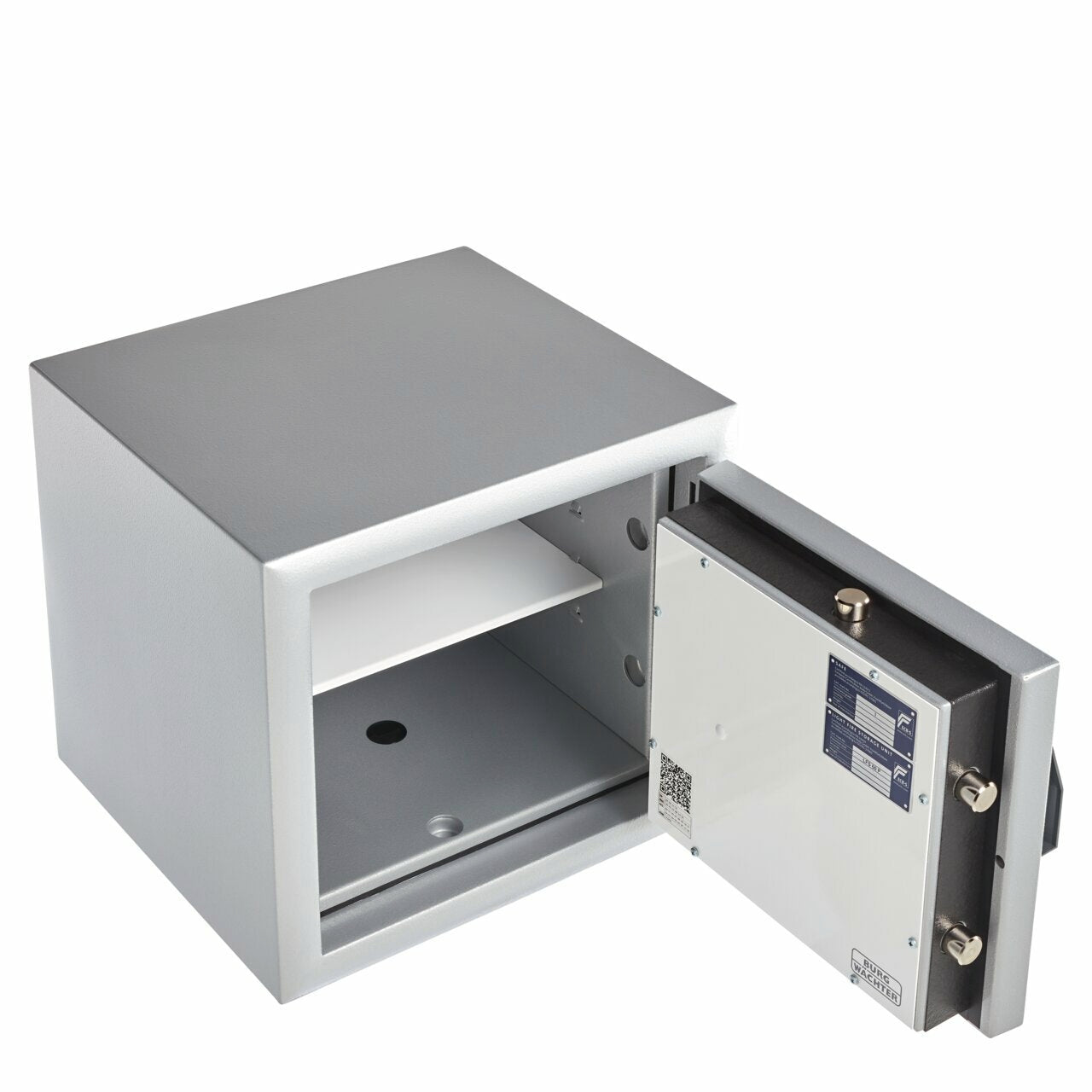

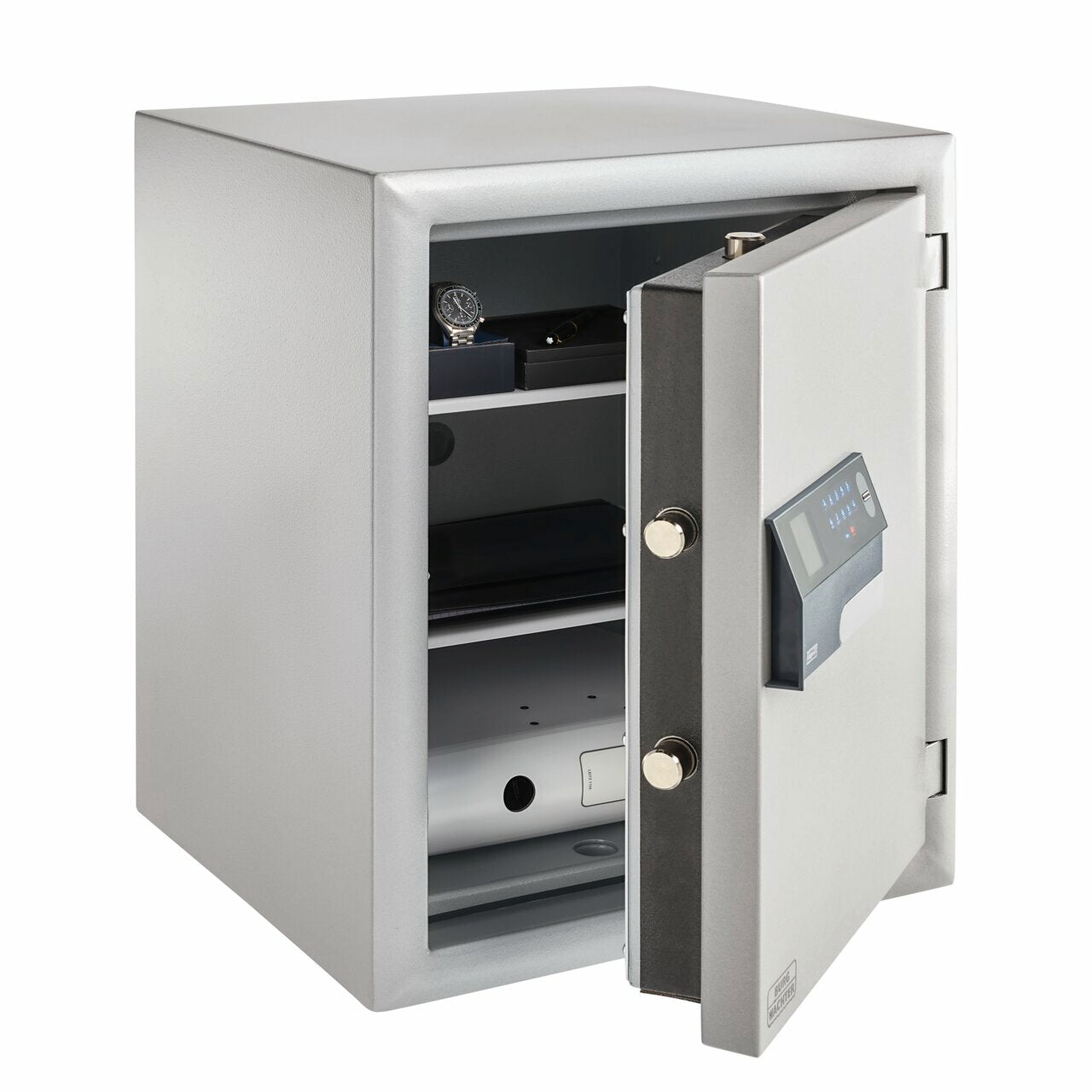

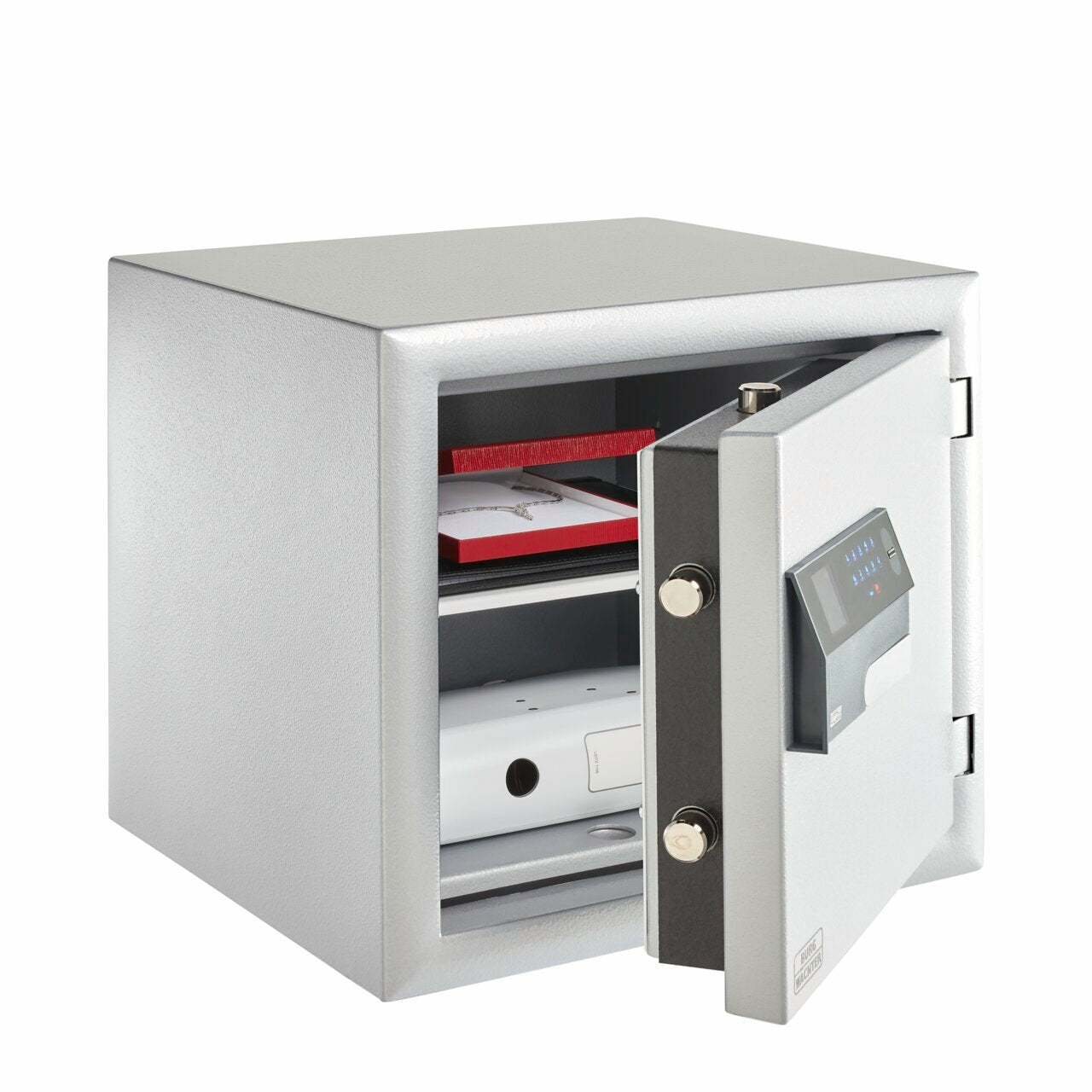

- See page 276 for further details. Version E FP “SecuTronic”
- Programmable electronic lock with
- fingerprint module
- • ECB·S certified according to class B
- • graphic display with 1 admin code,
- up to 9 user codes and up to 20
- fingerprints
- • timer functions and assignment of rights
- • incl. 4 Mignon LR 06 AA batteries
- • locking armature protrudes 20 mm
- RESISTANCE GRADE I, FIRE RESISTANCE GRADE LFS 60
- • type tested and supervised security by ECB·S
- • certified protection against burglary according to
- EN 1143-1
- • certified fire protection according to EN 15659, as of:
- 2009, 60 minutes fire protection for paper
- • 3 walled body with armoured, fireproof insulation
- • FPC buildup (Fire Protection Concrete) insulation in body
- and door
- • special back wall construction with additional
- reinforcement.
- Advantage: low overall depth due to slim construction
- • optimum use of interior space due to slim body
- construction
- • 4 walled inset door
- • extensive reinforcement in front of bolts and locking bolts
- • 4-sided locking by strong round bolts
- • inset concealed door hinges – stylish design
- • prepared for wall and floor anchoring with fixing material
- • security plus: 2 double emergency locking systems, not
- resettable
- • convenient depth for common sized files
- • (MTD 740 + 750 = 1 shelf each, MTD 760 + 780 = 2 shelves
- each)
- • paintwork: silver metallic, special painting: possible (page 276)
- • intumescent sealing material swells and seals the door in the
- event of fire
- SecuSafe
- Resettable high security safe lock
- • Vds tested, ECB·S according to EN 1300 class 2/B
- • 10 levers
- • 50 million key differs
- • lock can be immediately reset to a new key if a key is lost
- • re-keying with an existing safe possible (Example:
- Customer buys another safe and wishes to open both
- safes with one key)
- • available with several keys on customer request (no
- waiting times)
- • for information on spare keys and additional keys
- (page 229)
- SecuTronic
- New electronics with graphic display and fingerprint
- scanner
- • ECB·S safe lock with fingerprint module EN 1300 class B
- • programmable electronic combination lock
- • 1,000,000 different codes possible
- • 1 admin code, up to 9 user codes and up to 20
- fingerprints can be programmed
- • the fingerprint scanner features "Fake Fingerprint
- Detection" to identify only live fingers. It will not identify
- fake or copied fingerprints
- • modern, precise and highly sensitive state-of-the-art
- authentication process
- • timer functions and assignment of rights
- Special painting:
- Special paint finishes are available in all RAL and
- brilliant colours.
- See page 276 for further details. Version K “SecuSafe”
- Resettable, armoured high-security
- safe lock
- • VdS tested, class 2
- • ECB·S certified according to
- EN 1300 class B
- • 10 levers
- • key retaining
- • supplied with 2 keys
- • 50 million key differs
- • more security in the event of losing
- the key – immediately resettable to a
- new key
- • locking armature protrudes 13 mm
- RESISTANCE GRADE I, FIRE RESISTANCE GRADE LFS 60
- • type tested and supervised security by ECB·S
- • certified protection against burglary according to
- EN 1143-1
- • certified fire protection according to EN 15659, as of:
- 2009, 60 minutes fire protection for paper
- • 3 walled body with armoured, fireproof insulation
- • FPC buildup (Fire Protection Concrete) insulation in body
- and door
- • special back wall construction with additional
- reinforcement.
- Advantage: low overall depth due to slim construction
- • optimum use of interior space due to slim body
- construction
- • 4 walled inset door
- • extensive reinforcement in front of bolts and locking bolts
- • 4-sided locking by strong round bolts
- • inset concealed door hinges – stylish design
- • prepared for wall and floor anchoring with fixing material
- • security plus: 2 double emergency locking systems, not
- resettable
- • convenient depth for common sized files
- • (MTD 740 + 750 = 1 shelf each, MTD 760 + 780 = 2 shelves
- each)
- • paintwork: silver metallic, special painting: possible (page 276)
- • intumescent sealing material swells and seals the door in the
- event of fire
- SecuSafe
- Resettable high security safe lock
- • Vds tested, ECB·S according to EN 1300 class 2/B
- • 10 levers
- • 50 million key differs
- • lock can be immediately reset to a new key if a key is lost
- • re-keying with an existing safe possible (Example:
- Customer buys another safe and wishes to open both
- safes with one key)
- • available with several keys on customer request (no
- waiting times)
- • for information on spare keys and additional keys
- (page 229)
- SecuTronic
- New electronics with graphic display and fingerprint
- scanner
- • ECB·S safe lock with fingerprint module EN 1300 class B
- • programmable electronic combination lock
- • 1,000,000 different codes possible
- • 1 admin code, up to 9 user codes and up to 20
- fingerprints can be programmed
- • the fingerprint scanner features "Fake Fingerprint
- Detection" to identify only live fingers. It will not identify
- fake or copied fingerprints
- • modern, precise and highly sensitive state-of-the-art
- authentication process
- • timer functions and assignment of rights
- Special painting:
- Special paint finishes are available in all RAL and
- brilliant colours.
- See page 276 for further details. Version E FP “SecuTronic”
- Programmable electronic lock with
- fingerprint module
- • ECB·S certified according to class B
- • graphic display with 1 admin code,
- up to 9 user codes and up to 20
- fingerprints
- • timer functions and assignment of rights
- • incl. 4 Mignon LR 06 AA batteries
- • locking armature protrudes 20 mm
- RESISTANCE GRADE I, FIRE RESISTANCE GRADE LFS 60
- • type tested and supervised security by ECB·S
- • certified protection against burglary according to
- EN 1143-1
- • certified fire protection according to EN 15659, as of:
- 2009, 60 minutes fire protection for paper
- • 3 walled body with armoured, fireproof insulation
- • FPC buildup (Fire Protection Concrete) insulation in body
- and door
- • special back wall construction with additional
- reinforcement.
- Advantage: low overall depth due to slim construction
- • optimum use of interior space due to slim body
- construction
- • 4 walled inset door
- • extensive reinforcement in front of bolts and locking bolts
- • 4-sided locking by strong round bolts
- • inset concealed door hinges – stylish design
- • prepared for wall and floor anchoring with fixing material
- • security plus: 2 double emergency locking systems, not
- resettable
- • convenient depth for common sized files
- • (MTD 740 + 750 = 1 shelf each, MTD 760 + 780 = 2 shelves
- each)
- • paintwork: silver metallic, special painting: possible (page 276)
- • intumescent sealing material swells and seals the door in the
- event of fire
- SecuSafe
- Resettable high security safe lock
- • Vds tested, ECB·S according to EN 1300 class 2/B
- • 10 levers
- • 50 million key differs
- • lock can be immediately reset to a new key if a key is lost
- • re-keying with an existing safe possible (Example:
- Customer buys another safe and wishes to open both
- safes with one key)
- • available with several keys on customer request (no
- waiting times)
- • for information on spare keys and additional keys
- (page 229)
- SecuTronic
- New electronics with graphic display and fingerprint
- scanner
- • ECB·S safe lock with fingerprint module EN 1300 class B
- • programmable electronic combination lock
- • 1,000,000 different codes possible
- • 1 admin code, up to 9 user codes and up to 20
- fingerprints can be programmed
- • the fingerprint scanner features "Fake Fingerprint
- Detection" to identify only live fingers. It will not identify
- fake or copied fingerprints
- • modern, precise and highly sensitive state-of-the-art
- authentication process
- • timer functions and assignment of rights
- Special painting:
- Special paint finishes are available in all RAL and
- brilliant colours.
- See page 276 for further details. Version K “SecuSafe”
- Resettable, armoured high-security
- safe lock
- • VdS tested, class 2
- • ECB·S certified according to
- EN 1300 class B
- • 10 levers
- • key retaining
- • supplied with 2 keys
- • 50 million key differs
- • more security in the event of losing
- the key – immediately resettable to a
- new key
- • locking armature protrudes 13 mm
- RESISTANCE GRADE I, FIRE RESISTANCE GRADE LFS 60
- • type tested and supervised security by ECB·S
- • certified protection against burglary according to
- EN 1143-1
- • certified fire protection according to EN 15659, as of:
- 2009, 60 minutes fire protection for paper
- • 3 walled body with armoured, fireproof insulation
- • FPC buildup (Fire Protection Concrete) insulation in body
- and door
- • special back wall construction with additional
- reinforcement.
- Advantage: low overall depth due to slim construction
- • optimum use of interior space due to slim body
- construction
- • 4 walled inset door
- • extensive reinforcement in front of bolts and locking bolts
- • 4-sided locking by strong round bolts
- • inset concealed door hinges – stylish design
- • prepared for wall and floor anchoring with fixing material
- • security plus: 2 double emergency locking systems, not
- resettable
- • convenient depth for common sized files
- • (MTD 740 + 750 = 1 shelf each, MTD 760 + 780 = 2 shelves
- each)
- • paintwork: silver metallic, special painting: possible (page 276)
- • intumescent sealing material swells and seals the door in the
- event of fire
- SecuSafe
- Resettable high security safe lock
- • Vds tested, ECB·S according to EN 1300 class 2/B
- • 10 levers
- • 50 million key differs
- • lock can be immediately reset to a new key if a key is lost
- • re-keying with an existing safe possible (Example:
- Customer buys another safe and wishes to open both
- safes with one key)
- • available with several keys on customer request (no
- waiting times)
- • for information on spare keys and additional keys
- (page 229)
- SecuTronic
- New electronics with graphic display and fingerprint
- scanner
- • ECB·S safe lock with fingerprint module EN 1300 class B
- • programmable electronic combination lock
- • 1,000,000 different codes possible
- • 1 admin code, up to 9 user codes and up to 20
- fingerprints can be programmed
- • the fingerprint scanner features "Fake Fingerprint
- Detection" to identify only live fingers. It will not identify
- fake or copied fingerprints
- • modern, precise and highly sensitive state-of-the-art
- authentication process
- • timer functions and assignment of rights
- Special painting:
- Special paint finishes are available in all RAL and
- brilliant colours.
- See page 276 for further details. Version E FP “SecuTronic”
- Programmable electronic lock with
- fingerprint module
- • ECB·S certified according to class B
- • graphic display with 1 admin code,
- up to 9 user codes and up to 20
- fingerprints
- • timer functions and assignment of rights
- • incl. 4 Mignon LR 06 AA batteries
- • locking armature protrudes 20 mm
- RESISTANCE GRADE I, FIRE RESISTANCE GRADE LFS 60
- • type tested and supervised security by ECB·S
- • certified protection against burglary according to
- EN 1143-1
- • certified fire protection according to EN 15659, as of:
- 2009, 60 minutes fire protection for paper
- • 3 walled body with armoured, fireproof insulation
- • FPC buildup (Fire Protection Concrete) insulation in body
- and door
- • special back wall construction with additional
- reinforcement.
- Advantage: low overall depth due to slim construction
- • optimum use of interior space due to slim body
- construction
- • 4 walled inset door
- • extensive reinforcement in front of bolts and locking bolts
- • 4-sided locking by strong round bolts
- • inset concealed door hinges – stylish design
- • prepared for wall and floor anchoring with fixing material
- • security plus: 2 double emergency locking systems, not
- resettable
- • convenient depth for common sized files
- • (MTD 740 + 750 = 1 shelf each, MTD 760 + 780 = 2 shelves
- each)
- • paintwork: silver metallic, special painting: possible (page 276)
- • intumescent sealing material swells and seals the door in the
- event of fire
- SecuSafe
- Resettable high security safe lock
- • Vds tested, ECB·S according to EN 1300 class 2/B
- • 10 levers
- • 50 million key differs
- • lock can be immediately reset to a new key if a key is lost
- • re-keying with an existing safe possible (Example:
- Customer buys another safe and wishes to open both
- safes with one key)
- • available with several keys on customer request (no
- waiting times)
- • for information on spare keys and additional keys
- (page 229)
- SecuTronic
- New electronics with graphic display and fingerprint
- scanner
- • ECB·S safe lock with fingerprint module EN 1300 class B
- • programmable electronic combination lock
- • 1,000,000 different codes possible
- • 1 admin code, up to 9 user codes and up to 20
- fingerprints can be programmed
- • the fingerprint scanner features "Fake Fingerprint
- Detection" to identify only live fingers. It will not identify
- fake or copied fingerprints
- • modern, precise and highly sensitive state-of-the-art
- authentication process
- • timer functions and assignment of rights
- Special painting:
- Special paint finishes are available in all RAL and
- brilliant colours.
- See page 276 for further details. Version K “SecuSafe”
- Resettable, armoured high-security
- safe lock
- • VdS tested, class 2
- • ECB·S certified according to
- EN 1300 class B
- • 10 levers
- • key retaining
- • supplied with 2 keys
- • 50 million key differs
- • more security in the event of losing
- the key – immediately resettable to a
- new key
- • locking armature protrudes 13 mm
Number of batteries
4
Number of potential users
10 codes + 20 fingerprints
Product outer width
500 mm
Product outer height
380 mm
Product outer depth
462 mm
Verpackungseinheit
1.00 Stk
Weight
92,000
kg
Battery type
Mignon LR06 AA
Main material
Steel
Incl. fixing material
yes
Number of shelves
1.00
Fire protection
LFS 60 P - 60 min. for paper
History function
2000 events
Interior width mm
372,00 mm
Interior height mm
255,00 mm
Interior depth mm
300,00 mm
No. of max. permitted weapons
unlimited
Non-binding insurance guidelines commercial*
20.000 €
Non-binding insurance guidelines private*
65.000 €
Emergency lock
no
File depth
yes
Door opening HxW in mm
255*337
Gun cabinet for short weapons
yes
Gun cabinet for long weapons
no
Storage of narcotics
Hospital subunits (departments or similar), doctors' practices, old people's and nursing homesHospital pharmacies, public pharmacies
* The sums insured stated are non-binding guide values for Germany. The sums insured should always be agreed with the insurance company.
Packaging width mm
535,00 mm
Packaging depth mm
535,00 mm
Type of packaging (carton, blister)
colour carton
Type of fixing material
M10x100mm; Härte 109; Dübel 14mm
Matching key blank
OUTDATED
Wall thickness right
65,00 mm
Wall thickness left
65,00 mm
Wall thickness top
62,00 mm
Wall thickness buttom
62,00 mm
Wall thickness rear
47,00 mm
Optional fixing points
1x Boden + 1x Rückwand
Door thickness
104,00 mm
Protrusion locking system
20,00 mm
Door height
270,00 mm
Updateable firmware
yes
History function
2000 events
Locking bolt
Ø 28 mm
Number of potential users
Number of keys
Product outer width
500 mm
Product outer height
380 mm
Product outer depth
462 mm
Verpackungseinheit
1,00 Stk
Weight
92,000
kg
Main material
Steel
Incl. fixing material
yes
Number of shelves
1.00
Fire protection
LFS 60 P - 60 min. for paper
History function
No
Interior width mm
372,00 mm
Interior height mm
255,00 mm
Interior depth mm
300,00 mm
No. of max. permitted weapons
unlimited
Non-binding insurance guidelines commercial*
20.000 €
Non-binding insurance guidelines private*
65.000 €
Emergency lock
no
File depth
yes
Door opening HxW in mm
255*337
Gun cabinet for short weapons
yes
Gun cabinet for long weapons
no
Storage of narcotics
Hospital subunits (departments or similar), doctors' practices, old people's and nursing homesHospital pharmacies, public pharmacies
* The sums insured stated are non-binding guide values for Germany. The sums insured should always be agreed with the insurance company.
Packaging width mm
535,00 mm
Packaging depth mm
535,00 mm
Type of packaging (carton, blister)
colour carton
Type of fixing material
; M10x100mm; Härte 109; Dübel 14mm;
Matching key blank
Set 55-124
Wall thickness right
65,00 mm
Wall thickness left
65,00 mm
Wall thickness top
62,00 mm
Wall thickness buttom
62,00 mm
Wall thickness rear
47,00 mm
Optional fixing points
1x Boden + 1x Rückwand
Door thickness
104,00 mm
Protrusion locking system
13,00 mm
Door height
270,00 mm
Updateable firmware
no
History function
No
Locking bolt
Ø 28 mm
Number of batteries
4
Number of potential users
10 codes + 20 fingerprints
Product outer width
500 mm
Product outer height
470 mm
Product outer depth
462 mm
Verpackungseinheit
1.00 Stk
Weight
104,000
kg
Battery type
Mignon LR06 AA
Main material
Steel
Incl. fixing material
yes
Number of shelves
1.00
Fire protection
LFS 60 P - 60 min. for paper
History function
2000 events
Interior width mm
372,00 mm
Interior height mm
345,00 mm
Interior depth mm
300,00 mm
No. of max. permitted weapons
unlimited
Non-binding insurance guidelines commercial*
Die angegebenen Versicherungssummen sind unverbindliche Richtwerte. Wegen unterschiedlicher Versicherungsbedingungen ist immer eine Abstimmung mit Ihrer Versicherung erforderlich.20.000 €
Non-binding insurance guidelines private*
Die angegebenen Versicherungssummen sind unverbindliche Richtwerte. Wegen unterschiedlicher Versicherungsbedingungen ist immer eine Abstimmung mit Ihrer Versicherung erforderlich.65.000 €
Emergency lock
no
File depth
yes
Door opening HxW in mm
345*337
Gun cabinet for short weapons
yes
Gun cabinet for long weapons
no
Storage of narcotics
Hospital subunits (departments or similar), doctors' practices, old people's and nursing homesHospital pharmacies, public pharmacies
* The sums insured stated are non-binding guide values for Germany. The sums insured should always be agreed with the insurance company.
Packaging width mm
535,00 mm
Packaging depth mm
535,00 mm
Type of packaging (carton, blister)
colour carton
Type of fixing material
M10x100mm; Härte 109; Dübel 14mm
Matching key blank
OUTDATED
Wall thickness right
65,00 mm
Wall thickness left
65,00 mm
Wall thickness top
62,00 mm
Wall thickness buttom
62,00 mm
Wall thickness rear
47,00 mm
Optional fixing points
1x Boden + 1x Rückwand
Door thickness
104,00 mm
Protrusion locking system
20,00 mm
Door height
361,00 mm
Updateable firmware
yes
History function
2000 events
Locking bolt
Ø 28 mm
Number of potential users
Number of keys
Product outer width
500 mm
Product outer height
470 mm
Product outer depth
462 mm
Verpackungseinheit
1,00 Stk
Weight
104,000
kg
Main material
Steel
Incl. fixing material
yes
Number of shelves
1.00
Fire protection
LFS 60 P - 60 min. for paper
History function
No
Interior width mm
372,00 mm
Interior height mm
345,00 mm
Interior depth mm
300,00 mm
No. of max. permitted weapons
unlimited
Non-binding insurance guidelines commercial*
Die angegebenen Versicherungssummen sind unverbindliche Richtwerte. Wegen unterschiedlicher Versicherungsbedingungen ist immer eine Abstimmung mit Ihrer Versicherung erforderlich.20.000 €
Non-binding insurance guidelines private*
Die angegebenen Versicherungssummen sind unverbindliche Richtwerte. Wegen unterschiedlicher Versicherungsbedingungen ist immer eine Abstimmung mit Ihrer Versicherung erforderlich.65.000 €
Emergency lock
no
File depth
yes
Door opening HxW in mm
345*337
Gun cabinet for short weapons
yes
Gun cabinet for long weapons
no
Storage of narcotics
Hospital subunits (departments or similar), doctors' practices, old people's and nursing homesHospital pharmacies, public pharmacies
* The sums insured stated are non-binding guide values for Germany. The sums insured should always be agreed with the insurance company.
Packaging width mm
535,00 mm
Packaging depth mm
535,00 mm
Type of packaging (carton, blister)
colour carton
Type of fixing material
; M10x100mm; Härte 109; Dübel 14mm;
Matching key blank
Set 55-124
Wall thickness right
65,00 mm
Wall thickness left
65,00 mm
Wall thickness top
62,00 mm
Wall thickness buttom
62,00 mm
Wall thickness rear
47,00 mm
Optional fixing points
1x Boden + 1x Rückwand
Door thickness
104,00 mm
Protrusion locking system
13,00 mm
Door height
361,00 mm
Updateable firmware
no
History function
No
Locking bolt
Ø 28 mm
Number of batteries
4
Number of potential users
10 codes + 20 fingerprints
Product outer width
500 mm
Product outer height
625 mm
Product outer depth
462 mm
Verpackungseinheit
1.00 Stk
Weight
132,000
kg
Battery type
Mignon LR06 AA
Main material
Steel
Incl. fixing material
yes
Number of shelves
2.00
Fire protection
LFS 60 P - 60 min. for paper
History function
2000 events
Interior width mm
372,00 mm
Interior height mm
500,00 mm
Interior depth mm
300,00 mm
No. of max. permitted weapons
unlimited
Non-binding insurance guidelines commercial*
Die angegebenen Versicherungssummen sind unverbindliche Richtwerte. Wegen unterschiedlicher Versicherungsbedingungen ist immer eine Abstimmung mit Ihrer Versicherung erforderlich.20.000 €
Non-binding insurance guidelines private*
Die angegebenen Versicherungssummen sind unverbindliche Richtwerte. Wegen unterschiedlicher Versicherungsbedingungen ist immer eine Abstimmung mit Ihrer Versicherung erforderlich.65.000 €
Emergency lock
no
File depth
yes
Door opening HxW in mm
500*337
Gun cabinet for short weapons
yes
Gun cabinet for long weapons
no
Storage of narcotics
Hospital subunits (departments or similar), doctors' practices, old people's and nursing homesHospital pharmacies, public pharmacies
* The sums insured stated are non-binding guide values for Germany. The sums insured should always be agreed with the insurance company.
Packaging width mm
535,00 mm
Packaging depth mm
535,00 mm
Type of packaging (carton, blister)
colour carton
Type of fixing material
M10x100mm; Härte 109; Dübel 14mm
Matching key blank
OUTDATED
Wall thickness right
65,00 mm
Wall thickness left
65,00 mm
Wall thickness top
62,00 mm
Wall thickness buttom
62,00 mm
Wall thickness rear
47,00 mm
Optional fixing points
1x Boden + 1x Rückwand
Door thickness
104,00 mm
Protrusion locking system
20,00 mm
Door height
518,00 mm
Updateable firmware
yes
History function
2000 events
Locking bolt
Ø 28 mm
Number of potential users
Number of keys
Product outer width
500 mm
Product outer height
625 mm
Product outer depth
462 mm
Verpackungseinheit
1,00 Stk
Weight
132,000
kg
Main material
Steel
Incl. fixing material
yes
Number of shelves
1.00
Fire protection
LFS 60 P - 60 min. for paper
History function
No
Interior width mm
372,00 mm
Interior height mm
500,00 mm
Interior depth mm
300,00 mm
No. of max. permitted weapons
unlimited
Non-binding insurance guidelines commercial*
20.000 €
Non-binding insurance guidelines private*
65.000 €
Emergency lock
no
File depth
yes
Door opening HxW in mm
500*337
Gun cabinet for short weapons
yes
Gun cabinet for long weapons
no
Storage of narcotics
Hospital subunits (departments or similar), doctors' practices, old people's and nursing homesHospital pharmacies, public pharmacies
* The sums insured stated are non-binding guide values for Germany. The sums insured should always be agreed with the insurance company.
Packaging width mm
535,00 mm
Packaging depth mm
535,00 mm
Type of packaging (carton, blister)
colour carton
Type of fixing material
; M10x100mm; Härte 109; Dübel 14mm;
Matching key blank
Set 55-124
Wall thickness right
65,00 mm
Wall thickness left
65,00 mm
Wall thickness top
62,00 mm
Wall thickness buttom
62,00 mm
Wall thickness rear
47,00 mm
Optional fixing points
1x Boden + 1x Rückwand
Door thickness
104,00 mm
Protrusion locking system
13,00 mm
Door height
518,00 mm
Updateable firmware
no
History function
No
Locking bolt
Ø 28 mm
Number of batteries
4
Number of potential users
10 codes + 20 fingerprints
Product outer width
500 mm
Product outer height
985 mm
Product outer depth
462 mm
Verpackungseinheit
1.00 Stk
Weight
186,000
kg
Battery type
Mignon LR06 AA
Main material
Steel
Incl. fixing material
yes
Number of shelves
2.00
Fire protection
LFS 60 P - 60 min. for paper
History function
2000 events
Interior width mm
372,00 mm
Interior height mm
860,00 mm
Interior depth mm
300,00 mm
No. of max. permitted weapons
unlimited
Non-binding insurance guidelines commercial*
Die angegebenen Versicherungssummen sind unverbindliche Richtwerte. Wegen unterschiedlicher Versicherungsbedingungen ist immer eine Abstimmung mit Ihrer Versicherung erforderlich.20.000 €
Non-binding insurance guidelines private*
Die angegebenen Versicherungssummen sind unverbindliche Richtwerte. Wegen unterschiedlicher Versicherungsbedingungen ist immer eine Abstimmung mit Ihrer Versicherung erforderlich.65.000 €
Emergency lock
no
File depth
yes
Door opening HxW in mm
860*337
Gun cabinet for short weapons
yes
Gun cabinet for long weapons
no
Storage of narcotics
Hospital subunits (departments or similar), doctors' practices, old people's and nursing homesHospital pharmacies, public pharmacies
* The sums insured stated are non-binding guide values for Germany. The sums insured should always be agreed with the insurance company.
Packaging width mm
530,00 mm
Packaging depth mm
530,00 mm
Type of packaging (carton, blister)
colour carton
Type of fixing material
M10x100mm; Härte 109; Dübel 14mm
Matching key blank
OUTDATED
Wall thickness right
65,00 mm
Wall thickness left
65,00 mm
Wall thickness top
62,00 mm
Wall thickness buttom
62,00 mm
Wall thickness rear
47,00 mm
Optional fixing points
1x Boden + 1x Rückwand
Door thickness
104,00 mm
Protrusion locking system
20,00 mm
Door height
878,00 mm
Updateable firmware
yes
History function
2000 events
Locking bolt
Ø 28 mm
Number of potential users
Number of keys
Product outer width
500 mm
Product outer height
985 mm
Product outer depth
462 mm
Verpackungseinheit
1,00 Stk
Weight
186,000
kg
Main material
Steel
Incl. fixing material
yes
Number of shelves
2.00
Fire protection
LFS 60 P - 60 min. for paper
History function
No
Interior width mm
372,00 mm
Interior height mm
860,00 mm
Interior depth mm
300,00 mm
No. of max. permitted weapons
unlimited
Non-binding insurance guidelines commercial*
Die angegebenen Versicherungssummen sind unverbindliche Richtwerte. Wegen unterschiedlicher Versicherungsbedingungen ist immer eine Abstimmung mit Ihrer Versicherung erforderlich.20.000 €
Non-binding insurance guidelines private*
Die angegebenen Versicherungssummen sind unverbindliche Richtwerte. Wegen unterschiedlicher Versicherungsbedingungen ist immer eine Abstimmung mit Ihrer Versicherung erforderlich.65.000 €
Emergency lock
no
File depth
yes
Door opening HxW in mm
860*337
Gun cabinet for short weapons
yes
Gun cabinet for long weapons
no
Storage of narcotics
Hospital subunits (departments or similar), doctors' practices, old people's and nursing homesHospital pharmacies, public pharmacies
* The sums insured stated are non-binding guide values for Germany. The sums insured should always be agreed with the insurance company.
Packaging width mm
530,00 mm
Packaging depth mm
530,00 mm
Type of packaging (carton, blister)
colour carton
Type of fixing material
; M10x100mm; Härte 109; Dübel 14mm;
Matching key blank
Set 55-124
Wall thickness right
65,00 mm
Wall thickness left
65,00 mm
Wall thickness top
62,00 mm
Wall thickness buttom
62,00 mm
Wall thickness rear
47,00 mm
Optional fixing points
1x Boden + 1x Rückwand
Door thickness
104,00 mm
Protrusion locking system
13,00 mm
Door height
878,00 mm
Updateable firmware
no
History function
No
Locking bolt
Ø 28 mm
Videos
Instructions
Anleitungen_BW_TRESORE_ANL_MontageMTD---Karat---OfficeLine---Royal_2024-11-13_22-20.pdf Anleitungen_BW_BD_TRSE12HFP_Komfort_C3_B6ffnung_A4_RZ06_DRUCK_2024-11-13_22-20.pdf
Data sheetsDatenblatt_MTD_20740_20E_20FP_4003482414408_DE_datasheet_2024-11-13_22-20.pdf
Declaration of ConformityCE-Zertifikat_BW_Tresore_CE_Diplomat_202020_2024-11-13_22-20.pdf
Videos
Instructions
Anleitungen_BW_TRESORE_ANL_UmstellTRS-22_2024-11-13_22-20.pdf Anleitungen_BW_TRESORE_ANL_MontageMTD---Karat---OfficeLine---Royal_2024-11-13_22-20.pdf
Data sheetsDatenblatt_MTD_20740_20K_4003482414002_DE_datasheet_2024-11-13_22-20.pdf
Videos
Instructions
Anleitungen_BW_TRESORE_ANL_MontageMTD---Karat---OfficeLine---Royal_2024-11-13_22-20.pdf Anleitungen_BW_BD_TRSE12HFP_Komfort_C3_B6ffnung_A4_RZ06_DRUCK_2024-11-13_22-20.pdf
Data sheetsDatenblatt_MTD_20750_20E_20FP_4003482414507_DE_datasheet_2024-11-13_22-20.pdf
Declaration of ConformityCE-Zertifikat_BW_Tresore_CE_Diplomat_202020_2024-11-13_22-20.pdf
Videos
Instructions
Anleitungen_BW_TRESORE_ANL_UmstellTRS-22_2024-11-13_22-20.pdf Anleitungen_BW_TRESORE_ANL_MontageMTD---Karat---OfficeLine---Royal_2024-11-13_22-20.pdf
Data sheetsDatenblatt_MTD_20750_20K_4003482414101_DE_datasheet_2024-11-13_22-20.pdf
Videos
Instructions
Anleitungen_BW_TRESORE_ANL_MontageMTD---Karat---OfficeLine---Royal_2024-11-13_22-20.pdf Anleitungen_BW_BD_TRSE12HFP_Komfort_C3_B6ffnung_A4_RZ06_DRUCK_2024-11-13_22-20.pdf
Data sheetsDatenblatt_MTD_20760_20E_20FP_4003482414606_DE_datasheet_2024-11-13_22-20.pdf
Declaration of ConformityCE-Zertifikat_BW_Tresore_CE_Diplomat_202020_2024-11-13_22-20.pdf
Videos
Instructions
Anleitungen_BW_TRESORE_ANL_UmstellTRS-22_2024-11-13_22-20.pdf Anleitungen_BW_TRESORE_ANL_MontageMTD---Karat---OfficeLine---Royal_2024-11-13_22-20.pdf
Data sheetsDatenblatt_MTD_20760_20K_4003482414200_DE_datasheet_2024-11-13_22-20.pdf
Videos
Instructions
Anleitungen_BW_TRESORE_ANL_MontageMTD---Karat---OfficeLine---Royal_2024-11-13_22-20.pdf Anleitungen_BW_BD_TRSE12HFP_Komfort_C3_B6ffnung_A4_RZ06_DRUCK_2024-11-13_22-20.pdf
Data sheetsDatenblatt_MTD_20780_20E_20FP_4003482414705_DE_datasheet_2024-11-13_22-20.pdf
Declaration of ConformityCE-Zertifikat_BW_Tresore_CE_Diplomat_202020_2024-11-13_22-20.pdf
Properties | Recommendations for use
Properties | Recommendations for use
Properties | Recommendations for use
Properties | Recommendations for use
Properties | Recommendations for use
Properties | Recommendations for use
Properties | Recommendations for use
Properties | Recommendations for use
Other products of the category
Accessories and spare parts
Access Denied
IMPORTANT! If you’re a store owner, please make sure you have Customer accounts enabled in your Store Admin, as you have customer based locks set up with EasyLockdown app. Enable Customer Accounts
