4056843001496-1-BURG-WÄCHTER | BURG-GUARD
4056843001496

Netzwerkkameras-IP Dome Kameras | BWNC-442FEIF-G2

BWNC-442FEIF-G2

SKU: 4056843001496

Version:

Version

Quantity: pc
Material number
500149
Packaging units
1
Type
IP-Tag/Nacht IR Kuppelkamera
Max. Image resolution [pixels]
4MP (2688x1520)
Edge recording
NAS(NFS), Lokal auf dem PC, Micro SD Karte,FTP
Imaging sensor
1/3" Progressive Scan CMOS
Light sensitivity [lux]
0 Lux, F1.4 (IR an); 0,005 Lux Farbe F1.4
Aperture
F1.4
Video codec
AI H.264, H.264+, AI H.265, H.265+, MJPEG(Substream)
Viewing angle vertical
54°
Viewing angle (horizontal)
102°
Image sensor (real image)
progressive scan CMOS
Shutter
1/3 - 1/100.000
IR cut filter
Yes
Aperture control
automaticallymanual
Max. Frame rate
25/30 @ 4MP
Bit rates control
CBRVBR
Title overlay
Ja
Image mirroring vertical
Yes
Image mirroring horizontal
Yes
Zoom (optical / digital)
1x / 16x
Lens type
Fixed focal length
Lens Focal length
2,8mm
D-O-R-I max.
63,6m - 25,4m - 12,7m - 6,4m
Minimum object distance
0,7m
I/O switching contacts
0 / 0
Audio inputs/outputs
Build in Mikrofon
Integrated loudspeaker
No
Ethernet port
RJ-45
Ethernet standards
10/100Base-T
PoE Standard
IEEE802.3af
Max. Power consumption (watts)
7,9 (mit aktivem IR)
ePoE / Long-Range PoE
Nein
Long Range PoE
Nein
Maximum cable length
typisch: max. 100m
Spotlight range [m]
50
LED wavelength
850 nm (IR)
Headlight range
50
Headlight dimming
Yes
Day/night changeover
Yes
Noise reduction
2DNR3DNR
Translation missing: en.technical_info_table.products.verstärkungsregelung
Yes
Private zones
Ja, 4 Zonen
Region of Interest (ROI)
4 Zonen
Backlight compensation
120dB TrueWDRBLCHLCAI SSASSA
Change of scene
Yes
Watermark
Yes
Safety functions
HTTPS, SSL, IP/MAC Filter, Video Verschlüsselung, Rechteverwaltung, Funktion deaktivieren
Sabotage alarm
Ja
Alarm management
HTTP, FTP, SMTP, ONVIF,NAS(NFS)
ANR (Automatic Network Reproduction)
Ja (für Aufnahmen)
Translation missing: en.technical_info_table.products.unterstützebrowser
EDGE(Internet Explorer 11), Chrome, Firefox, und mehr
Bewegungserkenunng
Yes
Motion detection
Yes
Video analysis (IVA)
Videoanalyse
Tripwire (IVA)
Yes
Zone monitoring (IVA)
Yes
ONVIF Motion
Yes
Camera setting
Webinterface, CGI, App, VMS
Communication method
Unicast / Multicast / RTSP / RTMP / HTTP / UDP / TCP
Number of video streams
3 (1x Main, 2x Sub)
ONVIF
ONVIF Profile S, G, T
Supported software
BURGvms, BURG-IP-CVI-VMS, NUUO Mainconsole, Diverse VMS
Supported protocols
HTTP,HTTPS,FTP,TCP,UDP, DHCP, SSH,NTP,ONVIF...
Supported software
ONVIF, PSIA, CGI
P2P support
Yes
smartphone app
BURGcam PRO
Cloud service
Yes
Mounting type
Wand-, Decken- und Mastmontage
Protection classes
IP 67
Operating voltage
=12 VDC (+/-25%), PoE (.af)
Operating temperature
-40ºC ~60ºC
Heating
No
Housing type
Metall
Manual language
DE
SD card slot
Ja, max. 256GB (optional)
Packaging units
1
Active image elements
2688(H) x 1520(V)
White balance
Auto; Natural; Street light; Outdoor; Manual
Audio codec
G.711a / G.711Mu / AAC / G.726
Adjustment possibility
Kugelkopf
Max. Number of users
10
Signal/Noise ratio
> 56 dB
Housing colour
Weiß

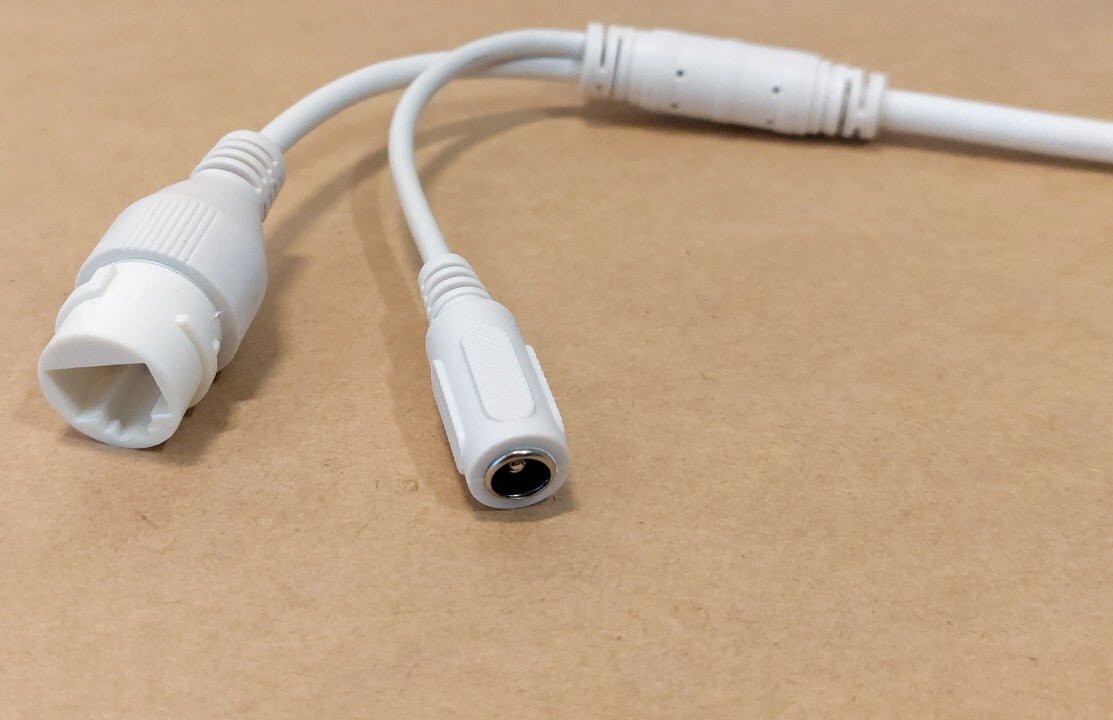

Plug type
DC-Buchse
Dimensions diameter [mm]
93.6 mm × 106.0 mm
Weight
0,5 kg
Storage temperature
0 bis +60
Relative humidity
Bis 95, nicht kondensierend
Lieferumfang
Bohrlochschablone, Spritwasserschutz für LAN-Kabel
Special features
AI H.265, AI IVA, TrueWDR(120dB), QUSearch fähig
Note
Eine SD-Karte ist nicht im Lieferumfang enthalten. Die Reichweite der IR- Strahler ist stark abhängig vom Einsatzort und von der Umgebung. Stark absorbierende Flächen, wie z.B. dunkle raue Strukturen (Boden, Rasen, Asphalt) können zu einer deutlichen Verringerung der maximalen Reichweite führen.
Marking
CE

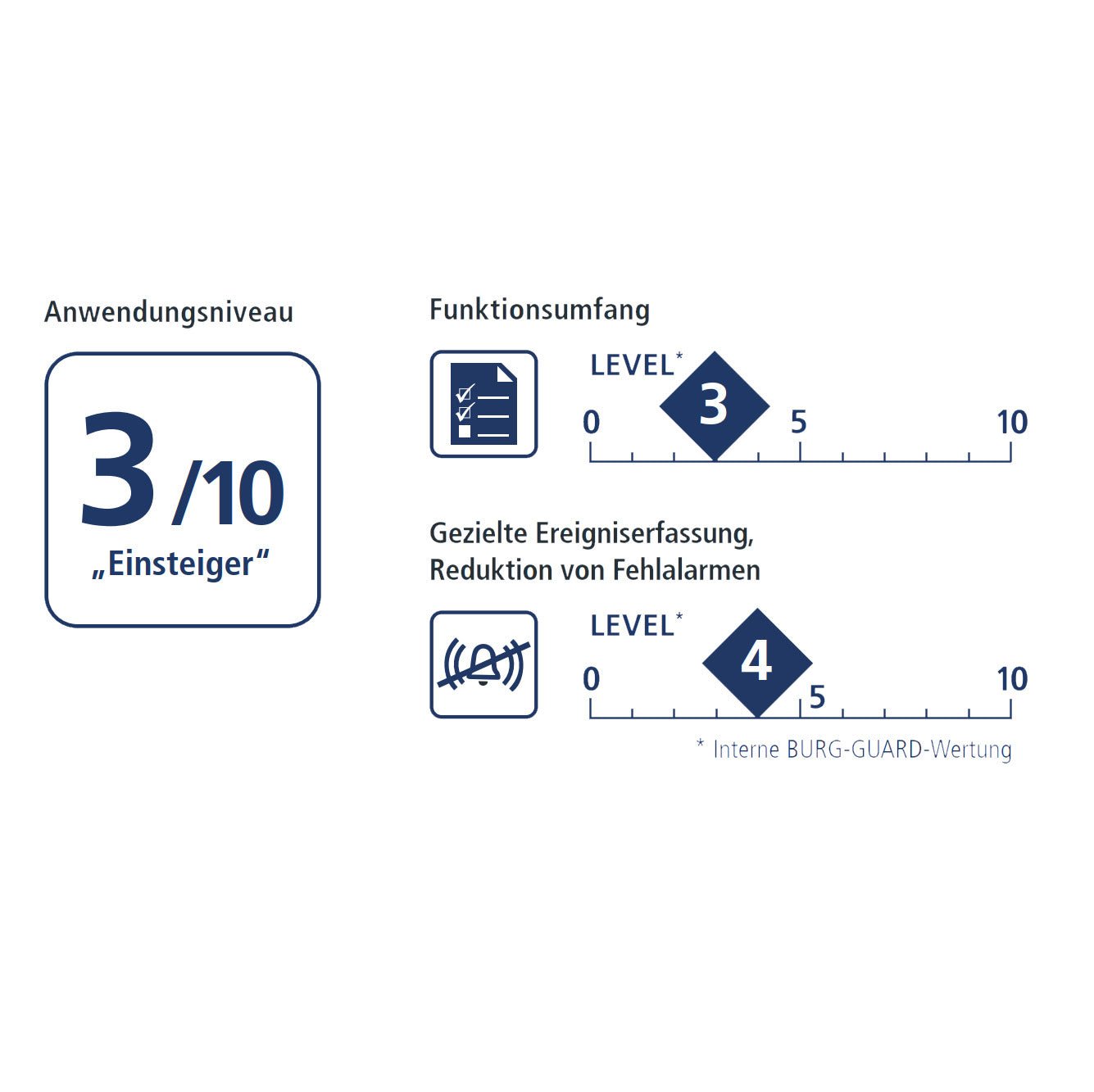

Properties | Recommendations for use

pictogram-1 pictogram-2 pictogram-3

Accessories and spare parts

SNPS-12D2
SNCA-PM-4661
SNCA-WM-4644
SNCA-MK-4533
SNCA-MK-4531-E
SNCA-MK-106
