BWnet-PoE-12V
BWnet-PoE-12V
Version:
Version
Quantity:
pc

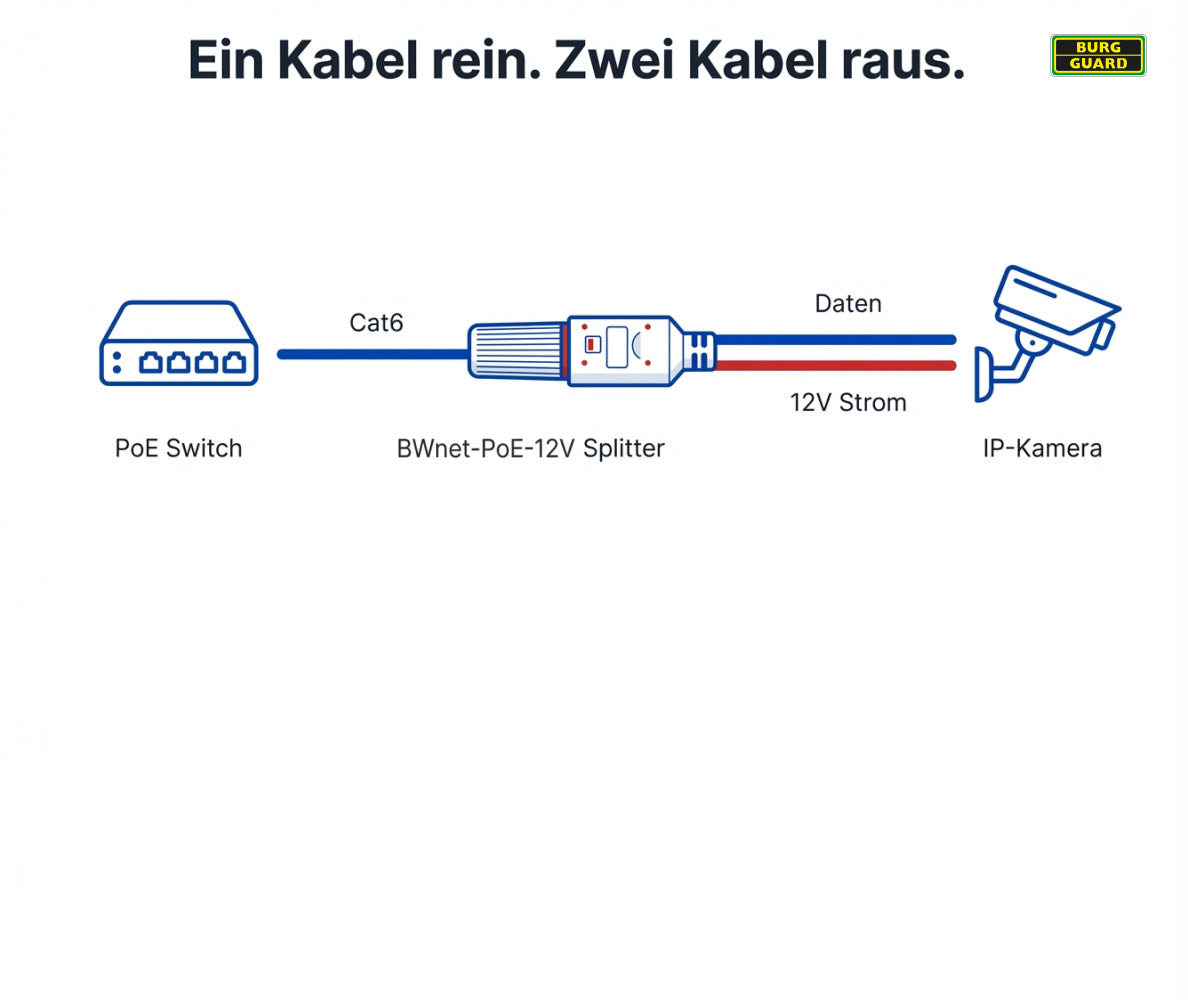

Der BWNET-POE-12V Keyboard ist ein DC48V PoE auf =12Vdc Splitter, der es ermöglicht auch nicht PoE fähige Systeme an einem af/at PoE Switch zu betreiben, ohne dass zusätzliche Netzteile benötigt werden.
PoE .af/.at auf =12Vdc Konverter
- getrennte Spanungs und Datenausgabe
- Ausgang: DC 12 V / 1 A
- Ausgangsleistung: max. 12W
- Standard: IEEE 802.3.at/.af kompatibel
- Datenrate: 10/100 Mbps
- Schnittstellen: RJ45 (LAN/PoE), DC-Stecker 5.5×2.1 mm
- Eingangsspannung: DC 44–57 V
- Pin-Belegung:
- Power: 1/2(+), 3/6(–) oder 4/5(+), 7/8(–)
- Data: 1/2(+), 3/6(–)
Material number
586039
Packaging units
1
Type
PoE Splitter
Ethernet port
RJ-45
Number of Ethernet ports
1
Transmission rate network
100Mbps
Ethernet speed
10/100
Max. Transmission range
100m
Bandwidth [Mbit/s]
100Mbps
PoE Standard
IEEE802.3af/at
Max. PoE output power
12
PoE (Power over Ethernet)
1
Number of PoE ports
1
Max. Power consumption (watts)
13
ePoE / Long-Range PoE
Nein
Long Range PoE
Nein
POE max. power consumption
13
Integrated web interface
No
Manageable / Manageable
No
Ausgangsspannung
12
Fan
No
Operating voltage
=44-57Vdc
Operating temperature
–10 °C to +50 °C
Housing type
Kunststoff
Packaging units
1
Design
Adapter
Noise emission [db]
-
Communication standards
IEEE 802.3
QoS
No
Housing design
Kunststoff
Cable type
Netzwerk
Lieferumfang
1 Stk.
Special features
Modul
Note
Nur Kompatibel mit af/at Systemen
Marking
CE
