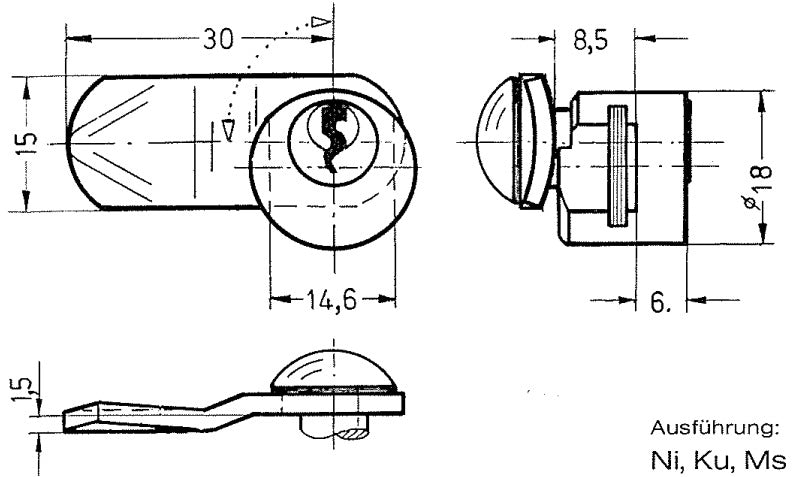

Universal cylinder ZS 80 with three boltsThe universal cylinder ZS 80 is made of high-strength and additionally nickel-plated die-cast zinc. The cylinder can be used in many areas.Opening and closing the disc cylinder is particularly easy with the aid of one of the two reversible keys supplied. The bolt can be adjusted at a 90-degree angle. The universal cylinder ZS 80 is designed for a material thickness of 1-2 mm.
The right cylinder for your applicationThe cylinder ZS 80 with practical clamp spring is equipped with three different bolts as standard. So you have the right solution for your individual application. During installation, make sure that the key remains in the lock until after installation is complete.
• made of high-tensile, nickel-plated die-cast zinc
• disk cylinder with reversible key
• bolt adjustable in 90° angle
• WS 80-82: with clamping spring
